StarTech AS445C-POE-INJECTOR PoE Adapter 2.5Gbps 5-Port Ethernet

Experience high-speed and efficient network connectivity with the StarTech AS445C-POE-INJECTOR PoE Adapter. This versatile 5-port Ethernet adapter allows you to supply power and data to up to four remote Powered Devices (PDs) simultaneously. With its PoE/PoE+/PoE++ capabilities, this injector ensures seamless compatibility with a wide range of Powered Devices, making it ideal for various applications such as IP cameras, access control devices, wireless access points, and more.

Features:

• Multiport PoE Injector supporting IEEE 802.3af, 802.3at, and 802.3bt standards
• Delivers up to 52V DC and 95Watts of power
• Supports multigigabit speeds of 5Gbps, 2.5Gbps, 1Gbps, 100Mbps, and 10Mbps
• Flexible power output options with Power Output Switch
• Streamlined cable management for a clean and organized setup
• Level-4 ESD protection for enhanced device safety and reduced EMI
• Increased bandwidth up to 5Gbps with NBASE-T technology

Specifications:

• Operating relative humidity (H-H): 5 - 95
• Storage temperature (T-T): -10 - 70
• Operating temperature (T-T): 0 - 50

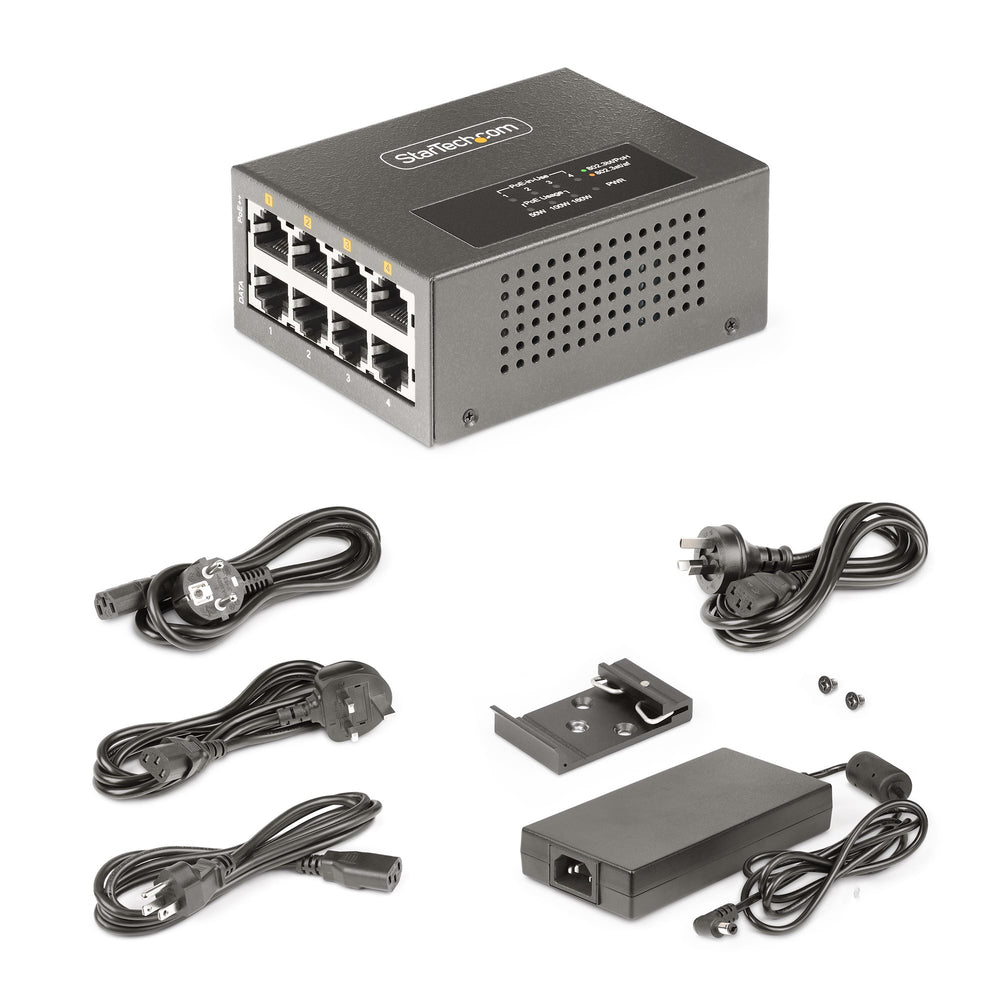

• AC adapter included: Yes
• Storage relative humidity (H-H): 5 - 95
• Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
• Ethernet LAN (RJ-45) ports: 8
• Jumbo frames support: Yes
• Total Power over Ethernet (PoE) budget: 160
• Jumbo frames: 9000
• Master (outer) case length: 370
• Quantity per master (outer) case: 10
• Ethernet LAN data rates: 10, 100, 1000, 2500, 5000

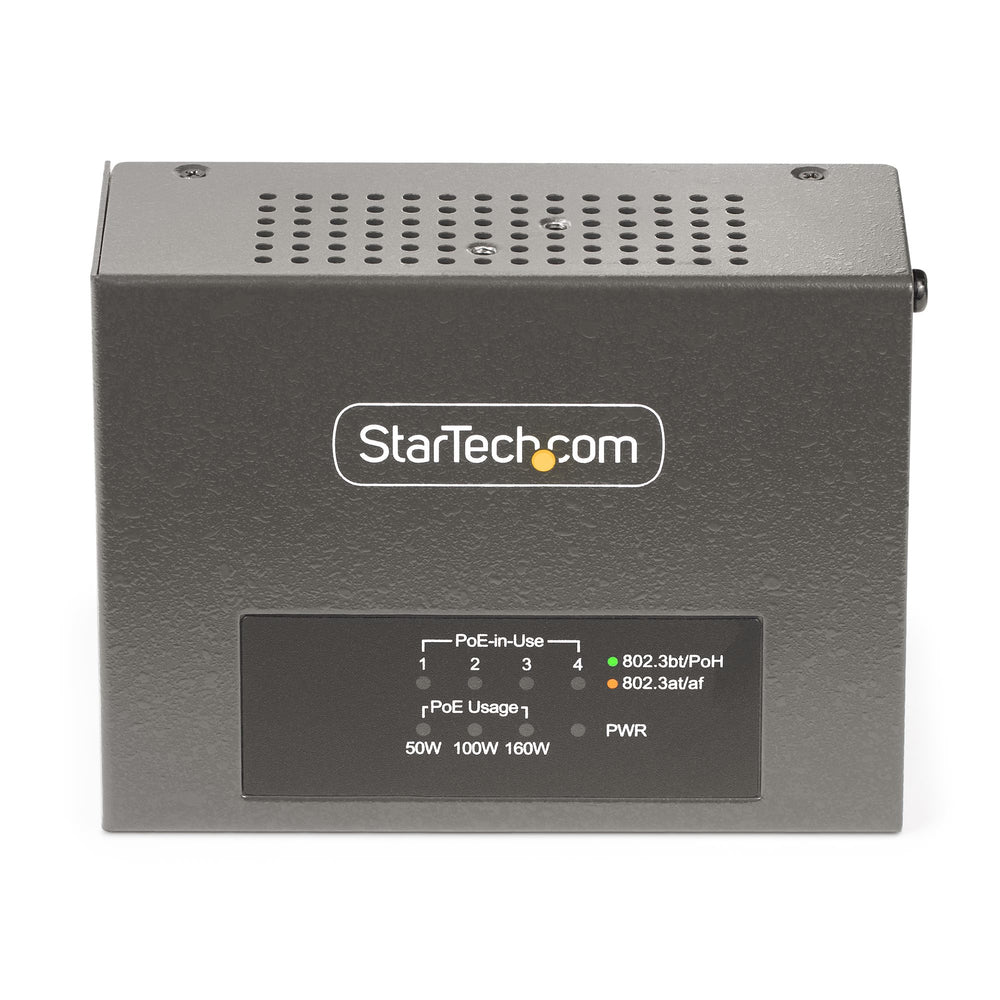

• LED indicators: Status

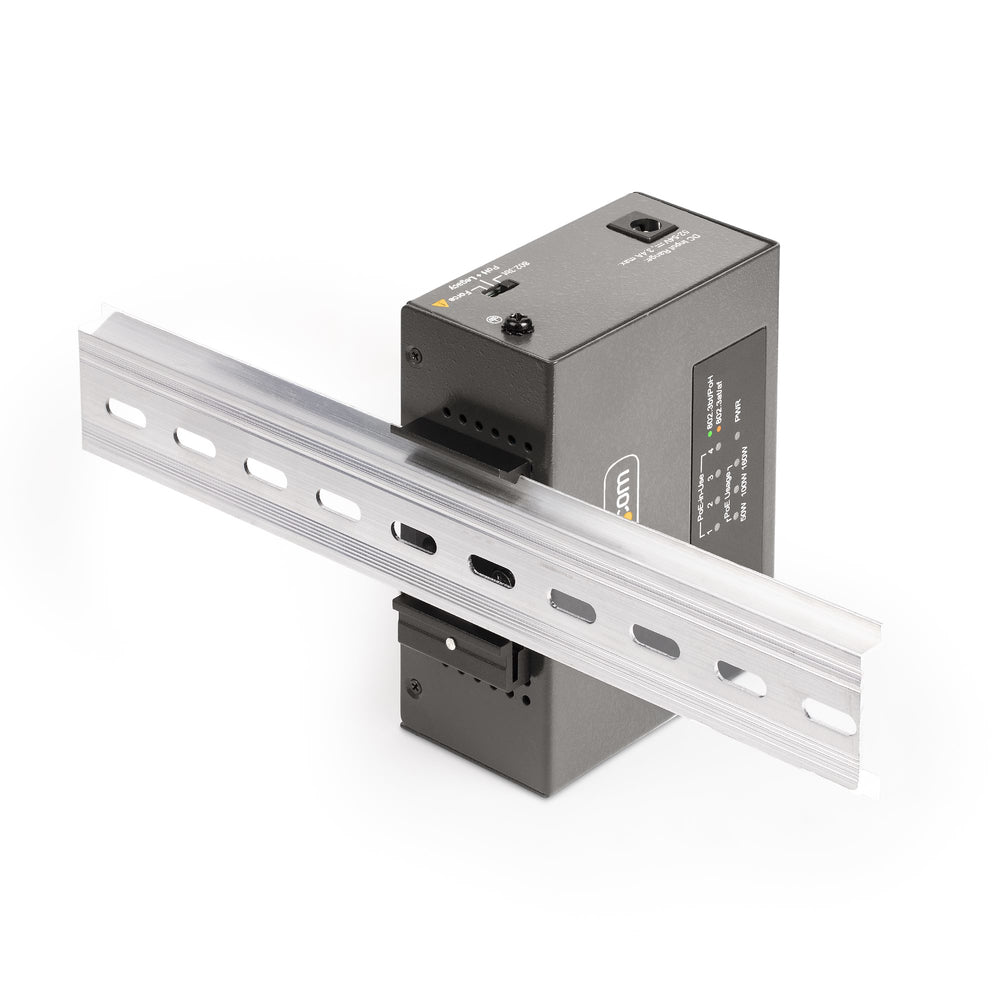

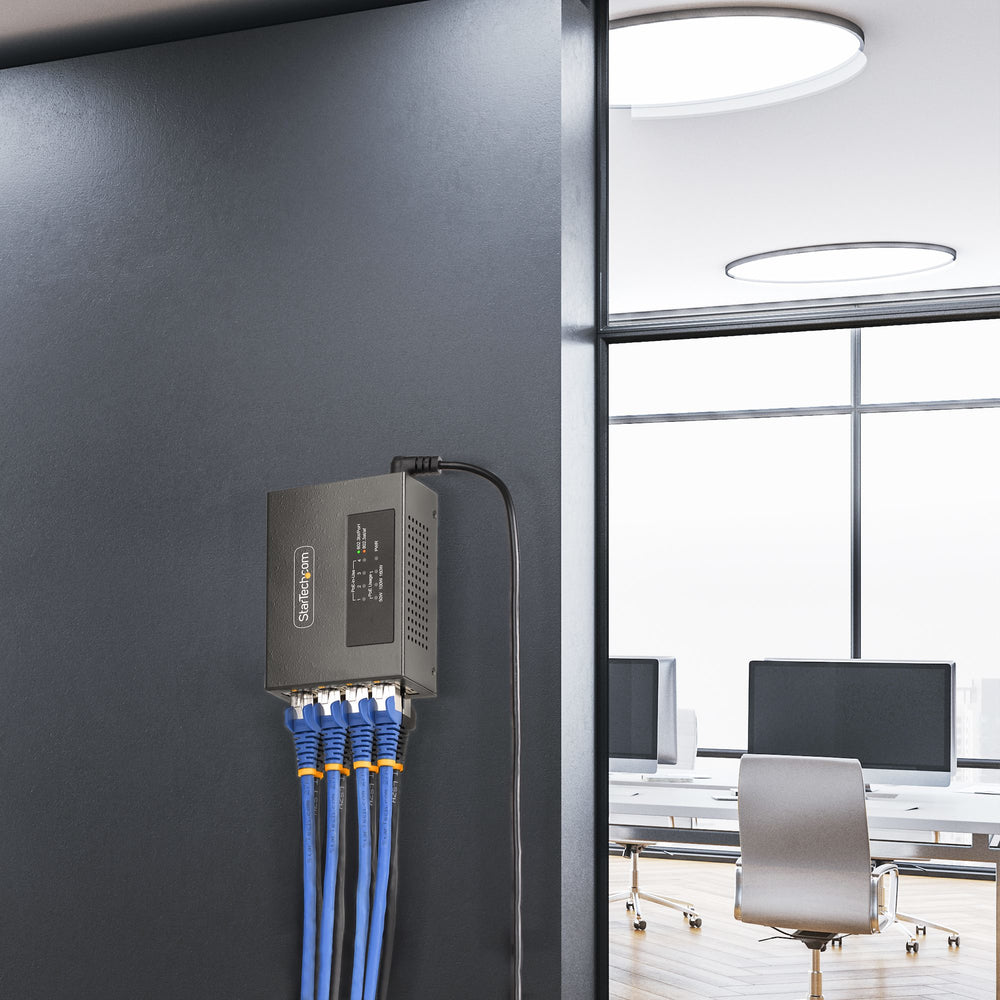

• Wall mountable: Yes
• Maximum operating distance: 100
• Output current: 3.3
• Package depth: 300
• Package height: 90
• Package width: 170
• Master (outer) case height: 325
• Master (outer) case width: 475
• Quick installation guide: Yes
• Housing material: Metal
• Number of products included: 1
• Power over Ethernet (PoE): Yes
• Auto MDI/MDI-X: Yes
• Weight: 278
• Chipset: Microsemi - PD69208T4, Microsemi - PD69200R
• Package weight: 1700
• AC adapter input voltage: 100 - 240
• AC adapter output voltage: 54
• Height: 39
• Width: 70
• Depth: 94
• Product color: Grey

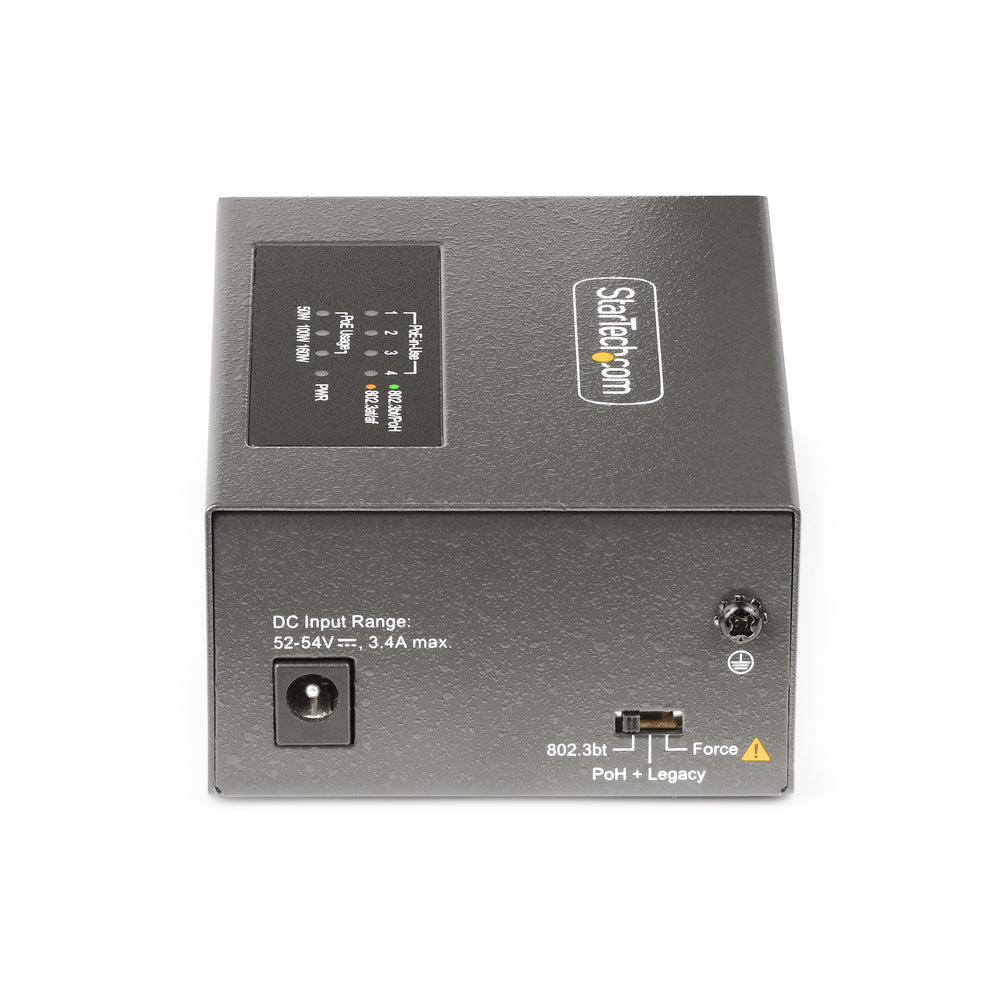

• DC-in jack: Yes
• Input current: 2.5
• Cable types supported: Cat5e, Cat6, Cat6a
• Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
• Sustainability certificates: CE, Federal Communications Commission (FCC), UKCA
• Sustainability compliance: Yes

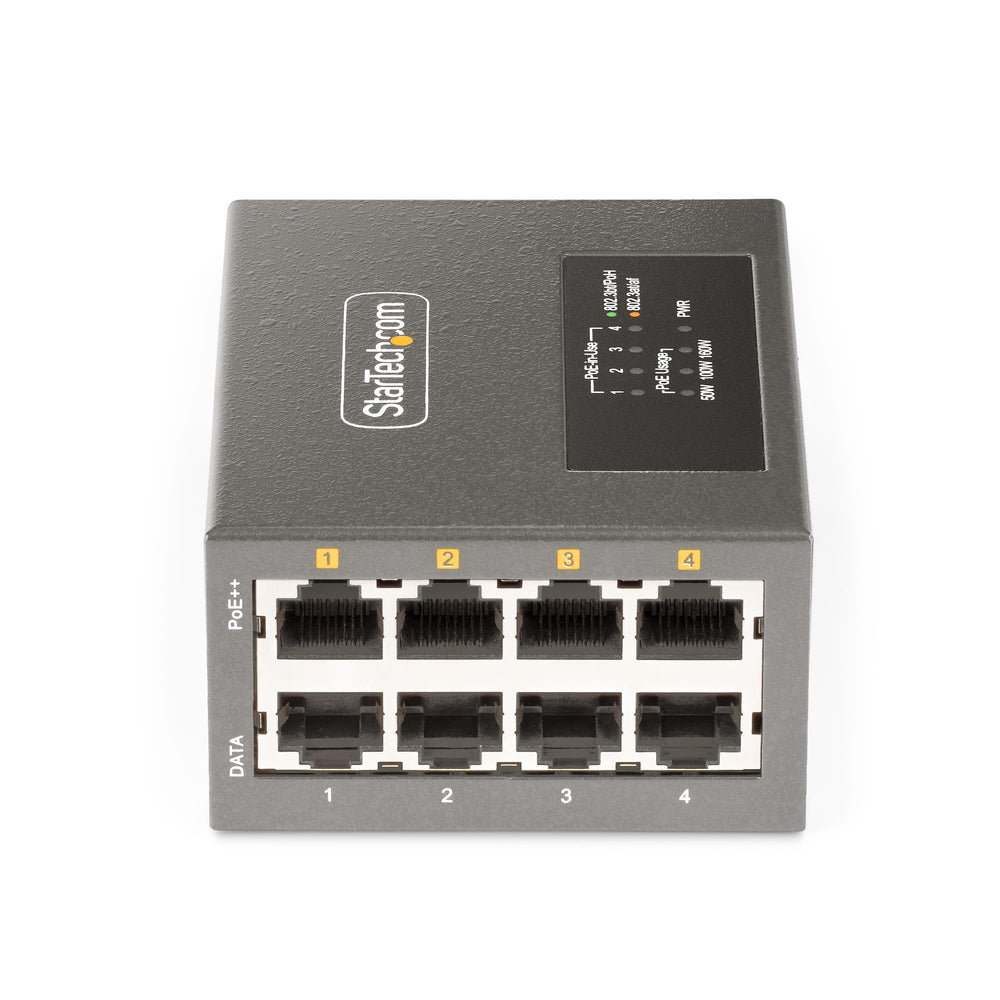

• RJ-45 output ports: 4
• RJ-45 input ports: 4

Learn More:

For more information about PoE technology, please visit Power over Ethernet on Wikipedia.

To learn about Ethernet standards, you can visit Ethernet on Wikipedia.

Product: StarTech AS445C-POE-INJECTOR PoE Adapter 2.5Gbps 5-Port Ethernet

Brand: Startech.Com

Model: AS445C-POE-INJECTOR

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
