Startech 132N-TB4USB4DOCK Thunderbolt 4 Docking Station 2X HDMI DisplayPort

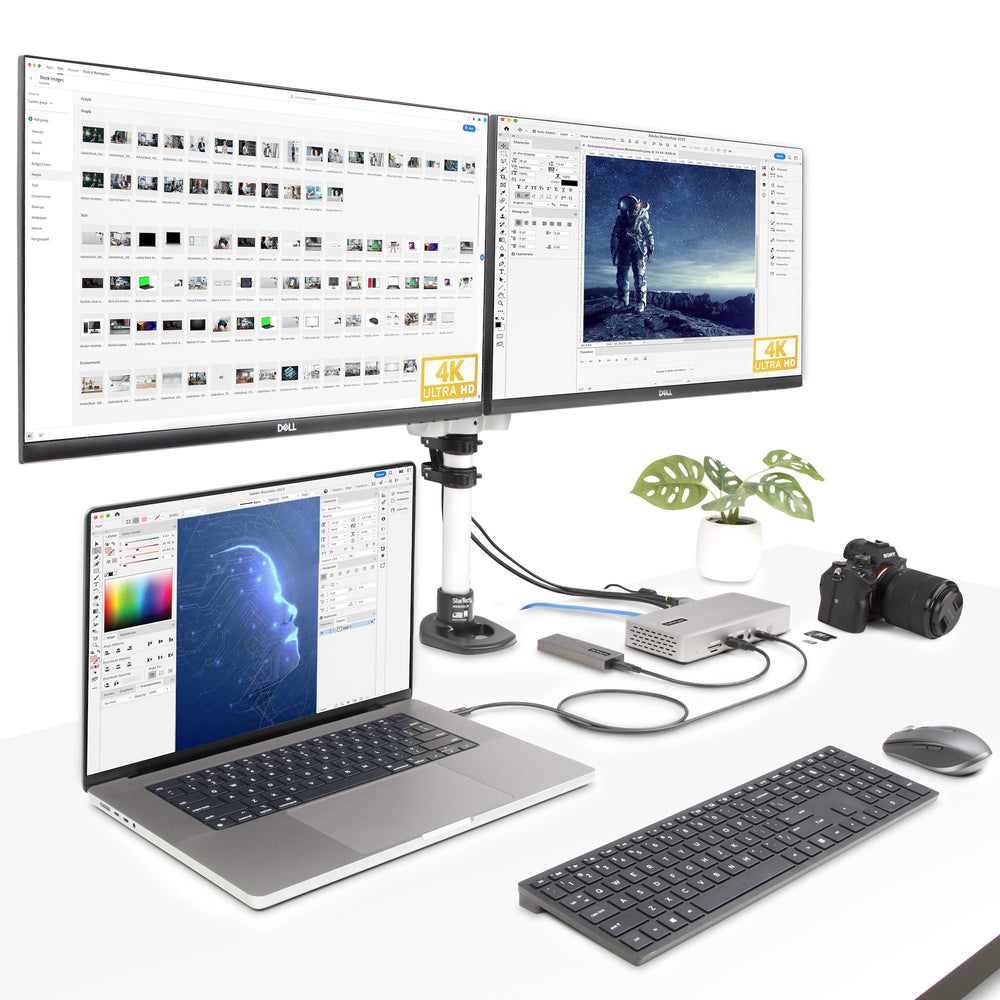

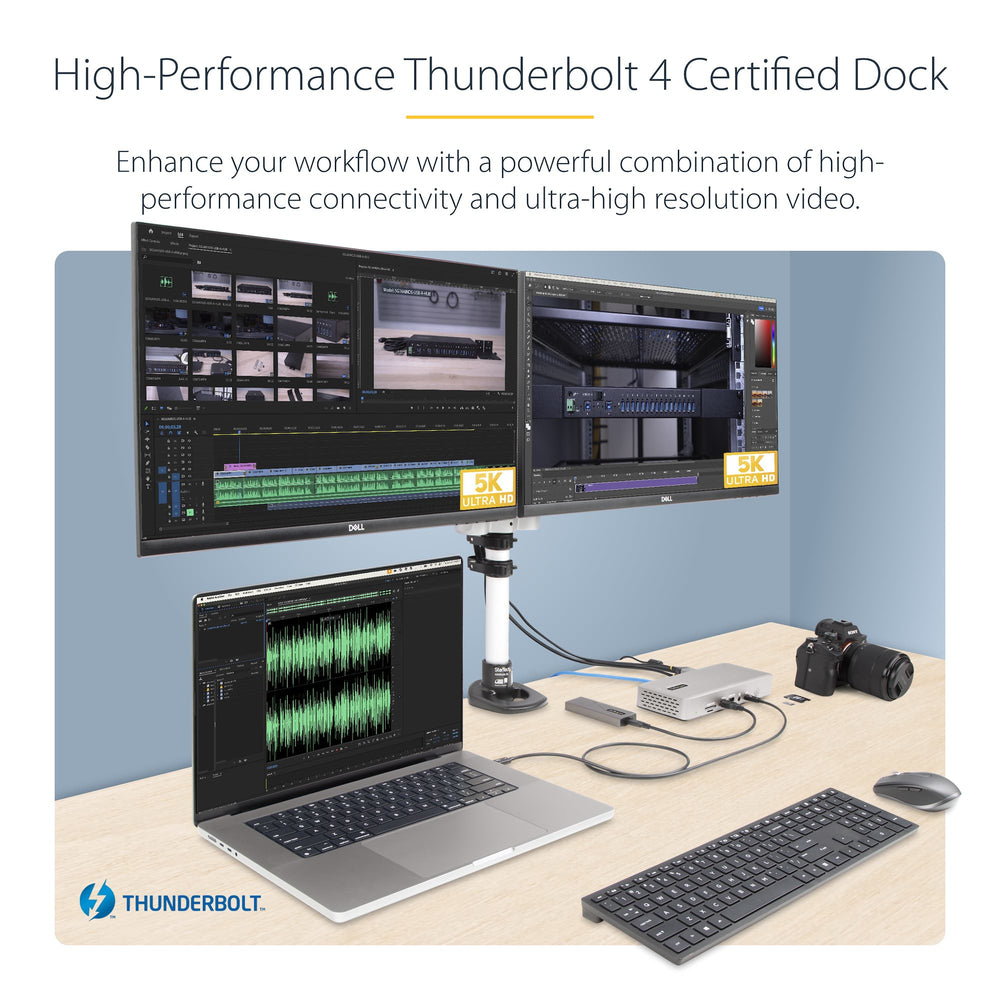

Transform a Thunderbolt 4 laptop into a high-resolution multi-monitor workstation with 7x USB ports, 2.5 Gigabit Ethernet port, 3.5mm audio, plus USB Power Delivery and downstream device charging.

Product Features:

• Supports Thunderbolt 4, Thunderbolt 3, USB4, or USB Type-C port connectivity

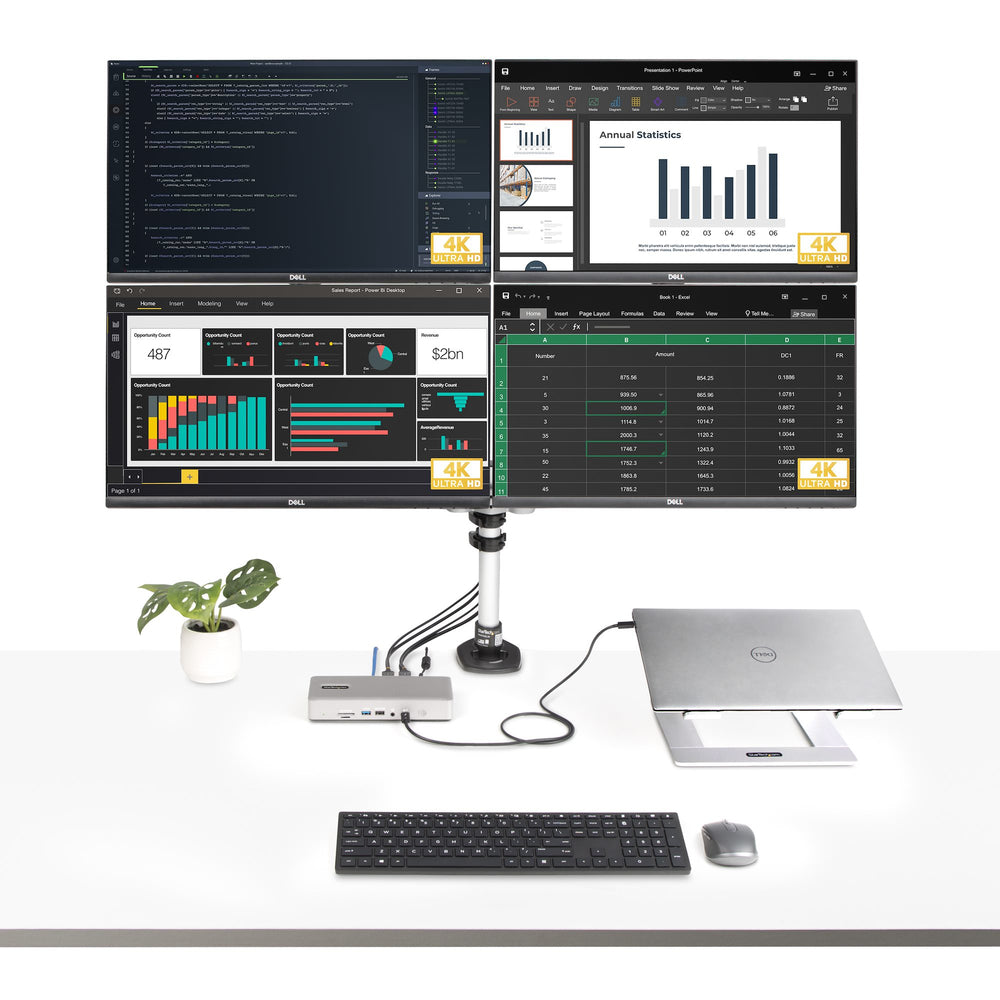

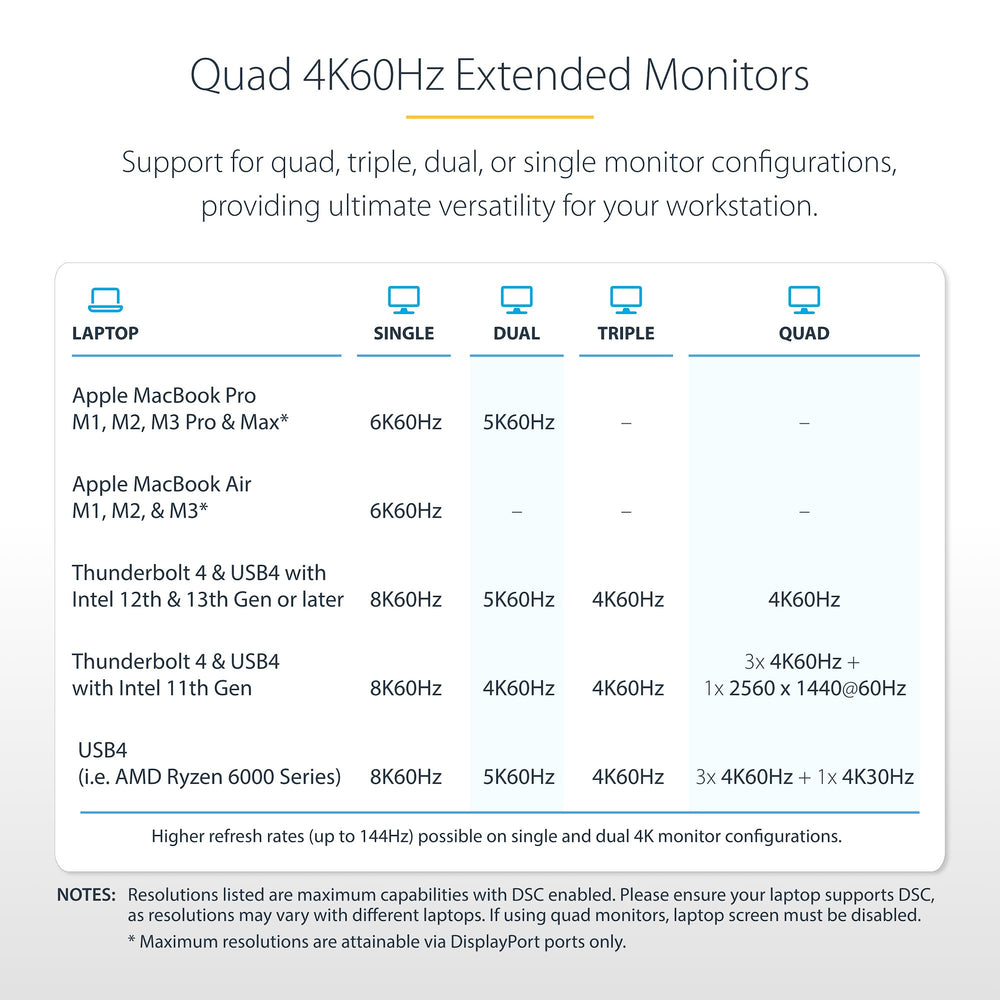

• 2x HDMI and 2x DisplayPort video outputs for multiple monitor configurations
• 3.3ft. (1m) Thunderbolt 4 cable included

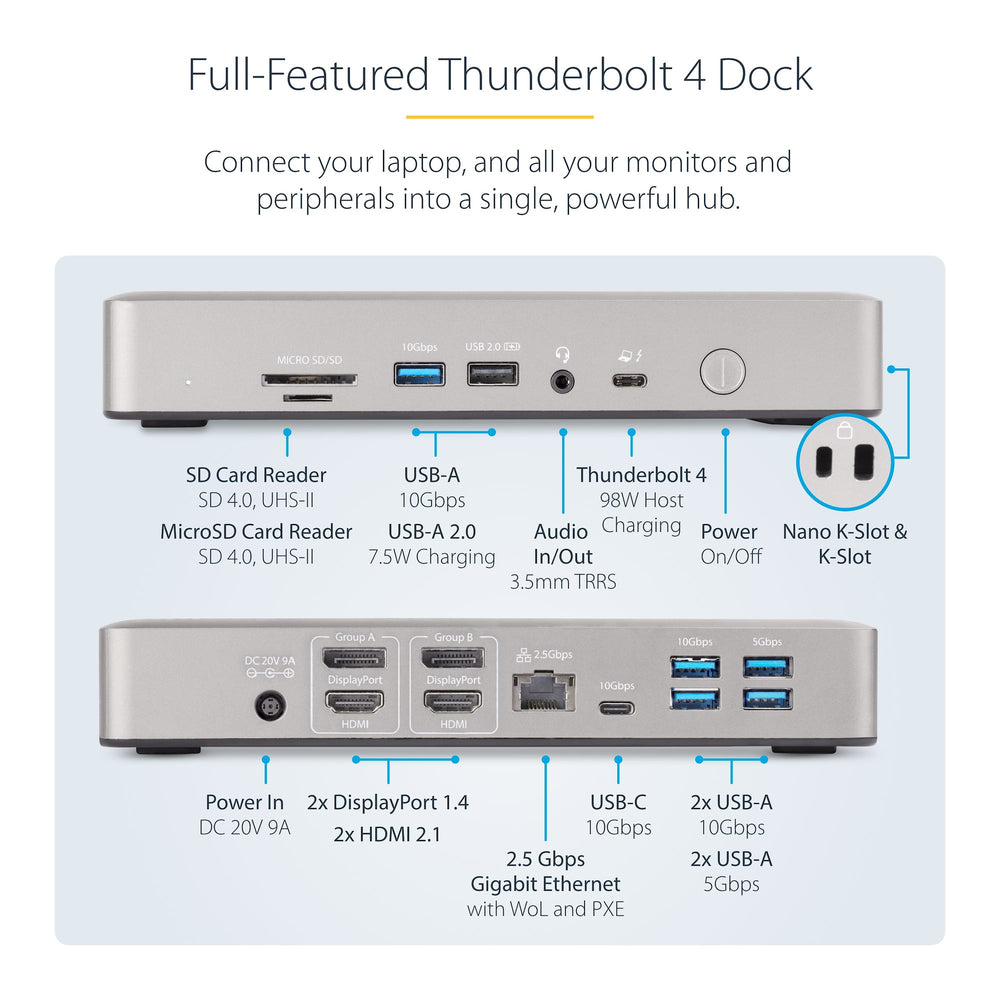

• 2x USB 3.2 Gen 2 (10Gbps) Type-A ports, 1x USB 3.2 Gen 2 (10Gbps) Type-C port, 2x USB 3.2 Gen 1 (5Gbps) Type-A ports, 1x USB 2.0 (480Mbps) Type-A port
• 1x 2.5 Gigabit Ethernet port with PXE boot and WoL
• 1x Secure Digital (SD) 4.0/UHS-II card reader and 1x Micro Secure Digital (microSD) 4.0/UHS-II card reader
• 1x 3.5mm 4-position TRRS Audio Jack

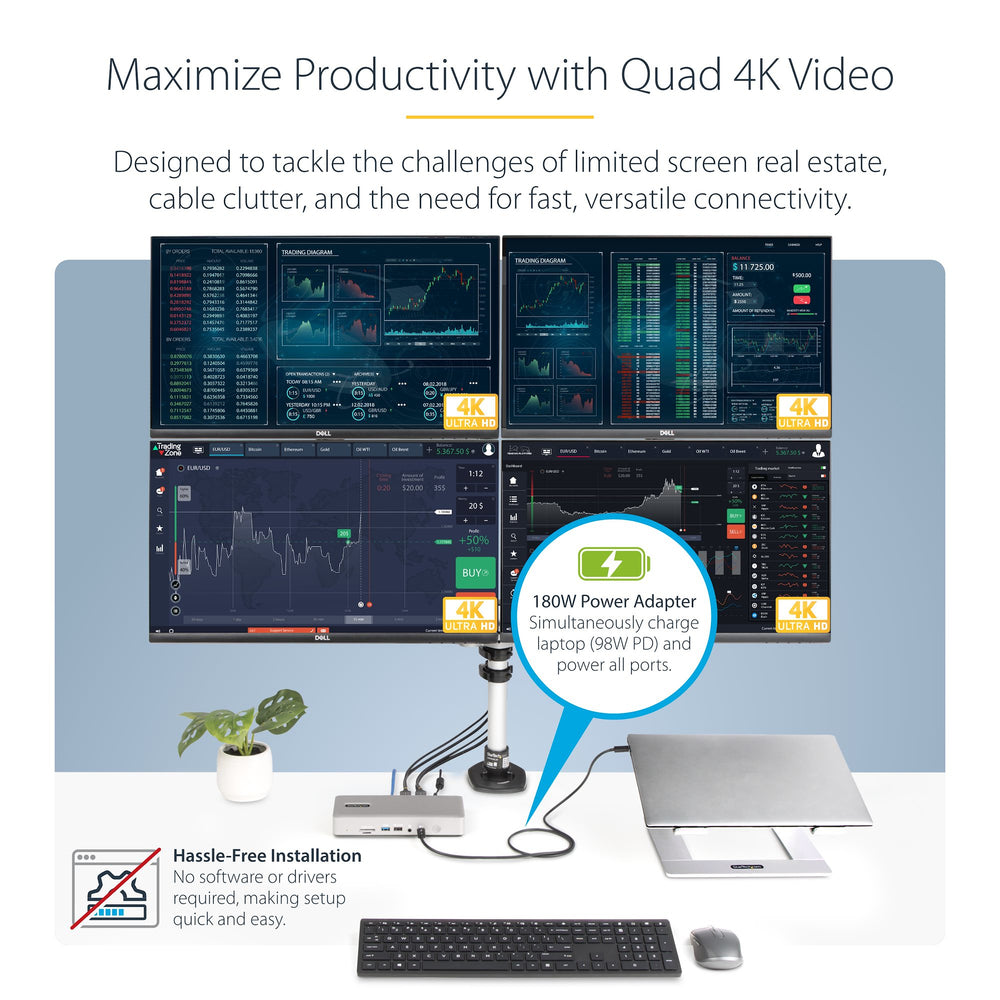

• 180W power adapter with 98W USB Power Delivery Certified
• Compatible with Intel Evo/Tiger Lake (11th gen & up) Thunderbolt 4 laptops and M1/M2/M3 Pro/Max MacBooks

Specifications:

• Operating relative humidity (H-H): 0 - 95
• Storage temperature (T-T): -20 - 70
• Operating temperature (T-T): 0 - 40
• AC adapter included: Yes
• Ethernet LAN: Yes
• Connectivity technology: Wired
• Ethernet LAN (RJ-45) ports: 1
• On/off switch: Yes
• HD type: 8K Ultra HD

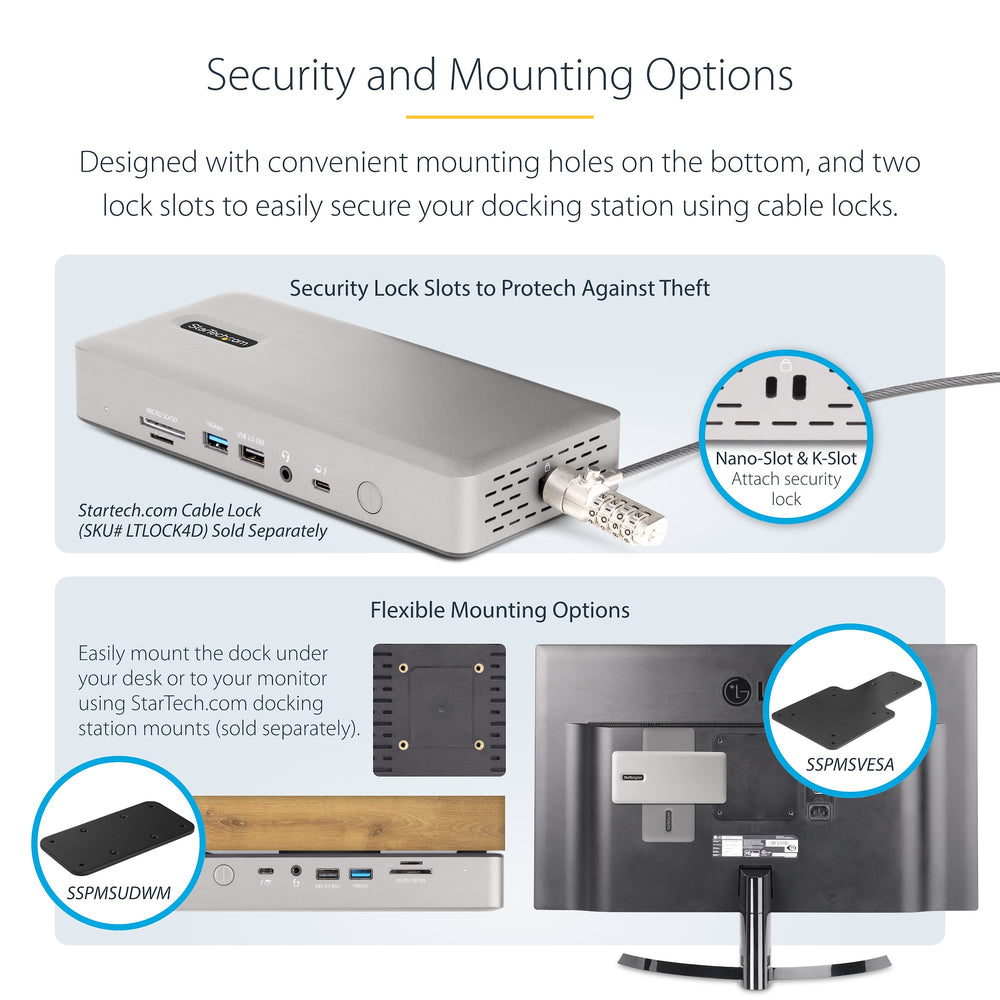

• Cable lock slot type: Kensington, Nano
• Compatible power plug types: US
• UASP support: Yes
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN data rates: 10,100,1000,2500
• Output voltage: 20
• LED indicators: LAN, Power
• Host interface: Thunderbolt 4
• Output current: 9

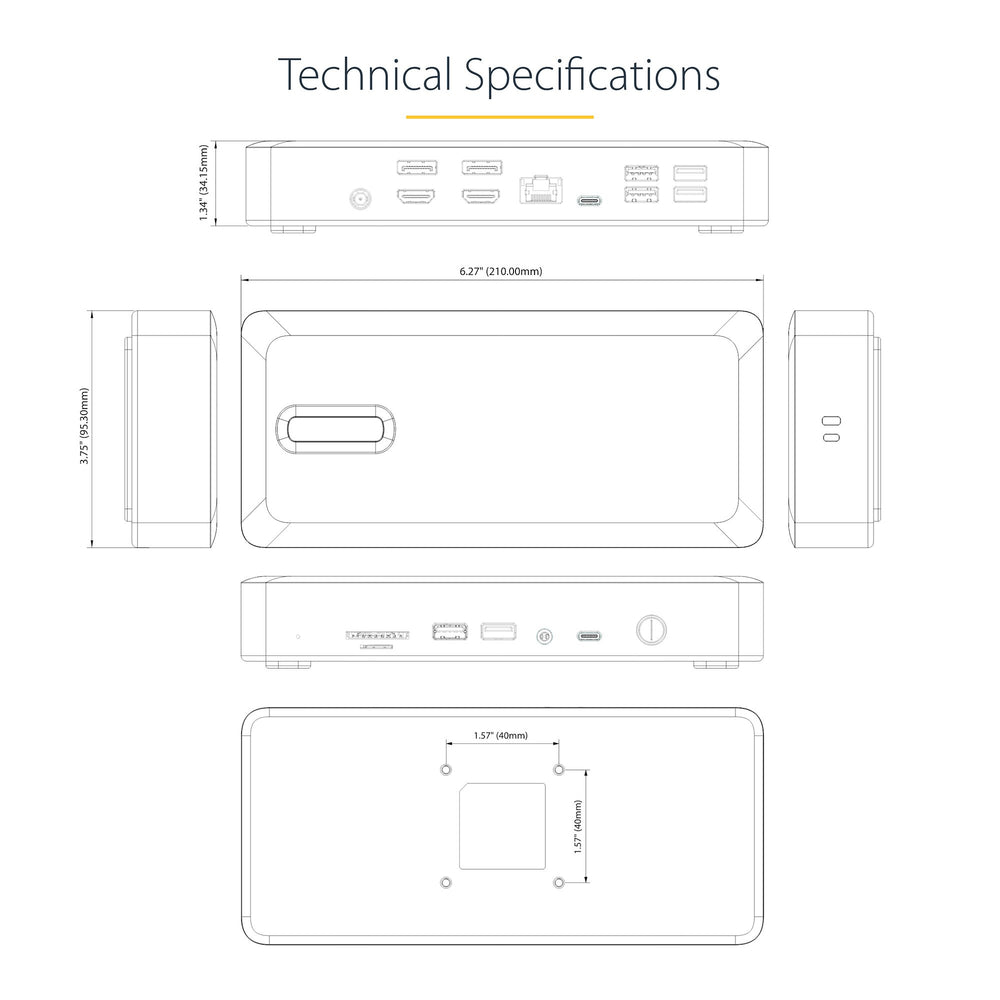

• Package depth: 145
• Package height: 90
• Package width: 235
• Quick start guide: Yes
• Headphone connectivity: 3.5 mm
• Housing material: Aluminium
• HDMI version: 2.1
• Maximum digital resolution: 7680 x 4320
• Weight: 200
• Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
• Chipset: Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek

Learn More:

• Thunderbolt Interface
• HDMI
• DisplayPort

Product: Startech 132N-TB4USB4DOCK Thunderbolt 4 Docking Station 2X HDMI DisplayPort

Brand: Startech.Com

Model: 132N-TB4USB4DOCK

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
