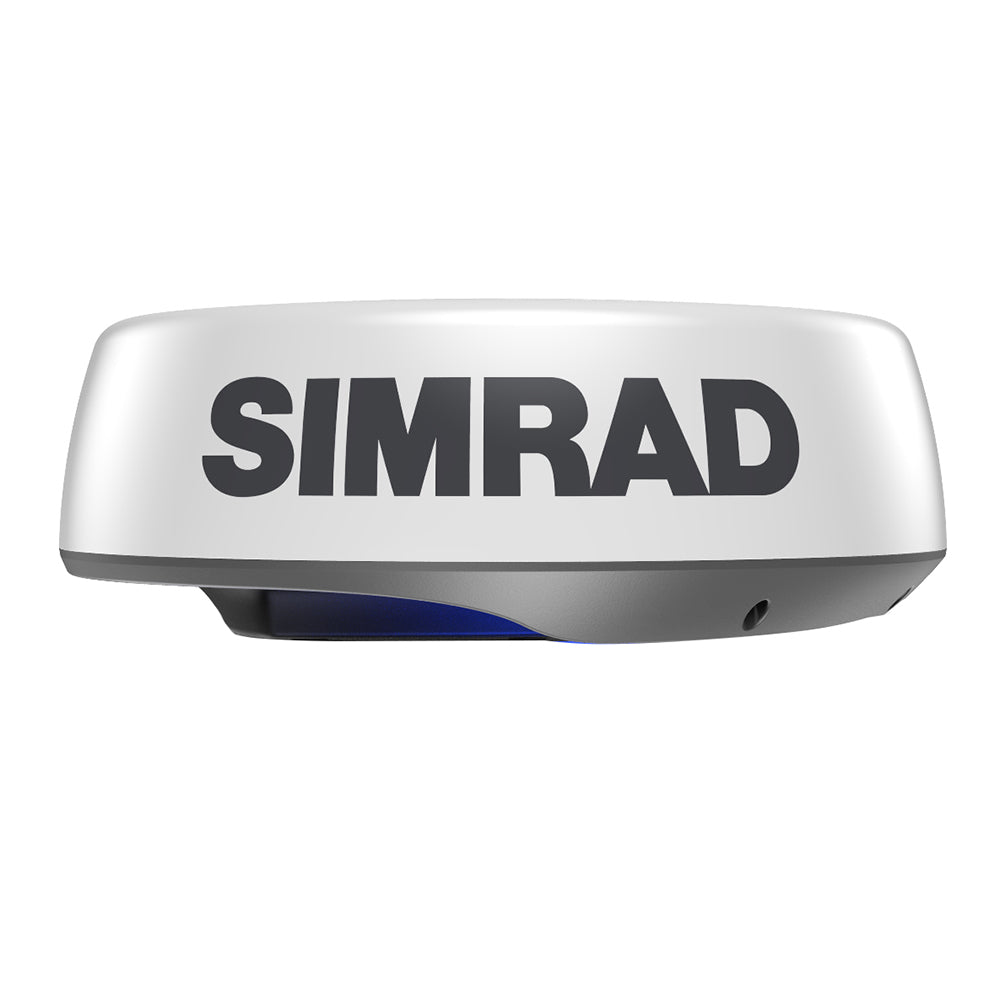

Simrad 000-14535-001 Halo24 Radar Dome with Doppler Technology

The Simrad 000-14535-001 Halo24 Radar Dome with Doppler Technology is a cutting-edge radar system that provides an almost real-time view and industry-first 60 RPM operation at close range, making it the ultimate solution for collision avoidance. With its VelocityTrack™ Doppler technology, this radar system allows you to identify hazards instantly. It offers simultaneous short and long-range coverage of up to 48 nautical miles, all from a compact 24-inch dome antenna.

Perfectly suited for a wide range of sailboats, fishing boats, and smaller powerboats, the Halo24 radar delivers high-quality short, mid, and long-range detection. In Dual Range mode, you can monitor two distance ranges at once, keeping an eye on far away weather cells while watching for collision hazards up close. The pulse-compression technology ensures no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.

The Halo24 radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, offering a full 360-degree sweep every single second. This ultra-fast update rate provides an almost real-time view at close range, making it ideal for navigating through crowded waterways or dealing with poor visibility. The radar's advanced VelocityTrack™ Doppler technology automatically checks every target seen by your radar, providing instant visual feedback on whether targets are approaching or moving away. This feature eliminates the need to manually select individual targets and enhances your situational awareness, reducing the risk of collision.

Key Features:

• 48 nm range from a compact 24" dome
• Advanced pulse compression technology with beam sharpening
• Simultaneous Dual Range operation sees both near and far
• Ultra-fast 60 RPM operation at ranges up to 2 nm
• VelocityTrack™ Doppler technology for collision avoidance
• Easy operation with harbor, offshore, weather, and bird modes
• MARPA target tracking (up to 10 targets, 20 in dual range)
• Ready instantly from standby
• Lightweight, low-profile dome design, with integrated LED lights
• Includes 10m Radar Cable

Specifications:

Environmental

• Operating Temperature: -25&degC to +55&degC (-13&degF to +130&degF)
• Relative humidity: +35&degC (95&degF), 95% RH
• Waterproof: IPX6
• Max relative wind velocity: 51 m/sec (100 Knots)
• Compliance: CE, FCC (ID:RAY3G4G), IC: 4697A-3G4G, IEC60945: 2002

Power & Dimensions

• Power consumption (with 10M cable): Operating: 14.5 to 27W at 13.8 V
• Standby: 3.9 W (Typ.) at 13.8 V DC 170 mA
• DC input (at end of radar cable): 9 V to 31.2 V DC (12/24 V systems)
• Reverse polarity protection: Yes
• Minimum startup voltage: 10.75 V DC
• Transmitter source (pre-heating time): No magnetron – Instant On

Physical

• Outside dimensions: Ø Diameter 610 mm (24"), Height 225 mm (8.9")
• Scanner weight (no cable): 6.75kg (14.9 lbs)

Radar and Antenna Parameters

• Radar ranges: 100M (328 ft) to 48nm with 18 range settings (nm/sm/km)
• Rotation (mode dependent): 20 - 60 rpm (mode and MFD dependent)
• Transmitter frequency: X-band - 9.4 to 9.5 Ghz

Learn More:

• Radar on Wikipedia
• Doppler Effect on Wikipedia
• Nautical Mile on Wikipedia

Product: Simrad 000-14535-001 Halo24 Radar Dome with Doppler Technology

Brand: Simrad

Model: 000-14535-001

Shipping Weight: lb

Shipping Height: in

Shipping Width: in

Shipping Length: in
