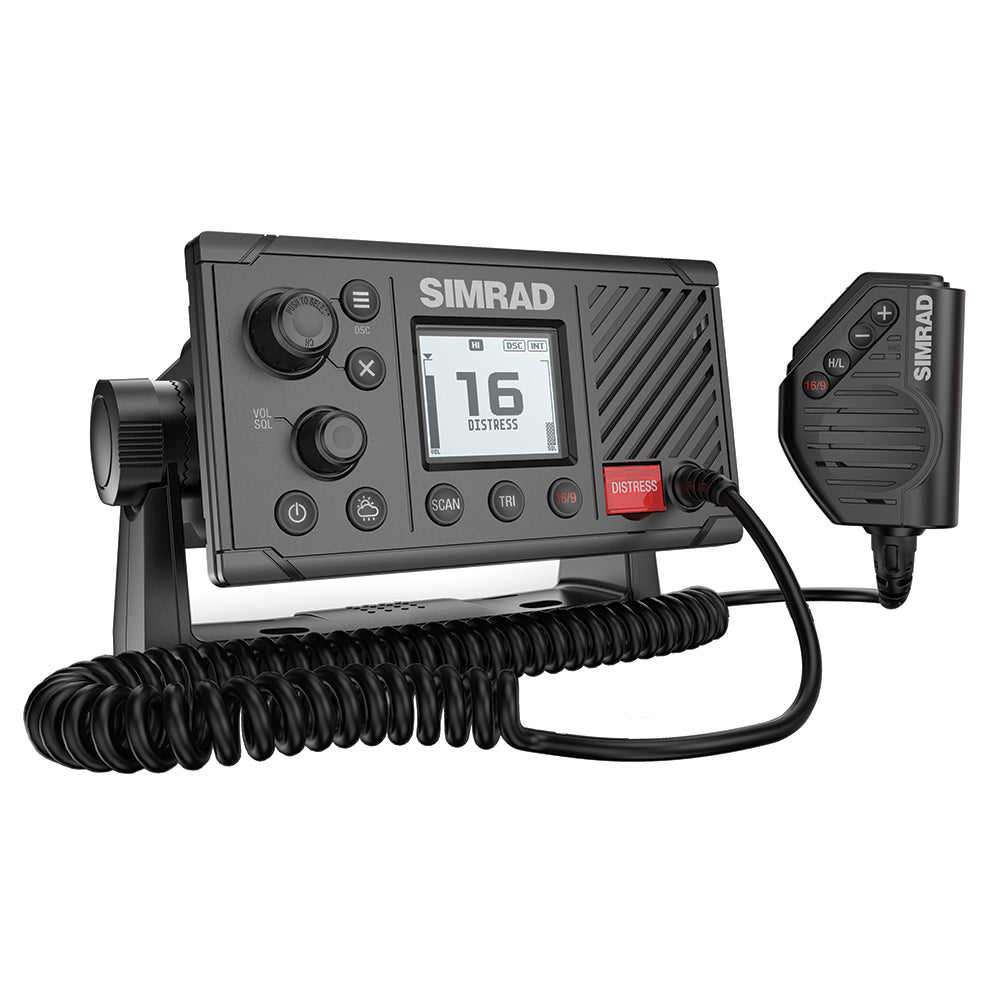

Simrad 000-14491-001 RS20S VHF Radio with Built-in GPS Antenna

Simrad RS20S VHF With DSC

Model: 00014491001

• Built in GPS Antenna
• Receive GPS data from a compatible GPS unit: SMA connector for optional external GPS antenna (000-13613-001)
• Replaces the current RS12 entry level VHF
• NMEA2000 connectivity for advanced functionality like backlight grouping when connected to Simrad MFD's
• NMEA0183 connectivity
• NMEA0183 connectivity
• New front mountable mechanical design for easy installation
• Low profile design to align with style of Simrad MFD's
• Full inbuilt country specific channel banks
• no requirement for LC programming or cloning

• Frequency Range: Transmit156.025?157.425 MHz
• Frequency Range: Receive156.050?163.275 MHz
• Number Of ChannelsUS / INT
• Oscillate ModePLL
• ModulationFM(16KOG3E) DSC(16K0G2B)
• Channel Spacing25KHz
• Frequency Stability±5 PPM
• Normal Working Voltage+13.6 V DC
• Minimum operating Voltage?10 V DC
• Low battery detect Voltage10.5 ± 0.5 V DC
• Digital Selectivity Calling (DSC)Class D
• Intermediate Frequency : 1st38.85/21.7 MHz
• Intermediate Frequency : 2nd450 KHz
• Sensitivity : 12dB SINAD?-6 dBuV(EMF)
• Squelch Sensitivity: at tight? 6 dBuV(EMF)
• Adjacent Channel Selectivity?70 dB
• Intermodulation Response?68 dB
• S/N at 3KHz Dev.?40 dB
• Audio Output Power At THD 10%?2.5 W
• Audio Distortion?10 %
• Audio Response+1 to -3dB of 6dB/octave from 300hz to 3kHz dB
• Current Drain : Max Audio Power?1.5 A
• Current Drain : Stand-By?0.5 A
• 2ND RX Sensitivity For 12dB SINAD? 0 dBuV(EMF)
• 2ND RX bit error ratio at -107dBm? 10-2
• Frequency error?±1.5KHz
• RF Power Hi23W ± 2W :Lo 0.8W ± 0.2W
• Maximum Deviation?± 5 KHz
• S/N at 3KHz Dev.?40 dB
• Modulation Distortion ±3KHz?10 %
• Audio Response at 1KHz Dev.+1 to -3dB of 6dB/octave from 300hz to 3KHz
• Spurious/Harmonic Emissions: Hi/LO?0.25uW
• Modulation Sensitivity?15 mV
• Current Drain At 12V DCHi Power ?6A: Lo Power ?1.5A
• DSC TX deviation at 1.3K2.6±0.26 KHz
• DSC TX deviation at 2.1K4.2±0.42KHz
• ATIS TX deviation at 1.3 KHz1.3±0.13 KHz
• ATIS TX deviation at 2.1 KHz2.1±0.21 KHz

Learn More

Simrad Wikipedia

Product: Simrad 000-14491-001 RS20S VHF Radio with Built-in GPS Antenna

Brand: Simrad

Model: 000-14491-001

Shipping Weight: 4.85 lb

Shipping Height: 7.00 in

Shipping Width: 9.00 in

Shipping Length: 11.00 in
