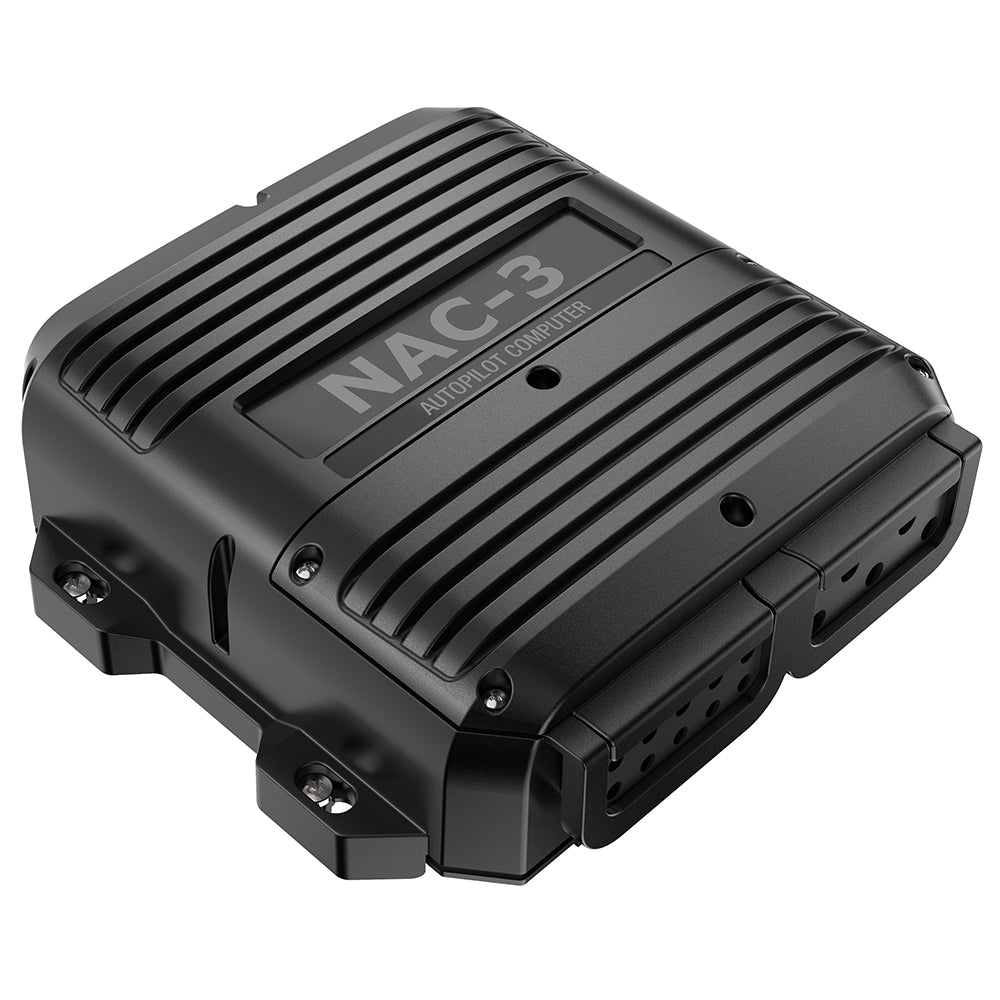

Simrad NAC-3 High Current Autopilot Computer

The Simrad NAC-3 Autopilot Computer is the essential component for your autopilot system. It features advanced control algorithms designed to steer a yacht in a wide range of weather conditions and sea-states. This unit is equipped with the necessary electronics to operate a hydraulic or mechanical drive unit, and can interface with other components such as heading sensors and rudder feedback units. The NAC-3 is specifically designed for boats 10 metres (33 feet) or greater in length and is capable of operating high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

Features:

• B&G Reflex Sailing algorithms
• 12/24V input 30A continuous output (50A peak)
• 3A Clutch output
• NMEA 0183 Interface (1 input, 1 output)
• Solenoid output capable
• Rudder feedback options: NMEA2000 Rudder Feedback (RF25), Freq. Rudder -Feedback (RF300)
• Solenoid output capable for larger vessels
• Connection for NFU Remotes
• External Mode input, External open/close or pulse contact for SYSTEM SELECT
• External alarm output for buzzer/relay

Specifications:

• Waterproof rating IPx7
• Power 12/24 V DC +10-30%
• NMEA 2000 LEN1
• Reversible motor control of rudderMax continious load 30A, peak 50A for 1s
• On/off solenoid control of rudder12/24V DC, common, load range 10mA to 10A, off current <1mA
• Engage output for bypass/clutch12/24V DC, min 10mA, max 3A
• Rudder angle, frequency input15V, 1.4 to 5kHz, resol. 20Hz/&deg OR NMEA2000
• NFU port/stbd input and mode indicator outputExternal open/close contact, common ret, contact current max 30mA
• Mode inputExternal open/close or pulse contact for SYSTEM SELECT, common ret, close to activate, contact current max 30mA
• External alarm output for buzzer/relayMax 100mA, voltage level as local supply
• NMEA01831 in 1 Out
• NMEA 20001

What's in the Box:

• NAC-3
• N2KEXT-2RD - 0.61 m (2-ft) NMEA
• N2K-T-RD T

Learn More

• Simrad Wikipedia
• Autopilot Wikipedia

Product: Simrad 000-13250-001 NAC-3 Autopilot Computer with High Current Output

Brand: Simrad

Model: 000-13250-001

Shipping Weight: 3.20 lb

Shipping Height: 5.00 in

Shipping Width: 9.00 in

Shipping Length: 10.00 in
