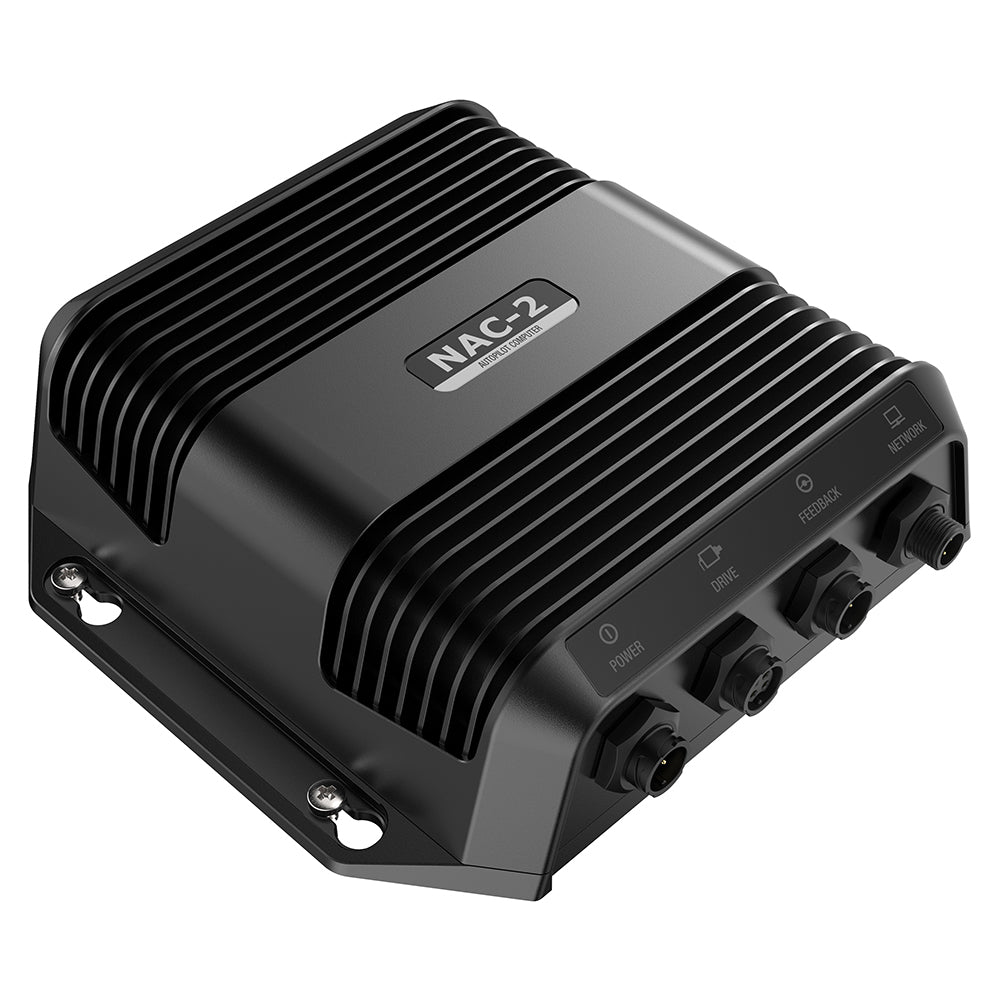

Simrad NAC-2 Low Current Autopilot Computer

The Simrad NAC-2 Low Current Autopilot Computer is the ultimate solution for controlling the autopilot system on your boat. With advanced control algorithms and reliable electronics, this autopilot computer ensures smooth and accurate navigation in various weather conditions and sea-states. Designed for boats up to 10 meters (33 feet) in length, it is compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves.

Key Features:

• Recommended for boats up to 10 meters (33 feet) in length
• Plug & Play installation
• Compatible with low-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
• 12 or 24 V DC input 8A continuous output, 12A peak
• Solenoid output capable
• 3 A clutch output
• Optional Auto/Standby Switch
• Drive & Processing circuitry and components identical to commercial autopilots
• Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
• Rudder feedback options: NMEA2000 Rudder Feedback (RF25), Resistive Rudder Feedback

Specifications:

• Waterproof rating: Splashproof, IPx5
• Power: 9-31.2 V DC
• Power consumption: 140mA Plus drive load
• Performance: Drive 8 amps, 12 Amps for 1 second

Interfaces:

• Network: 1 Micro C NMEA2000
• Feedback: Variable voltage/resistive 0-5V
• Drive Output: To PUMP-1 or HELM-1
• Power supply: 9-31.2 V DC
• Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA
• Clutch: 12/24V DC, min 10mA, max 3A

What's in the Box:

• NAC-2
• N2KEXT-2RD - 0.61 m (2-ft) NMEA
• N2K-T-RD T

Learn More:

• Autopilot on Wikipedia

Product: Simrad 000-13249-001 Nac-2 Autopilot Computer - Low Current

Brand: Simrad

Model: 000-13249-001

Shipping Weight: 3.75 lb

Shipping Height: 3.00 in

Shipping Width: 10.00 in

Shipping Length: 13.00 in
