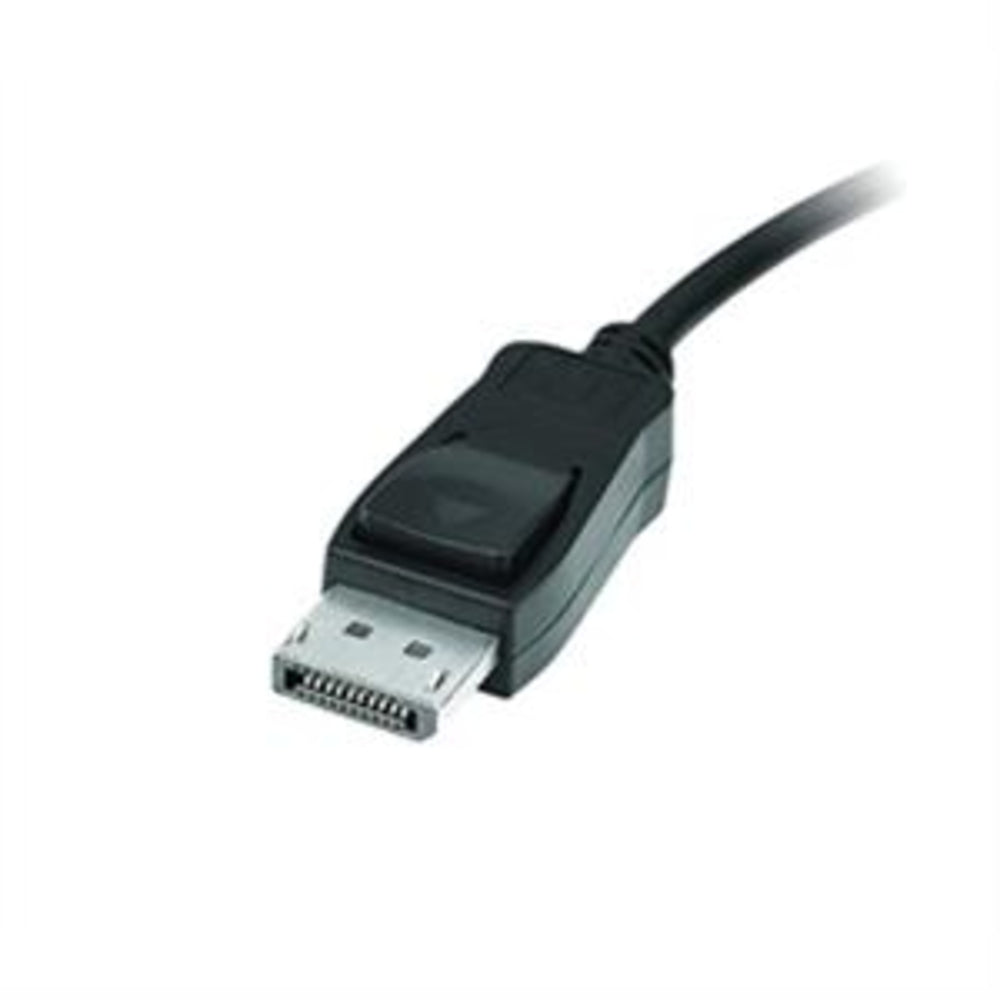

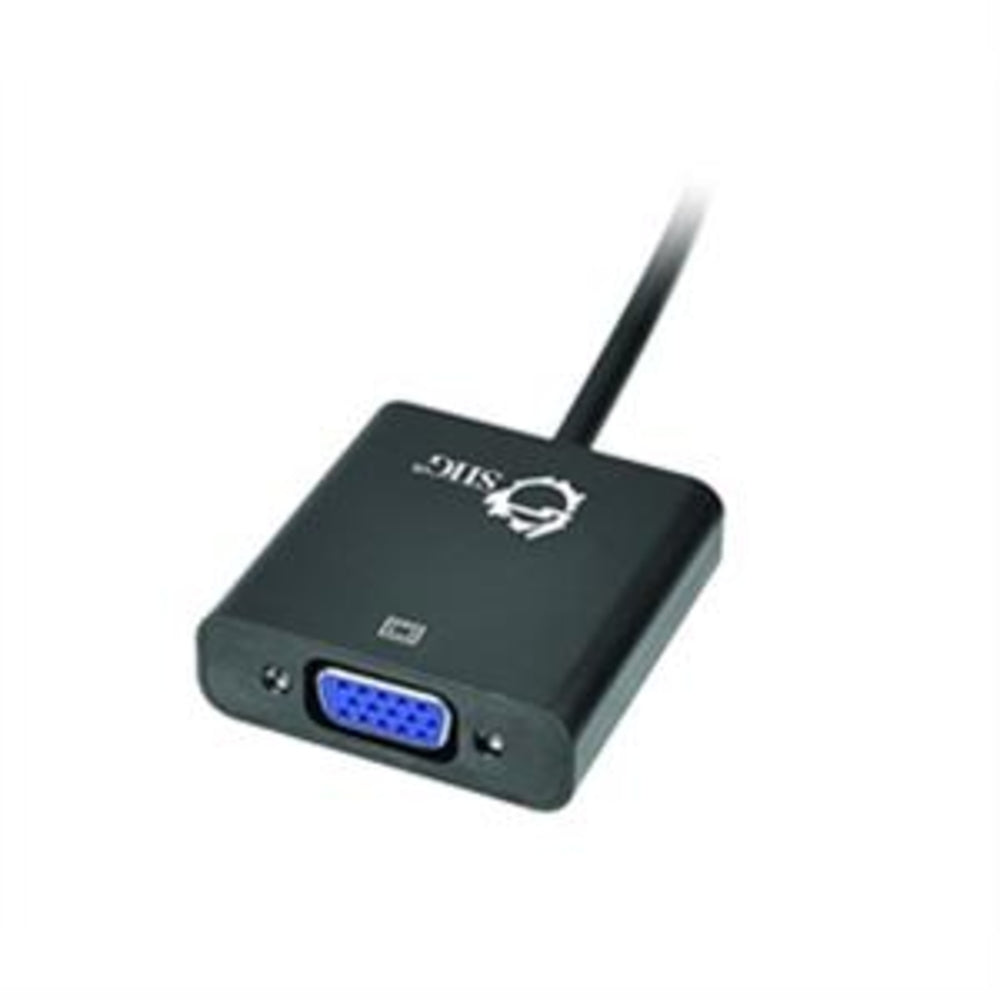

SIIG CB-DP0N11-S1 DisplayPort to VGA Adapter Converter

SIIG's DisplayPort to VGA Adapter Converter is designed to convert your DisplayPortTM output to a VGA port. It allows you to connect your DisplayPort-equipped notebook or desktop system to a VGA display. It is the convenient and cost-effective solution to enable the latest DisplayPort-equipped computer to work with an analog VGA monitor, saving you the cost of upgrading the display device.

Product Features:

• Chipset: ANX9832
• Compliant with DisplayPort 1.1a receiver
• Configurable 1 or 2 lane operation
• Supports 1.62 and 2.7Gbps data rates
• Supports Down Spread Spectrum (SSC)
• Display modes:
  • PC: VGA, SVGA, XGA, SXGA, UXGA, and WUXGA display modes
  • HDTV: 480i, 576i, 480p, 576p, 1080i, and 1080p
• Product:
  • Overall Length: 9.65" +/- 0.6" (245mm +/- 15mm)
  • Weight: 0.09 lbs
  • Color: Black
  • Material: Plastic
• Connector: 20-Pin DisplayPort (male) to 15-pin VGA (female)
  • DisplayPort connector housing (L x W x H): 1.93" x 0.78" x 0.51" (49 x 20 x 13 mm)
  • VGA connector housing (L x W x H): 1.77" x 1.77" x 0.59" (45 x 45 x 15 mm)
• Certifications/Standards: FCC, CE, RoHS
• Country of origin: China

Specifications:

• Item Dimension (L"xW"xH"): 2.25 x 5.12 x 8.46
• Weight: 0.59 lb
• Warranty Information: 3 years

Learn More:

• DisplayPort on Wikipedia
• VGA Connector on Wikipedia

Product: SIIG CB-DP0N11-S1 DisplayPort to VGA Adapter Converter

Brand: Siig

Model: CB-DP0N11-S1
