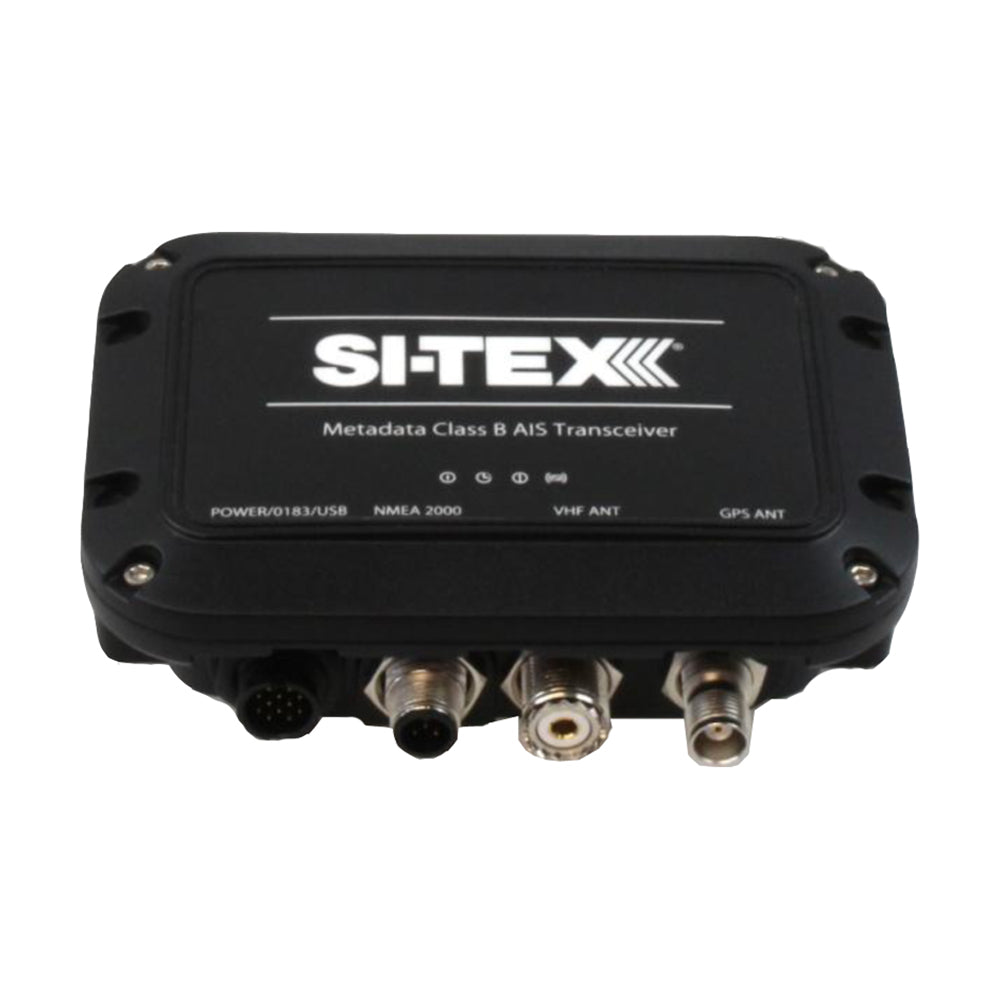

Si-Tex MDA-1 Class B AIS Transceiver with Internal GPS - Metadata Programmable

The Si-Tex MDA-1 is a Metadata Class B AIS Transceiver that utilizes a compact module for flexible location and rugged performance in any marine environment. It features an Rmax Class B engine that provides maximum range and efficient real-time AIS message processing for all message types. Despite its compact size, the Metadata Class B Transceiver features an internal 50-channel GPS smart antenna, eliminating the need for an external GPS antenna in many installations. It also features NMEA0183, NMEA2000 and USB connectivity for easy plug-and-play installations on recreational or commercial vessels wanting to send and receive AIS data.

The unit will need to be mounted with a clear view of the sky to utilize the internal GPS antenna. As the FCC requires all units sold in the US to be programmed by a qualified technician, please submit the form below for programming at the time of purchase. A copy of the MMSI Registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.

Features:

• Compact (5.5"X3.9"X1.9") module that is IPx7 Waterproof rated
• Rmax Class B engine for maximum range and efficient real-time AIS message processing for all message types
• Internal 50-channel GPS smart antenna
• NMEA0183, NMEA2000 and USB connectivity for easy plug-and-play installations

Specifications:

• Power:
  • 12 to 24V DC
  • Power consumption: 150mA at 12VDC, <2W average
• Data Interfaces:
  • USB
  • NMEA2000
  • IEC61162-1 (NMEA0183) output, 38400baud
  • IEC61162-1 (NMEA0183) input, 4800baud
  • Silent mode switch input
• Supplied with:
  • 2m power and NMEA0183 cable
  • User manual and quick start guide
  • Product CD
  • Fixing screws

Learn More

• Automatic Identification System (AIS) on Wikipedia
• Global Positioning System (GPS) on Wikipedia

Product: Si-tex Mda-1 Metadata Class B AIS Transceiver with Internal GPS

Brand: SI-TEX

Model: MDA-1

Shipping Weight: 1.60 lb

Shipping Height: 5.00 in

Shipping Width: 6.00 in

Shipping Length: 8.00 in
