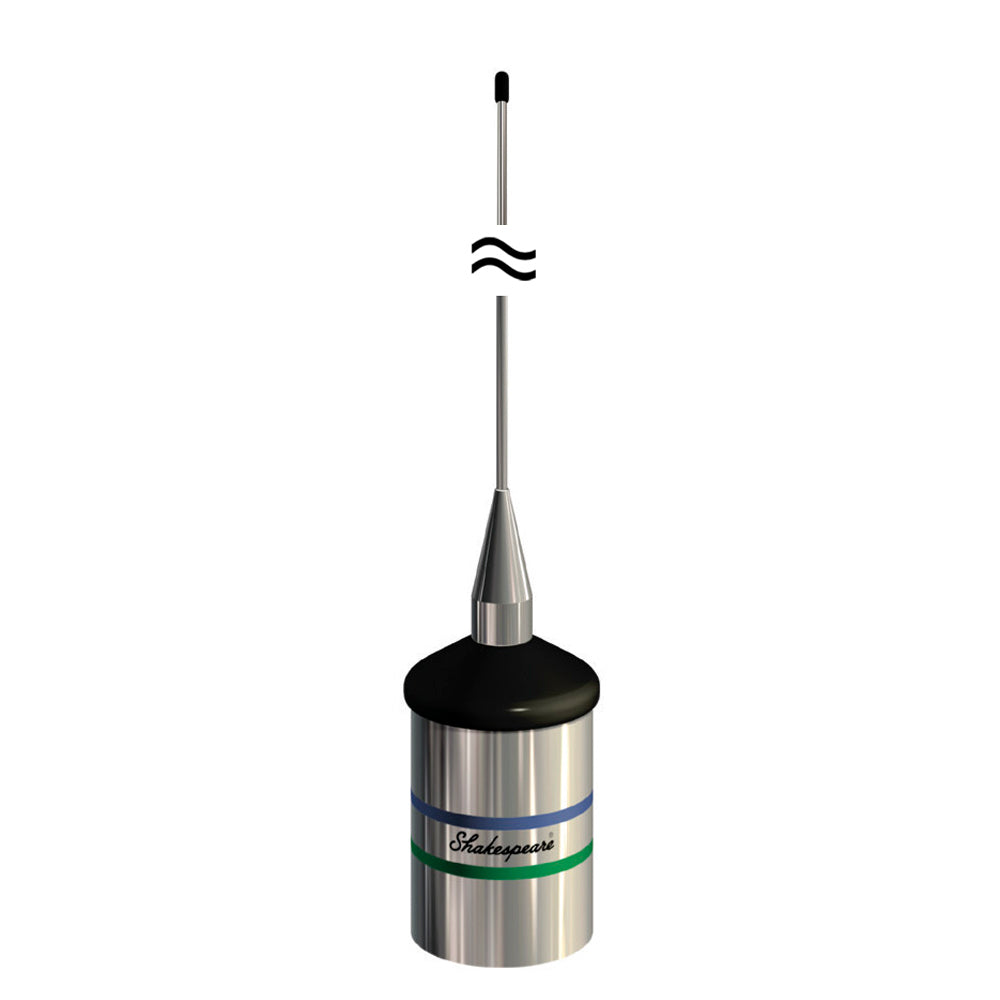

3' CLASSIC WHIP VHF ANTENNA (SHAKESPEARE ANTENNAS)

Introducing the 3' CLASSIC WHIP VHF ANTENNA by Shakespeare Antennas. This versatile antenna is perfect for bass boats, center console fishing boats, or any vessel where compact size is of utmost importance. With its low-profile end-fed design and heavy-duty stainless steel whip, this antenna offers exceptional stability even at high speeds.

The 3' CLASSIC WHIP VHF ANTENNA features a sealed, tin-plated copper wire coil and a user-replaceable stainless steel whip measuring 36 inches. It requires a mount with a center hole for the passage of the included 15ft RG-58 cable and PL-259 connector. For optimal performance, we recommend Shakespeare Styles 4187, 4188-S, or 4190 Ratchet Mounts (each sold separately) as suggested mounts.

Here are the specifications of the Shakespeare 5241-R:

• Band: VHF Marine Band
• Antenna Gain: 3dB
• Max. Input Power: 50 watts
• SWR: nominally 1.5:1 at 156.8 MHz
• Bandwidth: 7 MHz within 2.0:1 VSWR
• Ferrule: Chrome plated brass cannister
• Coax Supplied: 15 ft of RG-58
• Connector Supplied: PL-259, not attached
• Polarity: Vertical
• Impedance: 50 Ohms
• DC Ground: No DC Ground - The antenna will read open on continuity test
• Shakespeare Limited Warranty: 2 years

Learn More

Expand your knowledge about VHF antennas and related topics:

• VHF Marine Radio
• Antenna Gain
• PL-259 Connector

Click on the links above to learn more about these subjects.

Product: Shakespeare 5241-R 3ft VHF Marine Antenna - Heavy Duty Low Profile Base Load

Brand: Shakespeare

Model: 5241-R

Shipping Weight: 2.50 lb

Shipping Height: 3.00 in

Shipping Width: 3.00 in

Shipping Length: 40.00 in
