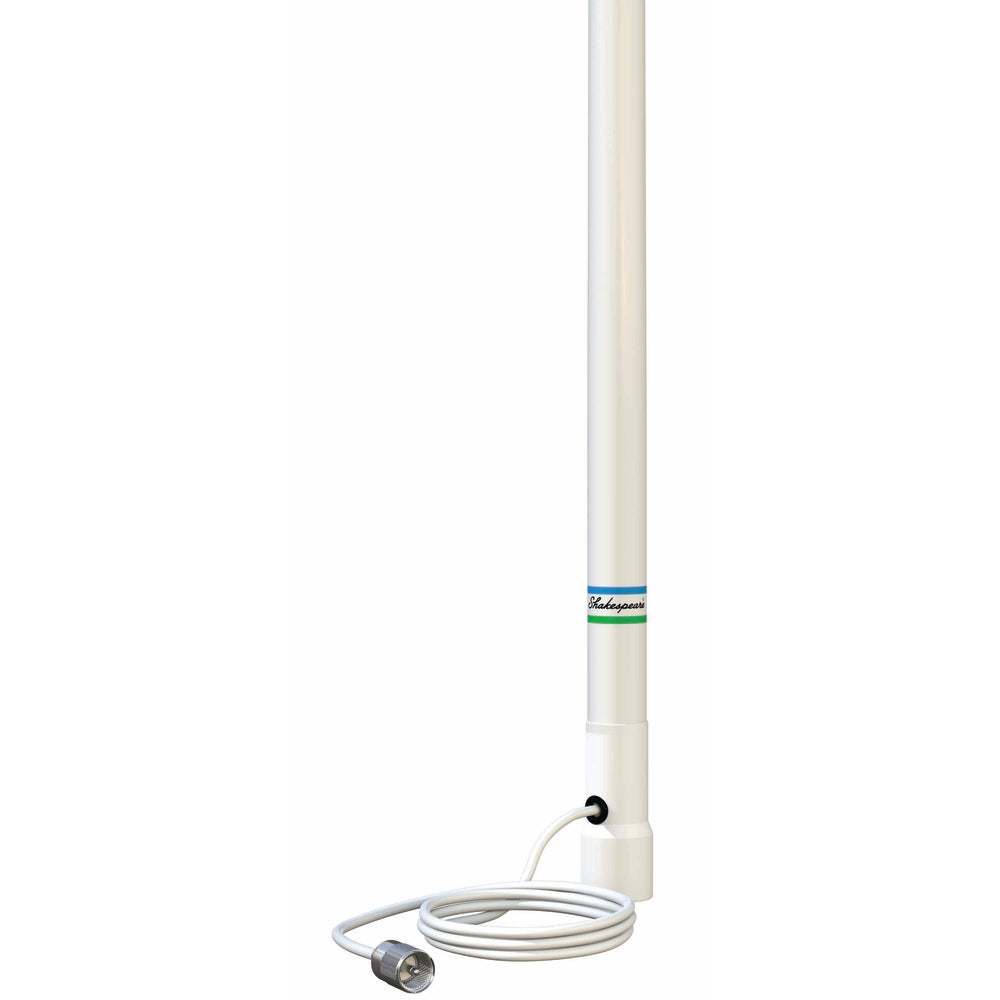

Shakespeare 5206N 8ft VHF Marine Antenna with 15ft Coax Cable & PL259 Connector

The Shakespeare 5206N VHF Marine Antenna is an economical and lightweight, self-supporting antenna suitable for good communications where range is not the predominant factor. It comes with quality copper cable elements for good range and efficiency, a nylon ferrule with standard 1"-14 thread, and includes a 15' RG-58 cable and a PL-259 connector.

Suggested mounts for this antenna are the Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount. It is also twin to Shakespeare Styles 5205 and 5207 CB Marine antennas.

Technical Specifications:

• Frequency: VHF Marine band
• Bandwidth: 3 MHz
• SWR: 1.5:1 at 156.8 MHz
• Impedance (Ohms): 50
• Gain: 6 dB
• Max Input (Watts): 50
• DC Ground: NO - the antenna will read "open circuit" when checked with an ohm meter or continuity tester.
• Termination: RG-58
• Height (feet): 8
• Polarization: Vertical
• Radiation pattern: Omni-directional

The Shakespeare 5206N VHF Marine Antenna is the reduced length version of the Style 5206-C, but has a nylon ferrule. It is an excellent choice for those looking for a reliable and affordable VHF marine antenna.

Product: Shakespeare 5206N 8' VHF MARINE ANTENNA 15' COAX CABLE And PL259 CONNECTOR

Brand: Shakespeare

Model: 5206-N

Shipping Weight: 2.40 lb

Shipping Height: 3.00 in

Shipping Width: 3.00 in

Shipping Length: 95.00 in
