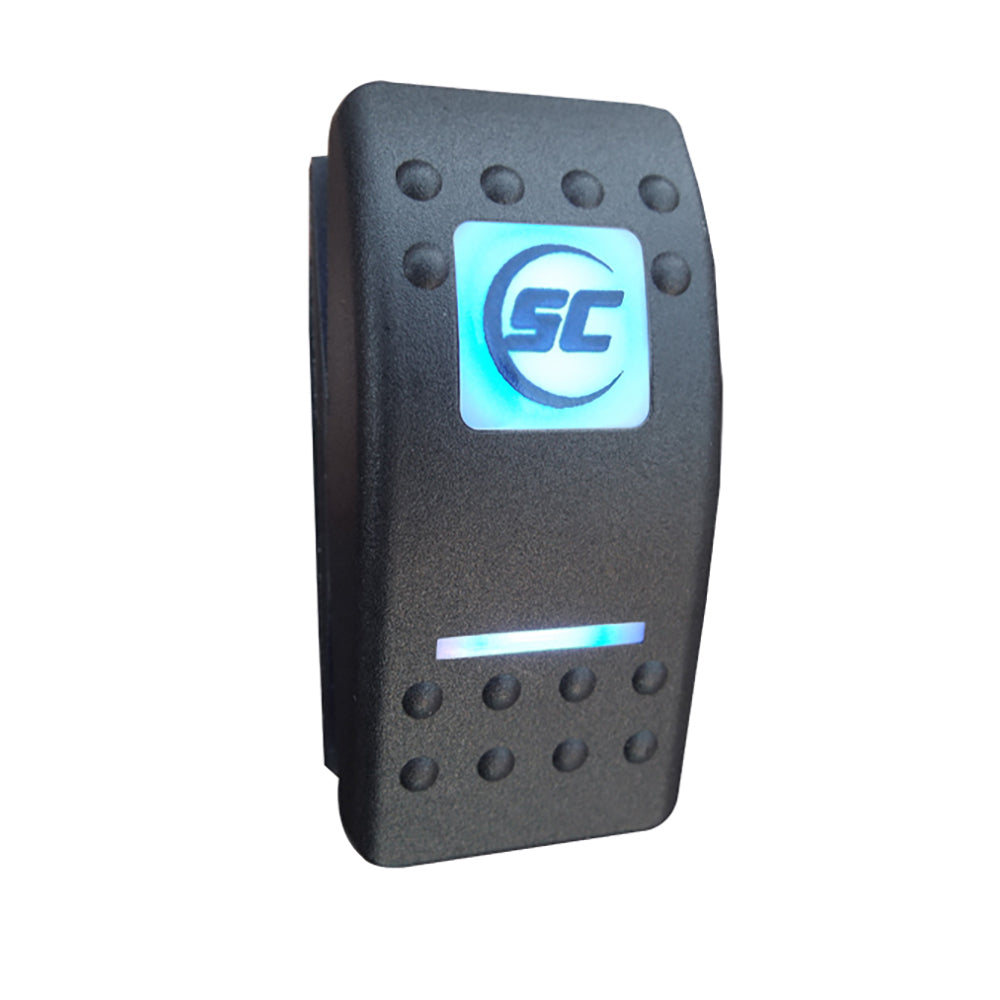

Shadow-Caster SCM-Switch Marine LED Lighting - 3-Position On/Off Momentary

The Shadow-Caster SCM-Switch Marine LED Lighting is a versatile and easy-to-use switch that allows you to control the lighting on your fishing boat, pontoon boat, sports boat, or yacht. This 3-position switch allows you to toggle power on and off, change colors, and switch between multiple fade mode changes. With its sleek black design, this switch is both stylish and functional, making it the perfect addition to any marine lighting setup.

Features:

• Power On/Off
• Color change
• Multiple fade mode changes

Specifications:

• Off/On/Momentary
• LED Voltage Rating: 12V (Add 600ohm resistor between pin 7 and ground for 24V operation)
• LED Color: Blue x 2
• Terminals: Brass or copper/silver plate 1/4” (6.3mm) quick connect
• Sealing IP66/68, for above-panel components of actual switch only
• Operating Temp. -40°C to +85°C
• Contact Rating: 20 amps, 4-14VDC and 15 amps, 15-28VDC
• Switch and actuator color: Black

Note: Use with SCM-SNLC single-zone lighting controller to access full ShadowNET® lighting control functionality.

Learn More

• Marine lighting - Wikipedia
• LED lamp - Wikipedia

Product: Shadow-Caster SCM-Switch Marine LED Lighting - 3-Position On/Off Momentary

Brand: Shadow-Caster

Model: SCM-SWITCH-O/O/M

Shipping Weight: 0.10 lb

Shipping Height: 1.00 in

Shipping Width: 2.00 in

Shipping Length: 2.00 in
