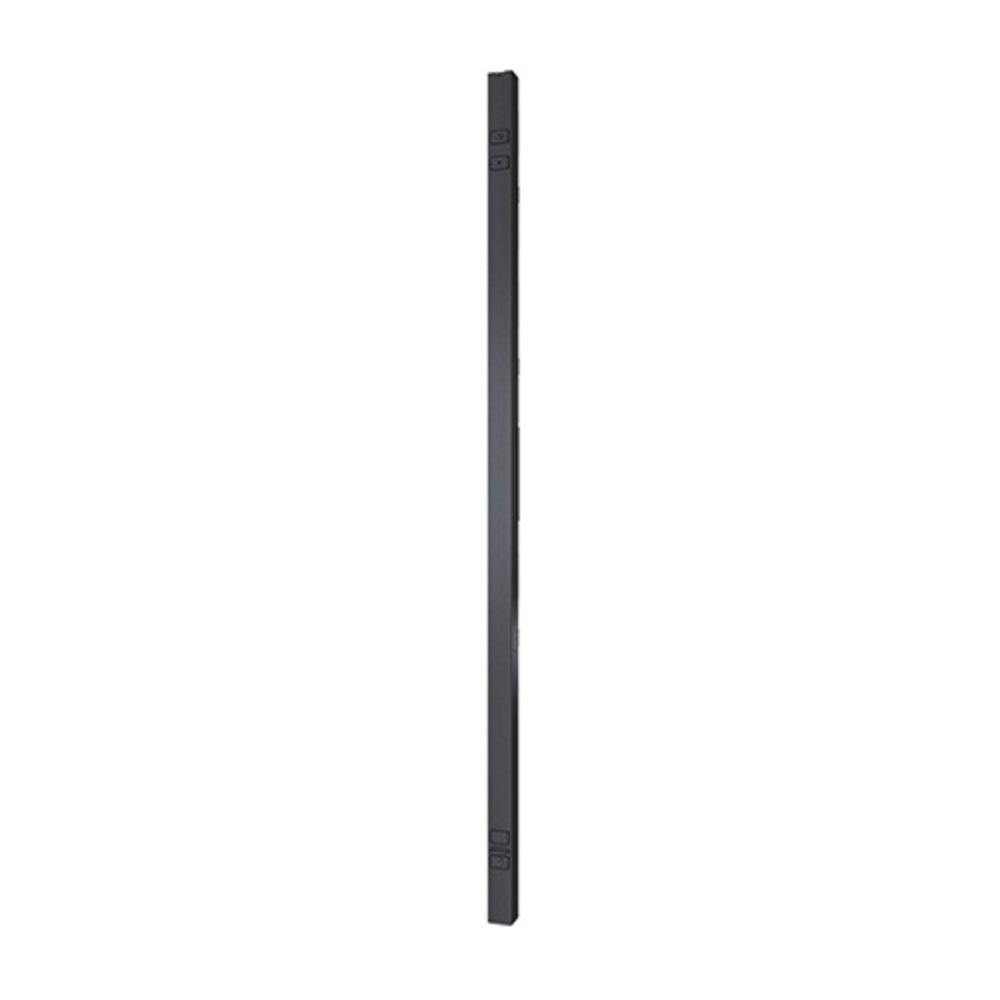

Schneider Electric APC AP8632 PDU 2G Metered Outlet Switching

Product Description:

The Schneider Electric APC AP8632 PDU 2G Metered Outlet Switching is a power distribution unit (PDU) that provides advanced power control and individual outlet power metering. It is designed to enable remote outlet level controls, allowing users to power on/off equipment, recycle power to reboot locked-up devices, and prevent unauthorized use of individual outlets. The PDU also offers power sequencing delays, load shedding prioritization, and real-time remote monitoring of connected loads. With user-defined alarms, potential circuit overloads can be detected before critical IT failures occur. The Schneider Electric APC AP8632 PDU 2G Metered Outlet Switching can be accessed, configured, and controlled through secure web, SNMP, or Telnet interfaces, and is compatible with Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules.

Features:

• PDU types: Switched
• Cable length: 3
• Mounting: Vertical
• Rack capacity: 0U
• Product color: Black
• Maximum input current per phase: 30
• Maximum current: 30
• Nominal input voltage: 100 - 120
• AC input frequency: 50 - 60
• Nominal output voltage: 100-120
• Power protection features: Overload
• Operating temperature (T-T): -5 - 45
• Storage temperature (T-T): -25 - 65
• Operating relative humidity (H-H): 5 - 95
• Storage relative humidity (H-H): 5 - 95
• Operating altitude: 0 - 3000
• Non-operating altitude: 0 - 15000
• Maximum power: 2900
• Power plug: NEMA L5-30P
• AC outlets quantity: 24
• AC outlet types: NEMA L5-20R
• RoHS compliance: Y
• Package type: Box
• Certification: cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL Listed
• Weight: 8050
• Package weight: 10130
• Dimensions (WxDxH): 55 x 51 x 1829
• Package dimensions (WxDxH): 164 x 119 x 2041

Learn More:

• Power Distribution Unit (PDU) - Wikipedia
• Schneider Electric - Wikipedia

Product: Schneider Electric APC AP8632 PDU 2G Metered Outlet Switching

Brand: APC by Schneider Electric

Model: AP8632

Shipping Weight: 22.29 lb

Shipping Height: 5.00 in

Shipping Width: 6.50 in

Shipping Length: 80.50 in
