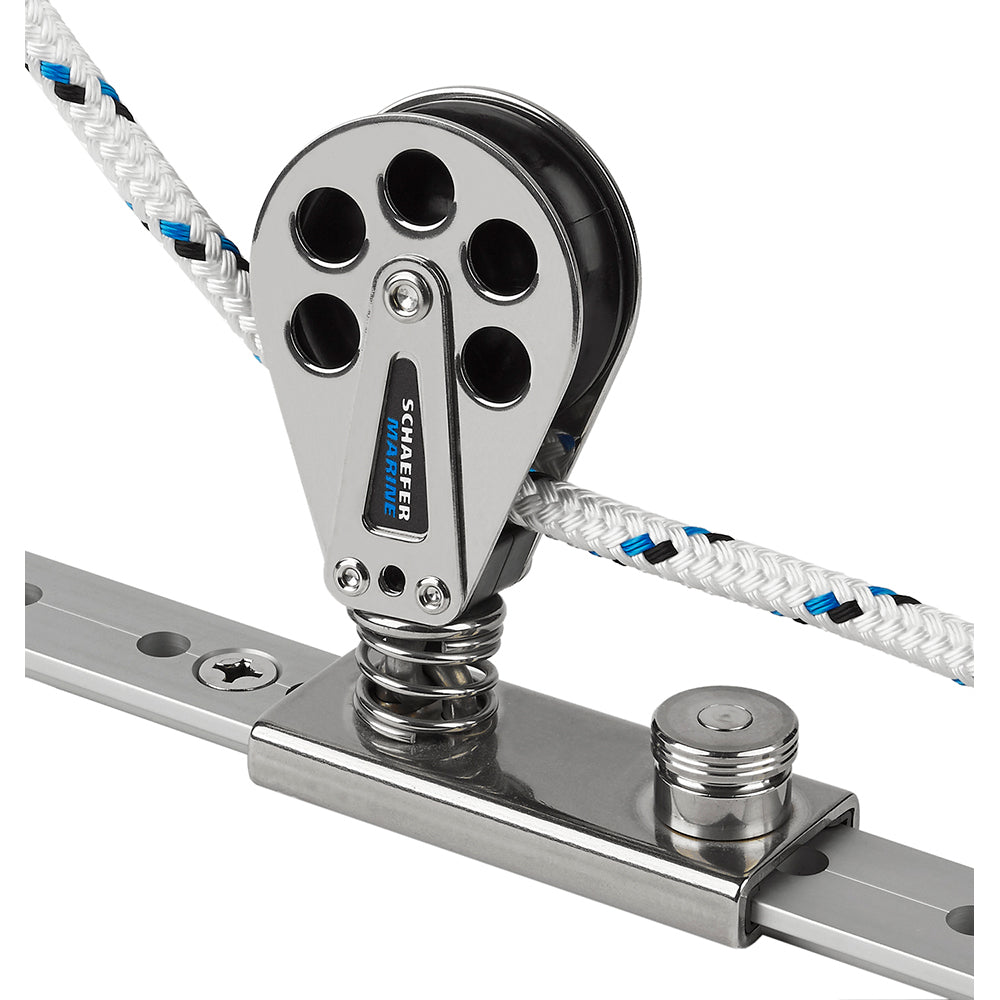

Schaefer Marine 705-92 Stainless Steel 1-1/4" T-Track Spring Loaded Slide

The Schaefer Marine 705-92 Stainless Steel 1-1/4" T-Track Spring Loaded Slide is a high-quality sailing accessory designed to ensure smooth operation and reliability. Its stainless steel construction, along with the Delrin™ sheave, guarantees durability and a high safe working load. The polyethylene liner and pin stop allow for easy adjustment, making it an ideal choice for sailors seeking convenience and performance.

Product Features:

• Spring-loaded and lined slide
• Stainless steel cheeks and slider for enhanced reliability
• Delrin™ sheave ensures smooth operation
• Polyethylene liner and pin stop for easy adjustment

Specifications:

• Track Size: 1-1/4" x 3/16" (32 mm x 5 mm)
• Max. Boat Length: 33' (10 m)
• Max. Boat Weight: 12,000 lbs. (5,455 kg)
• Max. Sail Area: 520 sq. ft. (48 m²)
• Sheave Diameter: 2-3/8" (60 mm)
• Max Line: 1/2" (12 mm)
• Length: 4" (102 mm)
• Width: 1-9/16" (39 mm)
• Height: 4-15/16" (126 mm)
• Bearing Height: 2-3/8" (67 mm)
• SWL (Safe Working Load): 2,250 lbs. (1,020 kg)
• Weight: 14 oz. (397 g)

Learn More

For more information about T-Track systems, please visit the T-Track Wikipedia page.

To learn more about sailing equipment and accessories, check out the Sailing Equipment Wikipedia page.

Product: Schaefer Marine 705-92 Spring Loaded/Lined Slide/Stainless Steel 1-1/4" T-Track

Brand: Schaefer Marine

Model: 705-92

Shipping Weight: 1.15 lb

Shipping Height: 2.00 in

Shipping Width: 4.00 in

Shipping Length: 5.00 in
