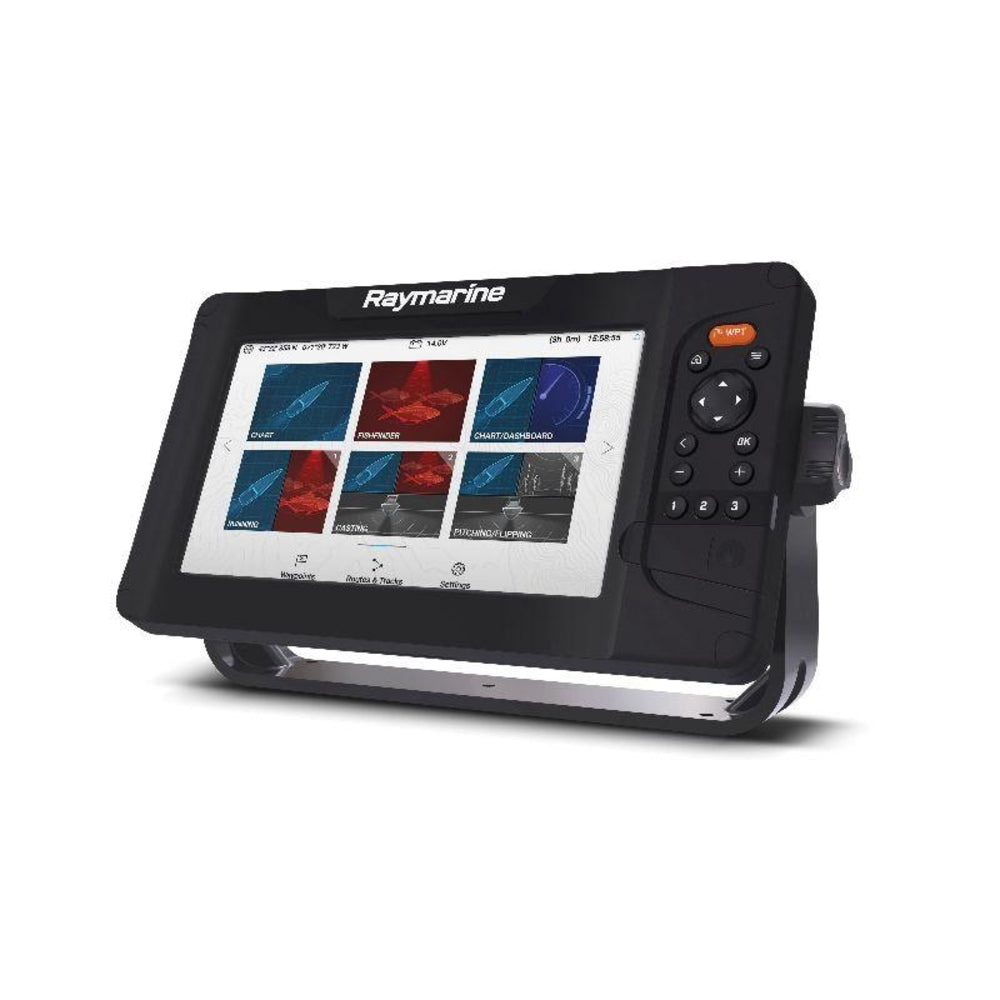

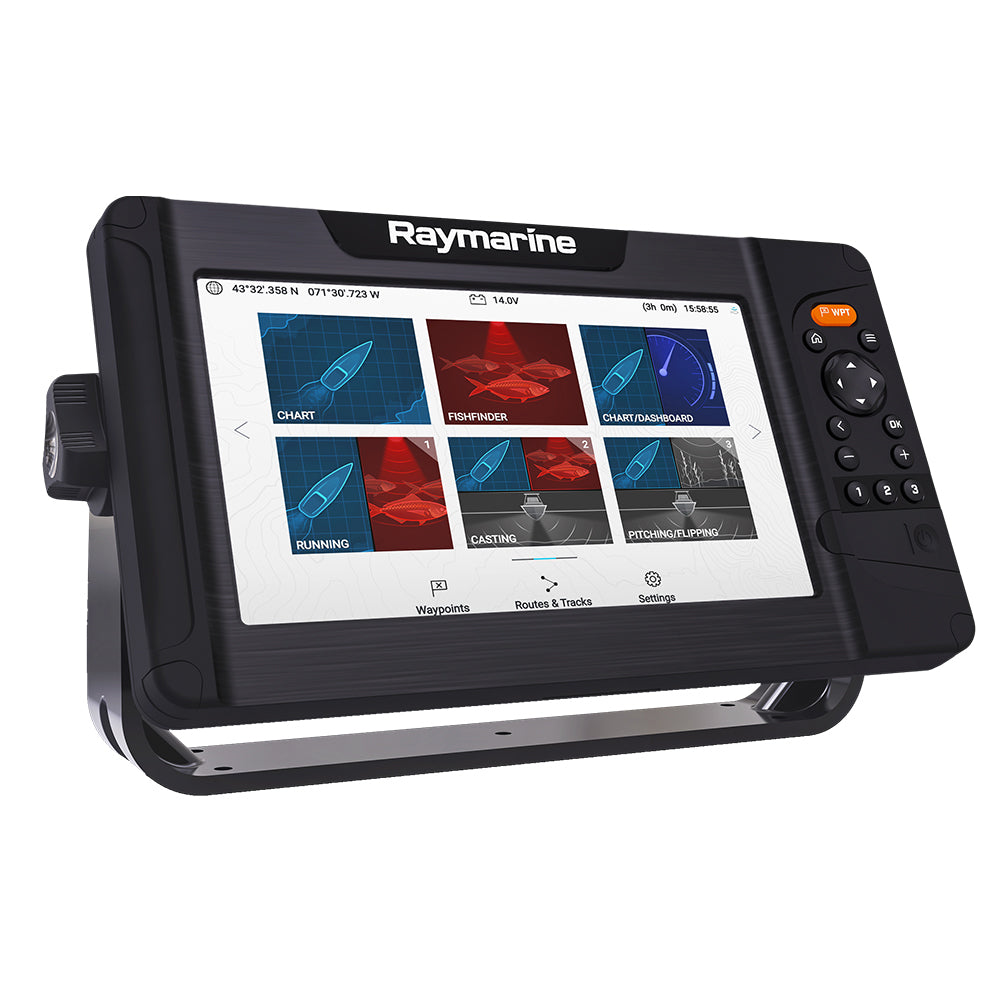

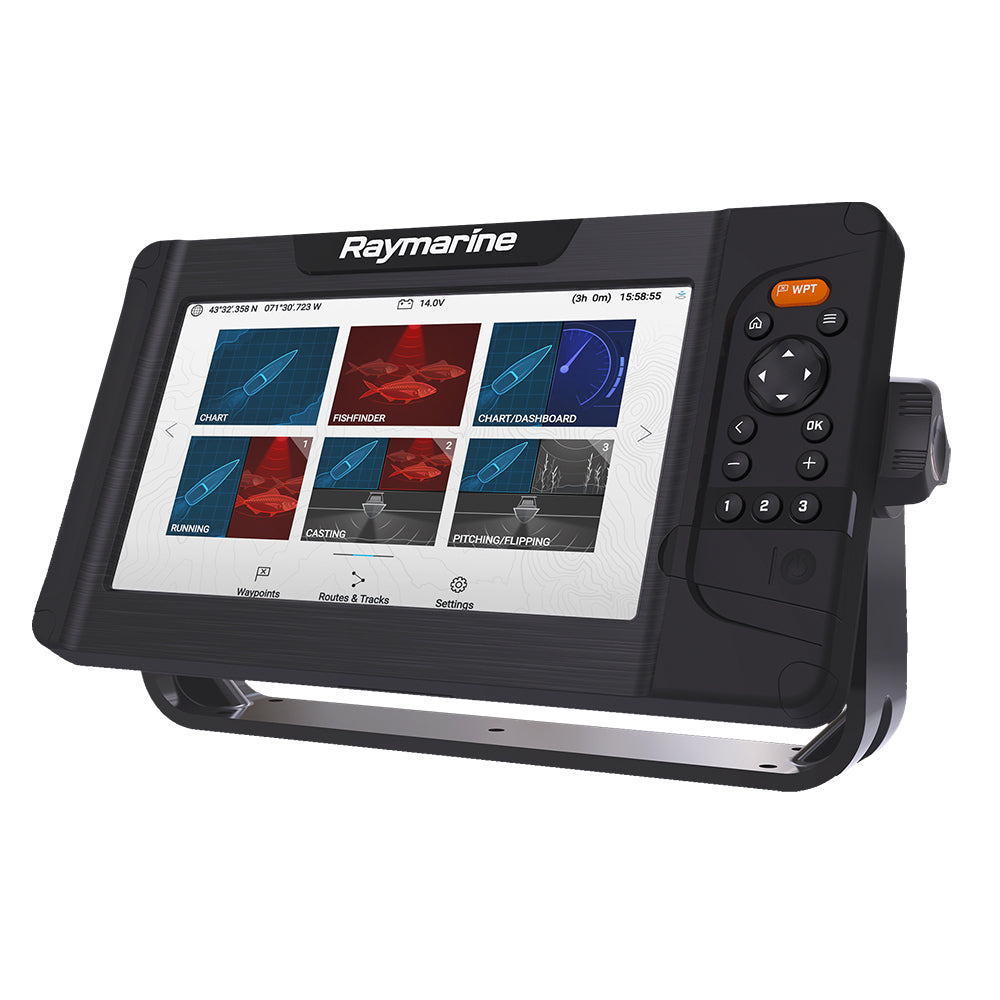

Raymarine Element 9 HV E70534 Chartplotter Fishfinder Combo (No Transducer)

The Raymarine Element 9 HV E70534 Chartplotter Fishfinder Combo (No Transducer) is a high-quality marine electronics device that combines advanced chartplotting and fishfinding capabilities. With its high-visibility sunlight viewable 9" display, this combo unit provides clear and detailed visuals even in bright outdoor conditions.

Featuring superior HyperVision CHIRP sonar technology, the Raymarine Element 9 HV achieves 3 times the clarity of conventional side and down imaging sonars. This allows you to see underwater structures, vegetation, and fish with exceptional precision. Additionally, the built-in RealVision 3D sonar provides accurate identification of ledges, channel beds, and other contour changes.

The fast quad-core processor of the Element 9 HV ensures instantaneous chart re-draw and continuous 3D rendering, while the user-friendly interface makes it easy to navigate and operate. The 1.2 megahertz HyperVision sonar offers outstanding resolution up to 100', while the 350kHz Down and SideVision delivers photo-like imaging up to 600'.

Take your 3D sonar experience to the next level with HyperVision mode, which provides unprecedented resolution and positional awareness. The dedicated keypad controls, including an oversized waypoint key for marking favorite spots, allow for simple operation and quick access to frequently used configurations.

The Raymarine Element 9 HV supports Raymarine RealBathy personal sonar mapping and Navionics SonarCharts Live, giving you the ability to create your own high-definition bathymetric maps on the fly. It also offers NMEA2000 networking for VHF, engine, tanks, and heading sensor integration.

With support for Navionics, C-MAP, and other regional charting options, the Raymarine Element 9 HV provides comprehensive chart coverage for your boating needs. Its powerful features and reliable performance make it an essential tool for anglers and boating enthusiasts.

Specifications:

• Display Size: 9.0" Optically Bonded LCD
• Display Resolution: 800 x 480 WVGA
• Display Type: Non-Touch
• Brightness: 1,500 nits
• Viewing Angle: Top 50&deg / Bottom 60&deg / Left 70&deg / Right 70&deg
• Overall Dimensions: 287 x 161 x 62mm (11.3 x 6.3 x 2.4 inches)
• Product Weight: 5.0 lbs
• Water Ingress Protection: IPx6 and IPx7
• Operating Temperature Range: -25&degC to +55&degC (-13&degF to 131&degF)
• Storage Temperature Range: -30&degC to +70&degC (-22&degF to 158&degF)
• Voltage: 12V DC (8V to 16V DC)
• Power Consumption (max 12V DC): 20 Watts
• GNSS / GPS: Built-in GNSS Receiver: GPS/GLONASS
• Sonar Type (Built-in): Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision 3D (Standard and Hyper)
• Sonar Connection: 15-pin HyperVision type connector
• Ethernet: N/A
• NMEA0183: N/A

Learn More:

• Chartplotter
• Fishfinder
• Sonar

Product: Raymarine E70534 Element 9 Hv Chartplotter And Fishfinder Combo No Transducer

Brand: RAYMARINE

Model: E70534

Shipping Weight: 7.05 lb

Shipping Height: 6.00 in

Shipping Width: 12.00 in

Shipping Length: 15.00 in
