Raymarine E70227 Eci-100 Universal Engine and Control Interface

The Raymarine E70227 Eci-100 Universal Engine and Control Interface is an innovative and affordable solution for bridging engine instrumentation and drive-by-wire steering with Raymarine autopilot and navigation systems. With a simple isolated CAN Bus solution, the ECI-100 offers reliable integration with Raymarine's latest generation of multifunction displays and delivers a seamless autopilot steering interface to Raymarine's Evolution EV-2 Drive By Wire autopilot system.

Product Features:

• A simple, single point of connection for engine data and drive-by-wire autopilot control
• Affordable and uncomplicated solution eliminates the need for multiple engine and autopilot gateways

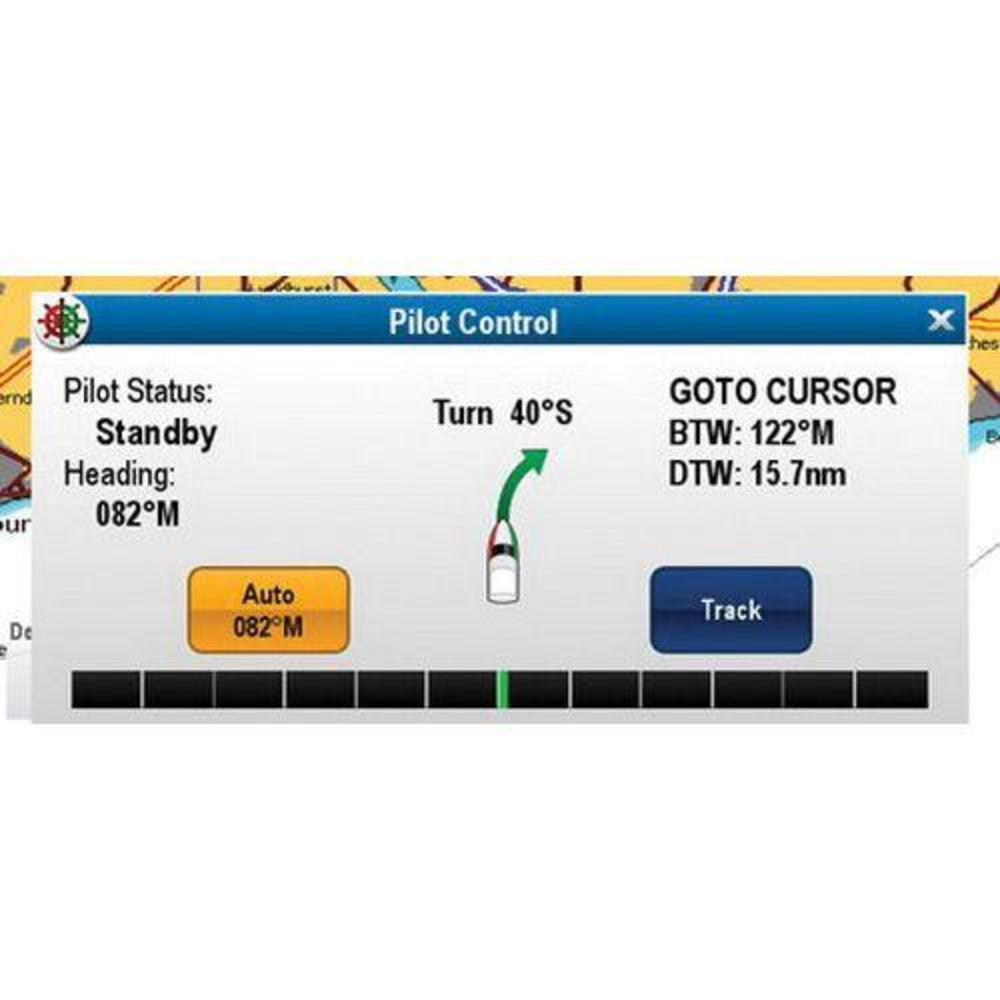

• Brings Raymarine's Evolution 9-axis sensor and adaptive autopilot control to drive-by-wire propulsion without the need for a proprietary autopilot gateway

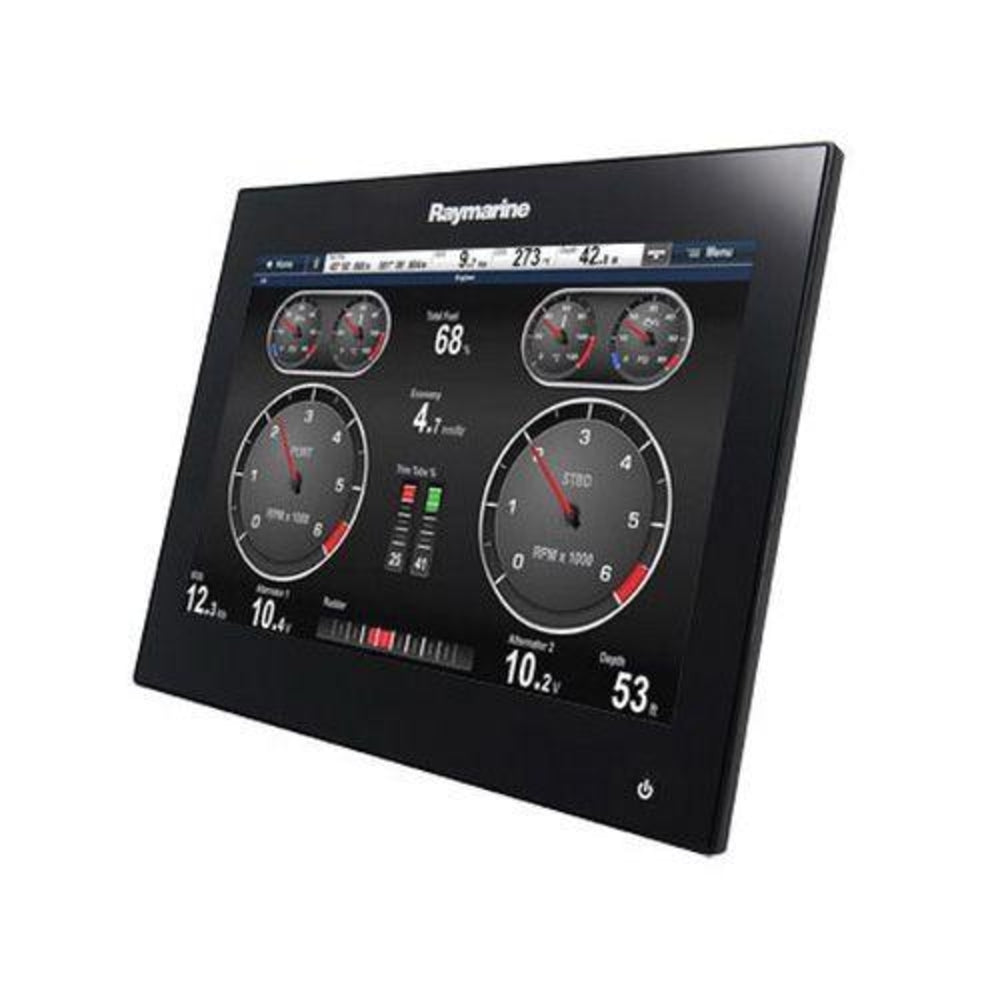

• View engine data displays and enjoy full autopilot control alongside Raymarine's industry-leading radar, sonar, and navigation technologies using a single touch screen display
• Engine information displays and autopilot control available on any display running LightHouse v8 or later, from the space-saving aSeries to the flagship big screen gS Series
• Access easy-to-customize displays to show engine performance data, fuel consumption, alarms, and much more
• View engine information displays on your smartphone or tablet with Raymarine mobile apps
• Simple installation makes engine and navigation integration a reality for virtually any size vessel

ECI-100 Engine Data Parameters:

• Engine speed
• Engine oil temperature
• Engine temperature
• Engine oil pressure
• Engine coolant pressure
• Engine fuel rate
• Boost pressure
• Battery potential
• Transmission oil pressure
• Transmission oil temperature
• Total engine hours
• Fuel tank level
• Trip fuel used (calculated by ECI-100)
• Alternator potential
• Engine torque
• Engine percent load
• Transmission gear
• VIN (not shown on the display)
• Software number (not shown on the display)

Simple Integration, Powerful Performance:

The ultra-compact ECI-100 connects directly to the industry-standard NMEA2000 or SAE* J1939 Engine Data Bus used by major marine engine manufacturers including Volvo Penta, Yamaha Marine (Command Link Plus only), Caterpillar, and Yanmar Marine. Raymarine is committed to delivering seamless integration with leading marine engines. Visit the Raymarine Wikipedia page for the latest engine compatibility information.

An industry standard DeviceNet port connects the ECI-100 to manufacturer-specific CAN bus cabling. The ECI-100 then connects to NMEA2000 networks using the SeaTalk^ng cabling system. Each of the ECI-100's isolated ports is powered independently, ensuring reliable and worry-free performance from both navigation electronics and engine systems.

Learn More:

• Raymarine on Wikipedia

Product: Raymarine E70227 Eci-100 Universal Engine And Control Interface

Brand: RAYMARINE

Model: E70227

Shipping Weight: 0.60 lb

Shipping Height: 2.00 in

Shipping Width: 6.00 in

Shipping Length: 9.00 in
