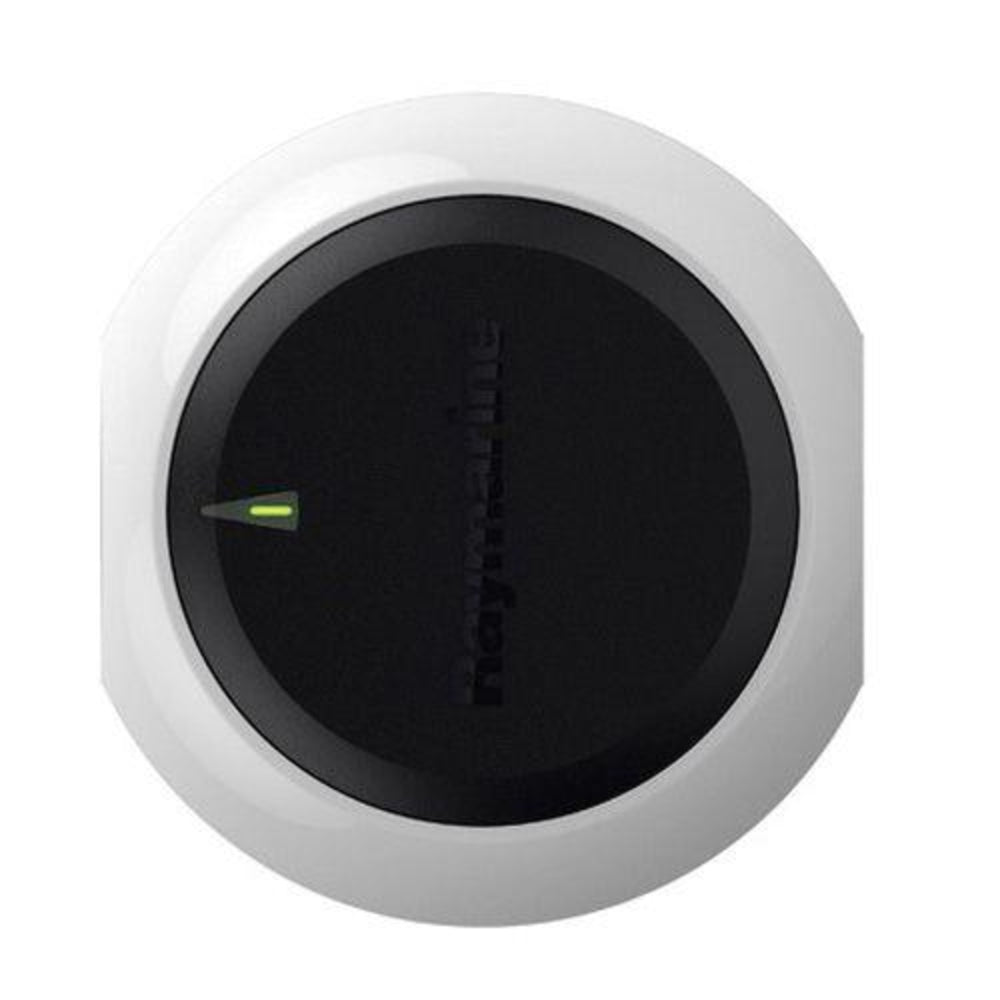

Raymarine EV-1 Evolution Autopilot Sensor E70096 - High Performance Marine Navigation

The Raymarine EV-1 Evolution Autopilot Sensor E70096 is a high-performance marine navigation device that provides accurate and reliable navigation data for your vessel. With its 3-axis digital accelerometer, 3-axis digital compass, and 3-axis gyro digital angular rate sensor, it is able to provide precise information on your vessel's orientation and movement, ensuring that your autopilot is always working at peak performance.

Features:

• 3-axis digital accelerometer
• 3-axis digital compass
• 3-axis gyro digital angular rate sensor
• SeaTalkng and NMEA 2000 DeviceNet data connections
• Waterproof rating of IPX 6
• Operating temperature range of -20°C to +55°C (-4°F to +131°F)
• EMC compliance with Europe: 2004/108/EC and Australia and New Zealand

Specifications:

• Model: E70096: EV-1
• Nominal supply voltage: 12 V (powered by SeaTalkng system)
• Operating voltage range: 10.8 V to 15.6 V dc
• Power consumption: 30 mA (taken from SeaTalkng system)
• SeaTalkng LEN: 1 (Load Equivalency Number)
• Data connections: SeaTalkng and NMEA 2000 DeviceNet (EV-2 only)
• Installation environmental: Operating temperature: -20°C to +55°C (-4°F to +131°F), Storage temperature: -30°C to +70°C (-22°F to +158°F), Relative humidity: max 93%, Waterproof rating: IPX 6

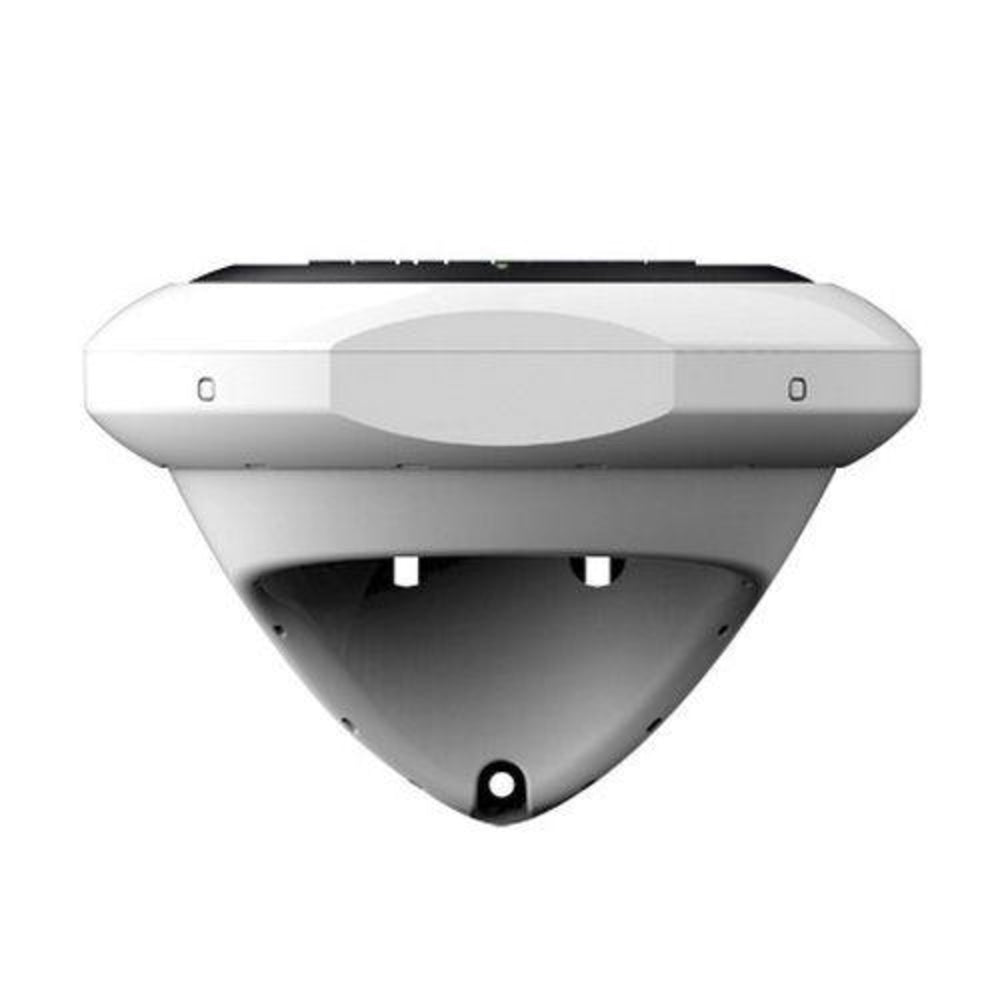

• Dimensions: Diameter: 140 mm (5.5 in), Depth (including mounting enclosure): 35 mm (1.4 in), Depth (including wall bracket): 95 mm (3.8 in)
• Weight: 0.29 kg (0.64 lbs)

Learn More

• Marine Navigation
• Autopilot

Product: RAYMARINE E70096 Ev-1 Evolution Autopilot Sensor

Brand: RAYMARINE

Model: E70096

Shipping Weight: 1.00 lb

Shipping Height: 4.00 in

Shipping Width: 8.00 in

Shipping Length: 13.00 in
