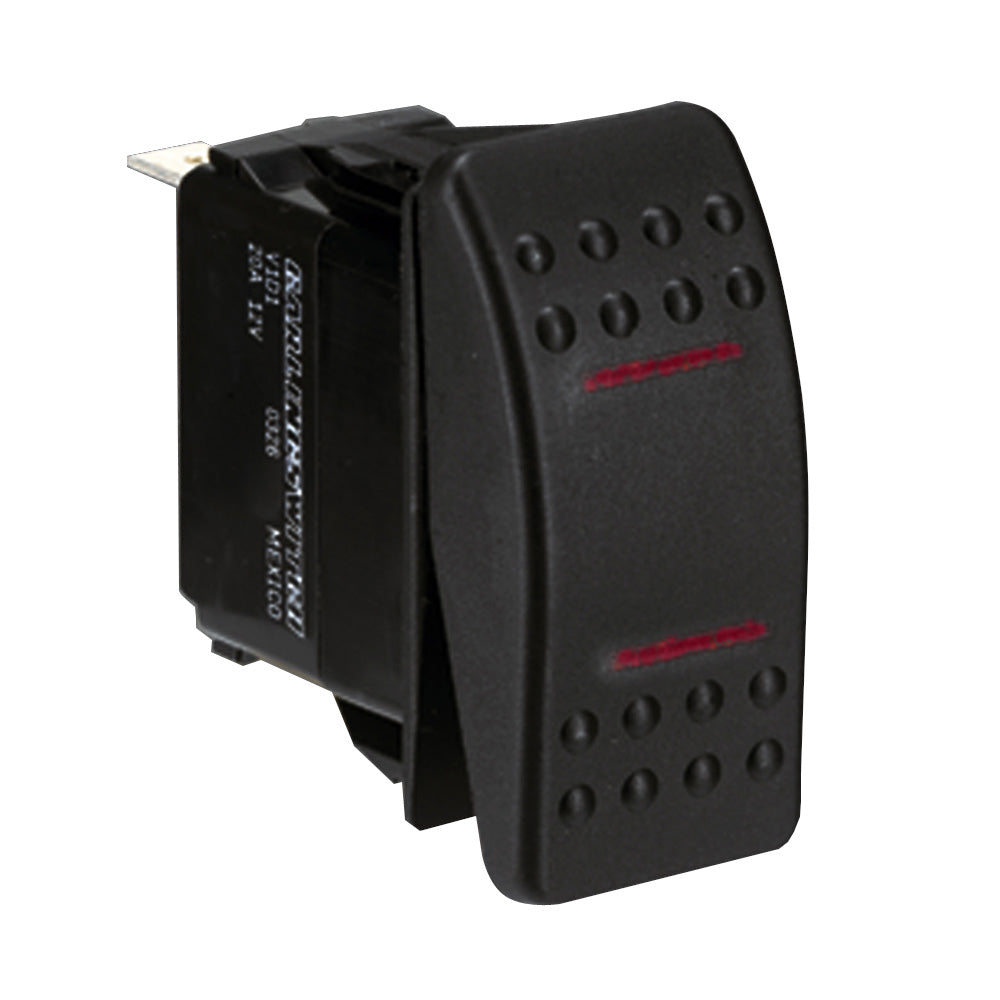

Waterproof Contura Rocker Switch - Paneltronics 001-700 SPDT On/Off

The Waterproof Contura Rocker Switch by Paneltronics is a highly durable and reliable switch designed for various applications. With its waterproof and ignition protection construction, this switch ensures optimal performance even in demanding environments. The switch features a single pole/double throw configuration, allowing for maintaining configurations.

Product Features:

• Single Pole/Double Throw - Maintaining configurations
• Sealed IP68 rated per IEC 529
• Ignition protection construction meets requirements of UL 1500 and ISO 8846
• Black textured actuators (Hard Surface with Bumps)
• Red incandescent 12VDC 20A, or 24VDC 15A (ABYC E-11.12.1.1)
• Contacts are rated at 12VDC 20A, or 24VDC 15A (ABYC E-11.12.1.1)
• DC moisture resistant Per Mil-Std 202F, Method 107F
• Optional rubber gaskets provide a watertight panel seal meets IP67 (P/N 004-176)
• 1/4" male tab terminals are standard without barriers (ABYC E-11-14.5.4 Exception)
• Hole plug Black (P/N 001-295)

Specifications:

• Switch Type: Single Pole/Double Throw (SPDT)
• Actuator Type: Rocker Switch (Waterproof Contura)
• IP Rating: IP68 (per IEC 529)
• Ignition Protection: UL 1500 and ISO 8846 compliant
• Actuator Color: Black
• Indicator Color: Red
• Voltage Rating: 12VDC (20A), 24VDC (15A)
• Contact Rating: 12VDC (20A), 24VDC (15A)
• Moisture Resistance: DC moisture resistant per Mil-Std 202F, Method 107F
• Terminal Type: 1/4" male tab terminals without barriers (ABYC E-11-14.5.4 Exception)
• Optional Gasket: Rubber gasket available for watertight panel seal (P/N 004-176)
• Hole Plug: Black (P/N 001-295)

Learn More:

• Single Pole/Double Throw Switch on Wikipedia
• IP Rating (Ingress Protection) on Wikipedia
• UL Standards on Wikipedia
• ISO 8846 on Wikipedia
• ABYC (American Boat and Yacht Council) on Wikipedia
• MIL-STD-202 on Wikipedia

Product: Paneltronics 001-700 Spdt On/Of On Waterproof Contura Rocker Switch

Brand: Paneltronics

Model: 001-700

Shipping Weight: 0.05 lb

Shipping Height: 1.00 in

Shipping Width: 1.00 in

Shipping Length: 1.00 in
