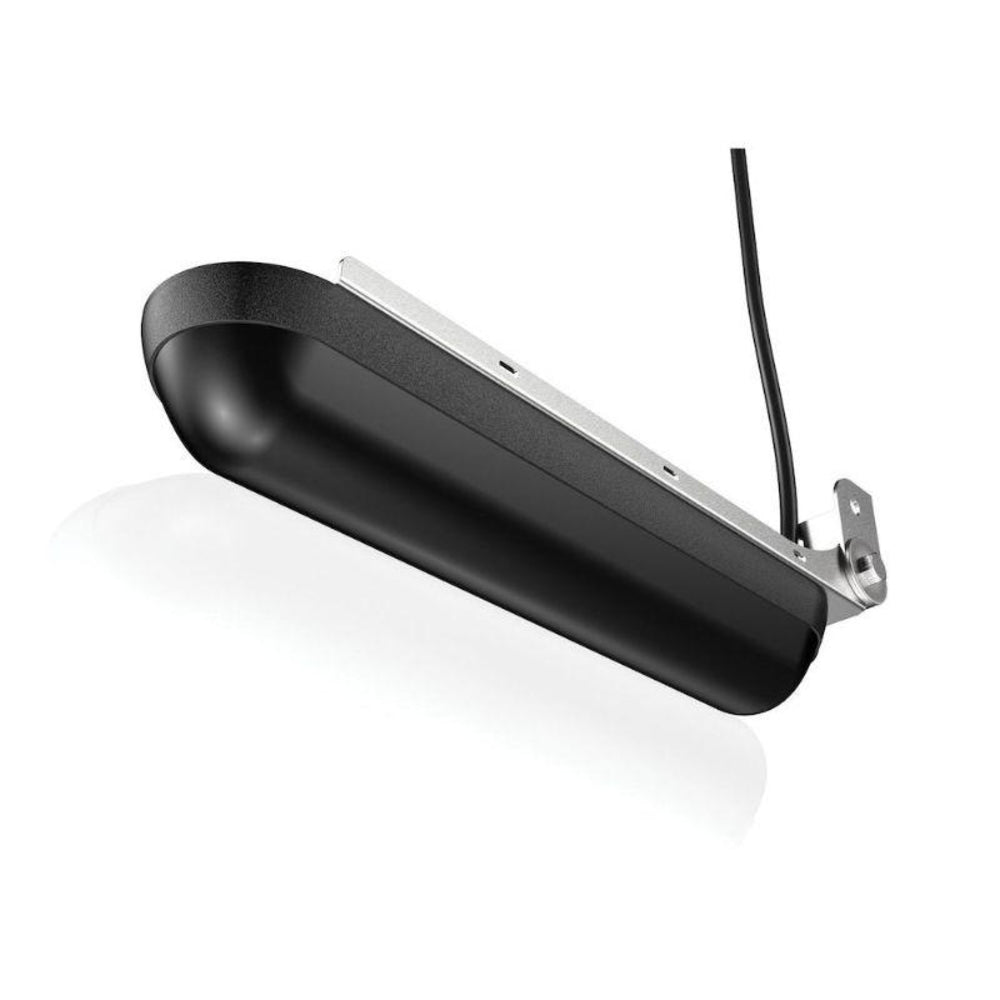

Navico 000-14489-001 Active Imaging 3-in-1 Transom Mount Transducer

The Navico 000-14489-001 Active Imaging 3-in-1 Transom Mount Transducer is a high-performance scanning sonar technology that provides incredibly detailed, high-resolution imaging sonar without sacrificing any range. With its innovative design and advanced features, this transducer is the perfect choice for anglers and boating enthusiasts.

Product Features:

• Active Imaging transducers utilize new scanning sonar technology for detailed, high-resolution imaging sonar
• Improved SideScan beam direction for increased resolution and range performance
• Combines Active Imaging scanning sonar with traditional Medium/High CHIRP sonar element for easy installation
• Operates at 800kHz or 455kHz with maximum ranges of 150ft (800kHz) or 300ft (455kHz)
• Utilizes latest techniques in sonar signal generation for optimal performance
• Constructed with a polymer that reacts closely to water, ensuring no signal loss during transmit or receive
• Includes separate sonar elements for SideScan transmit and receive for fast ping speed and better range performance
• Offers high-resolution detail for a comprehensive underwater view
• Compatible with High resolution IPS screens of NSS evo3 and HDS Live
• Combines CHIRP sonar with Active Imaging Side and Down views for total coverage
• No additional modules or hardware required for use with next-generation displays

Specifications:

• Operating temperature: -15&degC to +55&degC (+5&degF to +131&degF)
• Storage temperature: -30&degC to +70&degC (-22&degF to +158&degF)
• Cable length: 7.6 m (25 ft)
• Mounting options: Transom, flush step, and jackplate mounting
• Connector: 9 pin
• Output: Traditional, SideScan imaging, DownScan imaging, and temperature
• Frequencies: Traditional - 200 kHz, High CHIRP - 83 kHz, Medium Chirp - 455 kHz, 800 kHz
• Max depth: Traditional - 305 m (1000 ft), DownScan - 91 m (300 ft), SideScan - 91 m (300 ft) side range at 455 kHz, 46 m (150 ft) side range at 800 kHz
• Operating speed: Traditional - 48 knots (55 mph), DownScan and SideScan - 9 knots (10 mph)
