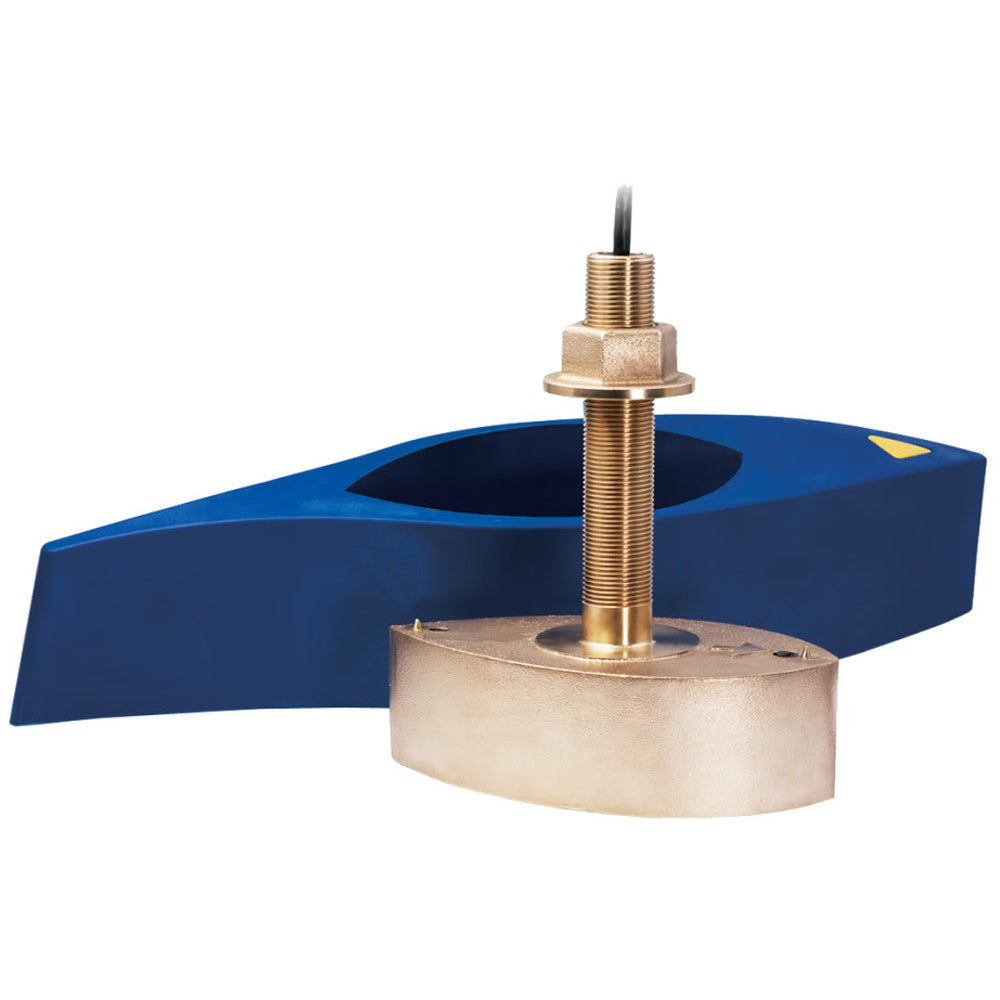

Navico 000-13771-001 Xsonic B275Lh-W Bronze Th Transducer 9 Pin

The Navico 000-13771-001 Xsonic B275Lh-W Bronze Th Transducer 9 Pin is a high-quality transducer designed for marine applications. It offers a wide range of features and specifications to enhance your fishing experience.

Features:

• Depth & fast-response water-temperature sensor
• Low—CHIRPS from 42 kHz to 65 kHz; ?25&deg to 16&deg beamwidth
• High—CHIRPS from 150 kHz to 250 kHz; 25&deg constant beamwidth
• 123 kHz of total bandwidth from one transducer
• Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
• Boat Size: 8 m (25') and above
• Hull Type: Fiberglass or wood
• Bronze transducer housing
• Hull Deadrise: Up to 20&deg with fairing

Get more coverage under the boat with Airmar's new wide beam Chirp product line. Offering a high frequency range of 150-250 kHz and a constant 25&deg beam width, these transducers are truly broadband at its best. In addition to improving the performance of Chirp-ready echosounders, anglers using the new wide beam transducers will achieve twice the coverage under the boat compared to our current high frequency Chirp transducers.

A unique property of the new high frequency transducers is that the beam width is a constant 25&deg angle across the entire frequency band. Now, in addition to providing vast bottom coverage and precise fish detection in the upper water column that can sometimes go unseen with our narrow beam transducers, Airmar's new wide beam format also creates crisper and larger return images on the display. We've got you covered.

Specifications:

• Model: 000-13771-001
• Transducer Type: Bronze Thru Hull
• Connector Type: 9 Pin
• Low Frequency CHIRP Range: 42 kHz to 65 kHz
• Low Frequency Beamwidth: 25&deg to 16&deg
• High Frequency CHIRP Range: 150 kHz to 250 kHz
• High Frequency Beamwidth: 25&deg
• Total Bandwidth: 123 kHz
• Compatible Boat Size: 8 m (25') and above
• Hull Type Compatibility: Fiberglass or wood
• Hull Deadrise Compatibility: Up to 20&deg with fairing

Learn More:

For more information about transducers, please visit the Transducer page on Wikipedia.

Product: Navico 000-13771-001 Xsonic B275Lh-W Bronze Th Transducer 9 Pin

Brand: Navico

Model: 000-13771-001

Shipping Weight: 23.70 lb

Shipping Height: 7.00 in

Shipping Width: 18.00 in

Shipping Length: 26.00 in
