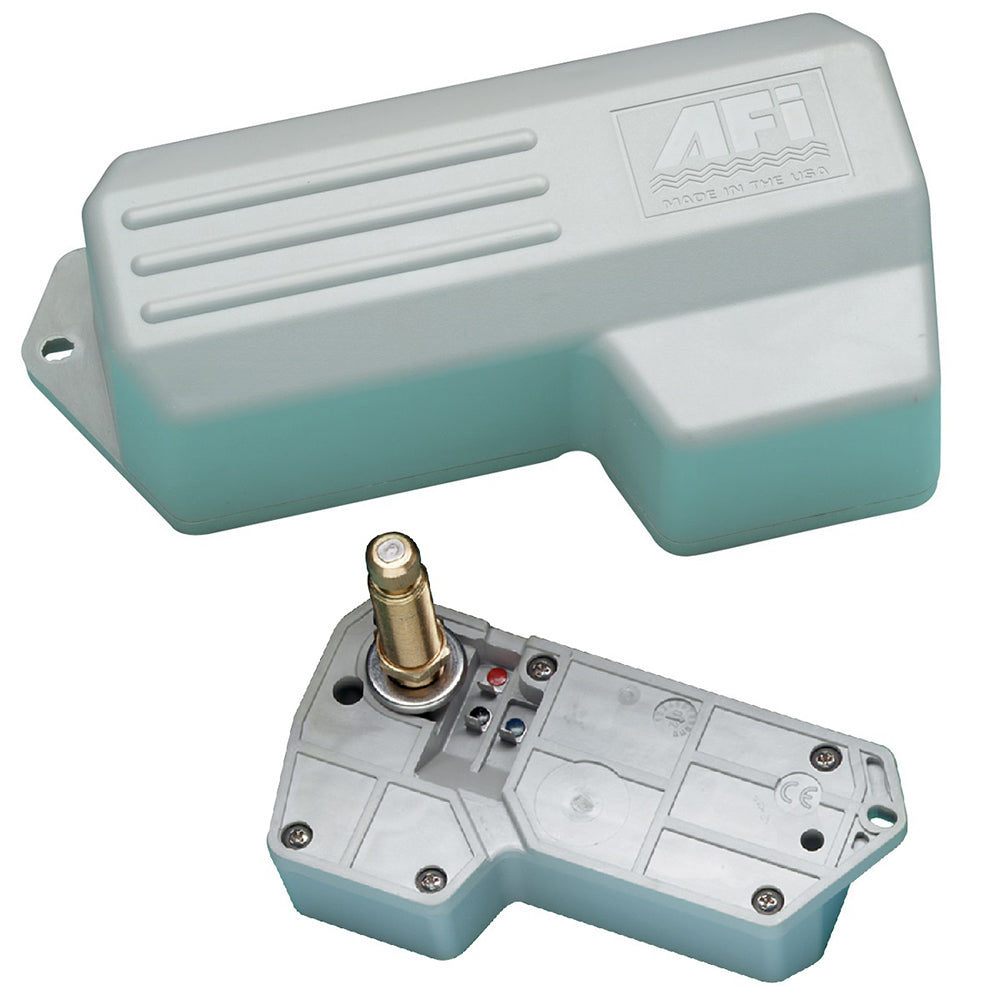

Marinco 37161 Wiper Motor 1000 Series 12V 2.5" Shaft 65&deg Sweep

The Marinco 37161 Wiper Motor is a high-quality wiper motor designed for marine applications. With its fully sealed waterproof housing made of UV stabilized, high-temperature, high-impact thermoplastic, this wiper motor ensures durability and reliability even in harsh marine environments. It is specifically designed to power 18" Deluxe arm and 18" Deluxe blade combination at sweep sets of 80 degrees or less, or 16" Deluxe arm and 16" Deluxe blade combinations at a sweep set of 110 degrees.

Features:

• Factory pre-set sweep of 80 degrees or 110 degrees adjustable to 50 degrees, 65 degrees, 80 degrees, or 110 degrees
• 0.625" diameter shaft (16 mm)
• 12 volt heavy-duty motor with anti-rotation drive shaft
• Knurled drive shaft and solid brass arm drive nut
• Coast to park with adjustable right or left self parking
• Retail version includes 5 amp fuse and holder (on/off switch not included)
• RF shielded circuitry
• Weight: 1.75 lbs
• Available in two shaft lengths: 1.5" and 2.5" (includes .5" length of knurled arm fitting)
• Measures approximately 6.625" L x 3.375"W x 2" D
• Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
• Stall current: 9.8-10.0 amps
• No load current: 0.8-1.2 amps

Specifications:

• Waterproof housing: Yes
• Material: UV stabilized, high-temperature, high-impact thermoplastic
• Sweep sets: 80 degrees or less (18" Deluxe arm and 18" Deluxe blade) or 110 degrees (16" Deluxe arm and 16" Deluxe blade)
• Shaft diameter: 0.625" (16 mm)
• Motor voltage: 12V
• Drive shaft: Anti-rotation
• Arm drive nut: Solid brass
• Self parking: Adjustable right or left
• Includes: 5 amp fuse and holder (on/off switch not included)
• RF shielding: Yes
• Weight: 1.75 lbs
• Shaft lengths available: 1.5" and 2.5" (including .5" length of knurled arm fitting)
• Dimensions: Approximately 6.625" L x 3.375"W x 2" D
• Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
• Stall current: 9.8-10.0 amps
• No load current: 0.8-1.2 amps

Learn More:

For more information about wiper motors, you can visit the following Wikipedia pages:

• Wiper Motor
• Marine Electronics

Product: Marinco 37161 Wiper Motor 1000 Series 12V 2.5" Shaft 65 Sweep - 65 Sweep 12V Wiper Motor

Brand: Marinco

Model: 37161

Shipping Weight: 1.80 lb

Shipping Height: 2.00 in

Shipping Width: 4.00 in

Shipping Length: 7.00 in
