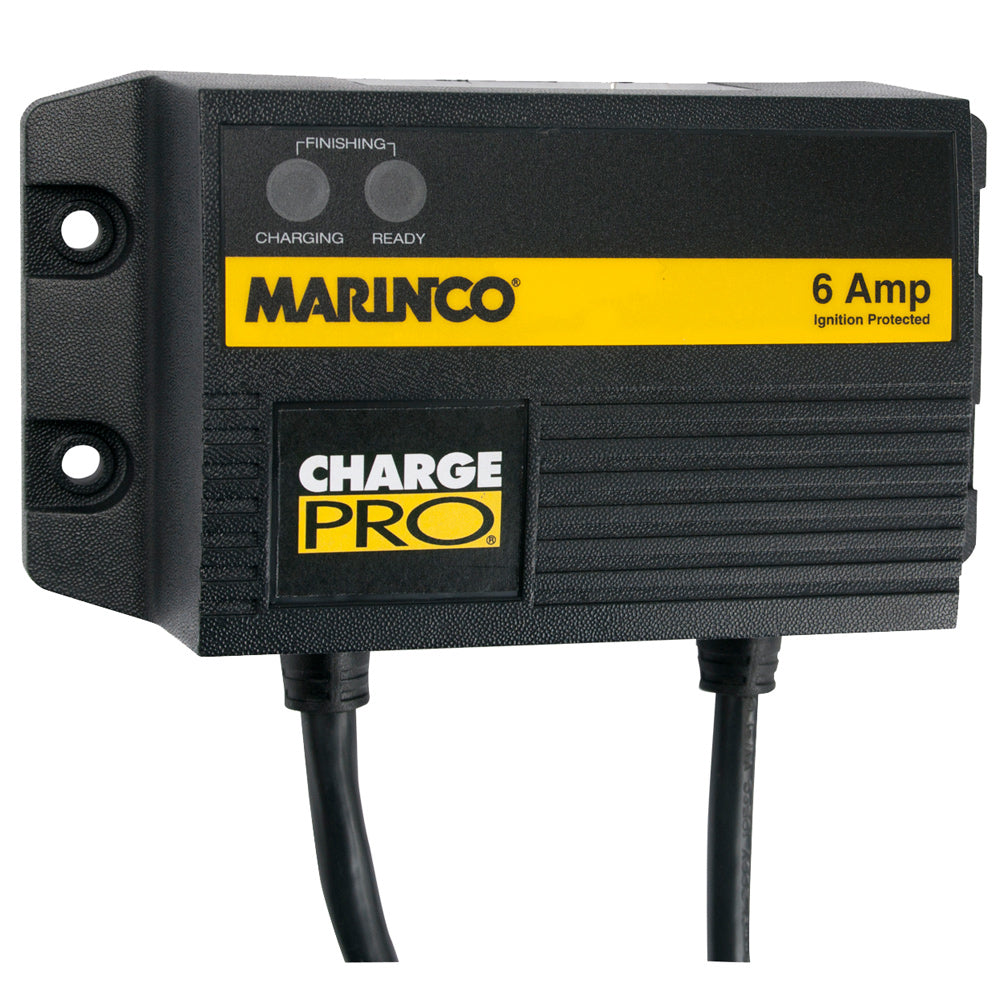

Marinco 28106 On-Board 12V 6A 1 Bank Battery Charger

The Marinco 28106 On-Board Battery Charger is a high-performance charger designed for harsh marine and industrial environments. It is capable of charging flooded, AGM, or Gel batteries and is microprocessor controlled for accurate charging. The Sense-Send™ technology senses the power needs of each battery and sends the correct charge. The charger is completely sealed and epoxy-filled, making it waterproof and ideal for use in moist and salt environments. It has non-corroding housing for ultimate reliability and meets global industry standards, including UL, CE, CSA, ABYC, and California efficiency regulations (CEC).

Features

• Charge flooded, AGM or Gel batteries
• Microprocessor controlled for accurate charging
• Intuitive operation
• Sense-Send™ technology senses the power needs of each battery and sends correct charge
• Isolated outputs
• Outputs can be put in series or parallel for higher voltage or current
• Completely sealed, epoxy filled
• IP68 waterproof
• Designed for harsh marine and industrial environments ? moisture, salt, shock and vibration tested
• Non corroding housing for ultimate reliability
• Meet global industry standards including UL, CE, CSA, ABYC, California efficiency regulations (CEC)
• Footprint same as former Charge Pro Guest Chargers
• ConnectCharge Plug for easy assembly to inlet (Item #150CCI optional) with no wiring

Specifications

• Model: 28106
• Input voltage: 115 V 50/60 Hz AC
• Input Amps (Max): 2.0 Amps
• Input Voltage Range: 90-265A AC 50/60Hz
• Banks: 1
• Output Volts: 12V DC
• Absorption Charge voltage (per bank): 14.3 V +/- 0.20 V
• Float Charge Voltage (per bank): 13.3 V +/- 0.20 V
• Charging current: 6 amp
• Rechargeable battery type: Any 12 V lead acid batteries (Flooded and AGM)
• Battery Charge capacity (based on 50% drained battery): Group 24 through 31 (up to 120 Amp-Hours)
• AC Cable Length: 6 Ft (1.8M)
• DC Cable Length: 4 Ft (1.2M)
• Protection type: IP68 (casing)
• Dimensions: 3.5" L x 6.4" W x 2.3" 89mm L x 198mm W x 58mm D
• Weight: N/A

Learn More

• Battery Charger
• Lead-acid Battery

Product: Marinco 28106 On-Board 12V 6A 1 Bank Battery Charger

Brand: Guest

Model: 28106

Shipping Weight: 3.40 lb

Shipping Height: 3.00 in

Shipping Width: 7.00 in

Shipping Length: 9.00 in
