Maretron SSC300-01 Compass Cables - Solid-State Rate & Gyro Technology

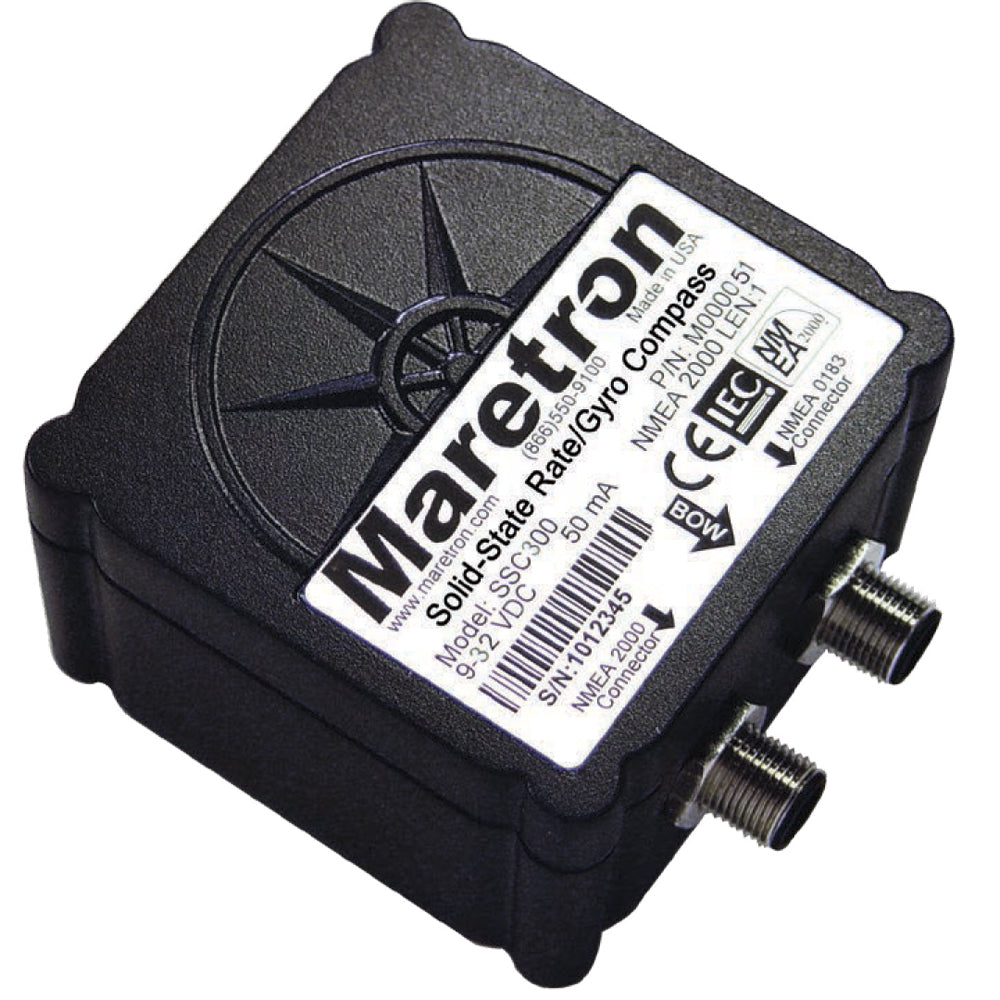

The Maretron SSC300-01 Compass Cables is a solid-state rate/gyro electronic compass that delivers precise and reliable heading information ten times per second, with vessel attitude including pitch and roll readings once per second. It is factory calibrated for maximum accuracy and implements the second generation of Maretron's award-winning compass technology. The SSC300-01 provides better than 0.7x heading accuracy through q45x of roll and pitch angle and better than 1x roll and pitch accuracy in static conditions.

The Maretron SSC300-01 Compass Cables is designed with a micromachined 3-axis rate gyro, which is used in conjunction with a 3-axis accelerometer and advanced stabilization algorithms to provide accurate, stable readings during dynamically changing conditions such as hard turns or rough seas. This makes it an ideal heading sensor for autopilot or radar overlay applications.

The SSC300-01 is certified to the NMEA 2000 network standard and compatible with the NMEA 0183 digital interface standard. It connects directly with any NMEA 2000 network and with the optional NMEA 0183 cable accessory, with NMEA 0183 listeners to share information with navigational software, chart plotters, autopilots, and dedicated instrument displays - including Maretron's N2KView vessel monitoring system or Maretron's DSM150/DSM250 color graphics displays.

The Maretron SSC300-01 Compass Cables can be automatically calibrated for deviation and its dynamic accuracy is improved with advanced digital filtering of the 3-axis magnetometer, 3-axis accelerometer, and rate gyro. It also features an IP67 waterproof enclosure.

Features:

• Better than 0.7x heading accuracy in static conditions
• Better than 1.5x heading accuracy in dynamic conditions
• Better than 1x/second rate of turn in
• Better than 1x pitch/roll accuracy
• Three-axis magnetometer, three-axis rate gyro, and three-axis accelerometer
• Outputs NMEA 0183 and NMEA 2000 data simultaneously
• IP67 waterproof enclosure

Applications:

• Navigation
• Autopilot
• Radar stabilization
• Satellite antenna stabilization
• Swing meter

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More:

• Gyroscope
• Accelerometer
• Magnetometer
• NMEA 0183
• NMEA 2000

Product: Maretron SSC300-01 Compass Cables - Solid-State Rate & Gyro Technology

Brand: Maretron

Model: SSC300-01

Shipping Weight: 1.00 lb

Shipping Height: 4.00 in

Shipping Width: 7.00 in

Shipping Length: 10.00 in
