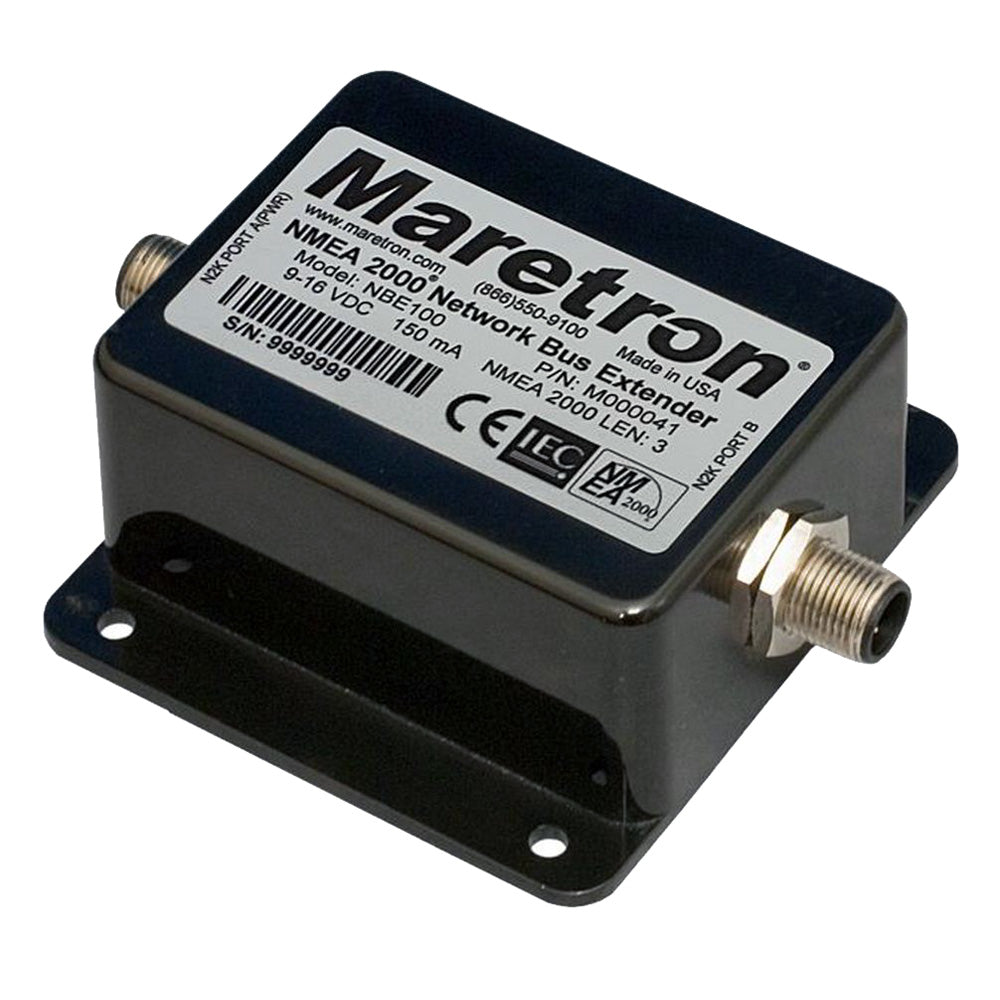

Maretron NBE100-01 Network Bus Extender - NMEA 2000 Compatible

The Maretron NBE100-01 Network Bus Extender allows you to extend the maximum node count, network trunk length, and cumulative drop length of any NMEA 2000 network. This device solves bus errors and other electrical issues caused by exceeding any of these limitations and makes design of large networks easier. The NBE100-01 splits a single large NMEA 2000 network into two smaller electrical segments, allowing you to exceed the 50 node limitation, 200m trunk length limitation, and 78m cumulative drop length limitation on a NMEA 2000 network. The device allows all NMEA 2000 devices to operate as if they were still on a single NMEA 2000 network. Advanced priority-based message routing ensures that higher-priority messages are always prioritized over lower-priority messages, enabling predictable and reliable network operation.

Features:

• Segments a single large NMEA 2000 network into two smaller electrical segments
• Allows you to exceed the 50 node limitation on a NMEA 2000 network
• Allows you to exceed the 200m trunk length limitation on a NMEA 2000 network
• Allows you to exceed the 78m cumulative drop length limitation on a NMEA 2000 network
• Allows all NMEA 2000 devices to operate as if they were still on a single NMEA 2000 network
• Priority-based message routing ensures higher-priority messages get through the bus extender first
• Optically isolates network segments, increasing signal integrity and network reliability

Specifications:

• Part #: NBE100-01
• NMEA 2000 Compatible
• Maximum node count: 100 (two 50-node segments)
• Maximum network trunk length: 400m (two 200m segments)
• Maximum cumulative drop length: 156m (two 78m segments)
• Dimensions: 5.5" x 3.2" x 1.3"
• Weight: 0.4 lbs

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More:

• NMEA 2000 on Wikipedia

Product: Maretron NBE100-01 Network Bus Extender - NMEA 2000 Compatible

Brand: Maretron

Model: NBE100-01

Shipping Weight: 0.70 lb

Shipping Height: 1.00 in

Shipping Width: 4.00 in

Shipping Length: 6.00 in
