Maretron DG1-100C 100m Mid Bulk Cable Gray - 1 Piece

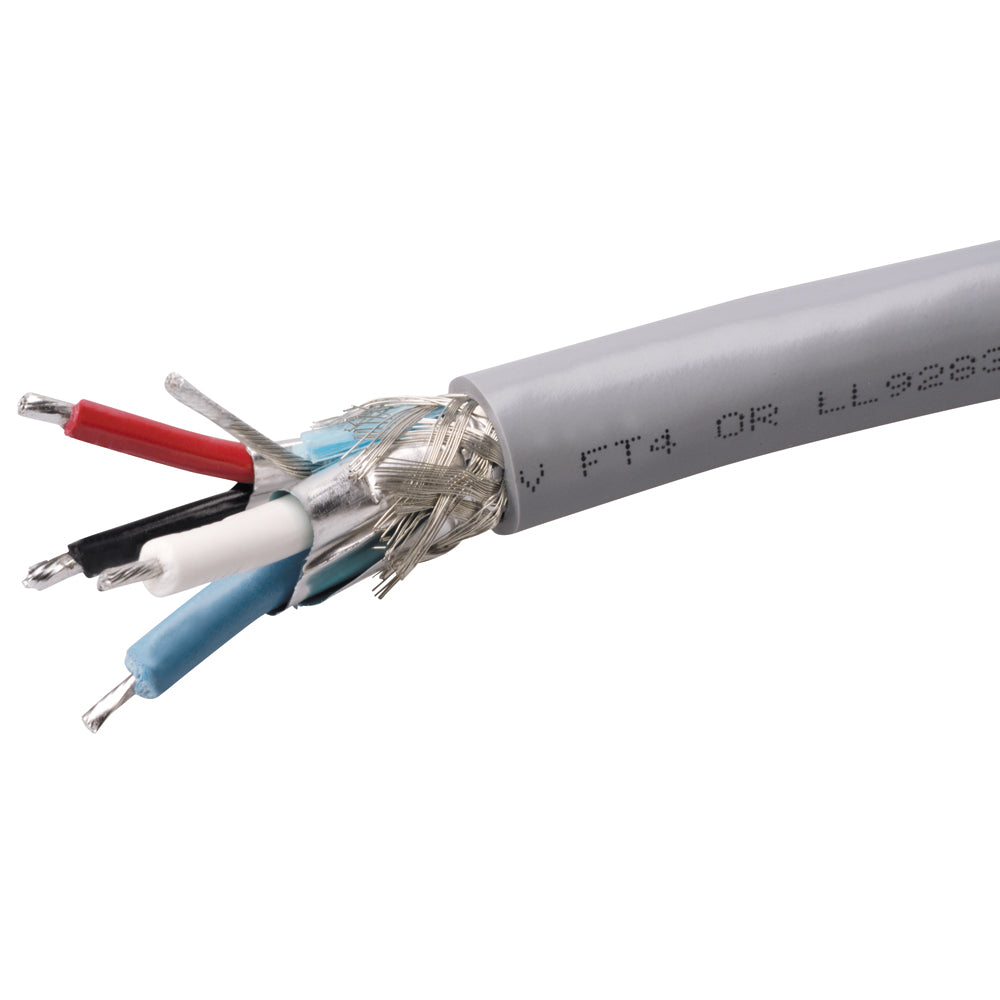

The Maretron DG1-100C 100m Mid Bulk Cable Gray is a high-quality cable designed for use in marine environments. It is specifically designed to be used in NMEA 2000 networks and is approved by NMEA for this purpose. The cable features a gray PVC outer jacket and is constructed with 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, and 20 (0.81mm) AWG drain wire. The cable is also shielded with three levels of foil for maximum protection against interference.

Specifications

• Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1
• Insulation Material: PE (data wires), PVC (power wires)
• Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

• Wire: 2x16 (1.29mm) AWG
• Resistance/Conductor: 4.1 Ohms/1000 ft max
• Max Amperage: 14 Amps
• Color Code: Red/Black

• Wire: 2x20 (0.81mm) (AWG)
• Characteristic Impedance: 120 Ohms +/- 10%
• Capacitance: 10.75 pF/ft
• Color Code: White/Blue

• UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
• CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC-61162-3

Learn More

• NMEA 2000 on Wikipedia
• Electrical Shielding on Wikipedia

Product: Maretron DG1-100C 100m Mid Bulk Cable Gray - 1 Piece

Brand: Maretron

Model: DG1-100C

Shipping Weight: 25.00 lb

Shipping Height: 11.00 in

Shipping Width: 12.00 in

Shipping Length: 12.00 in
