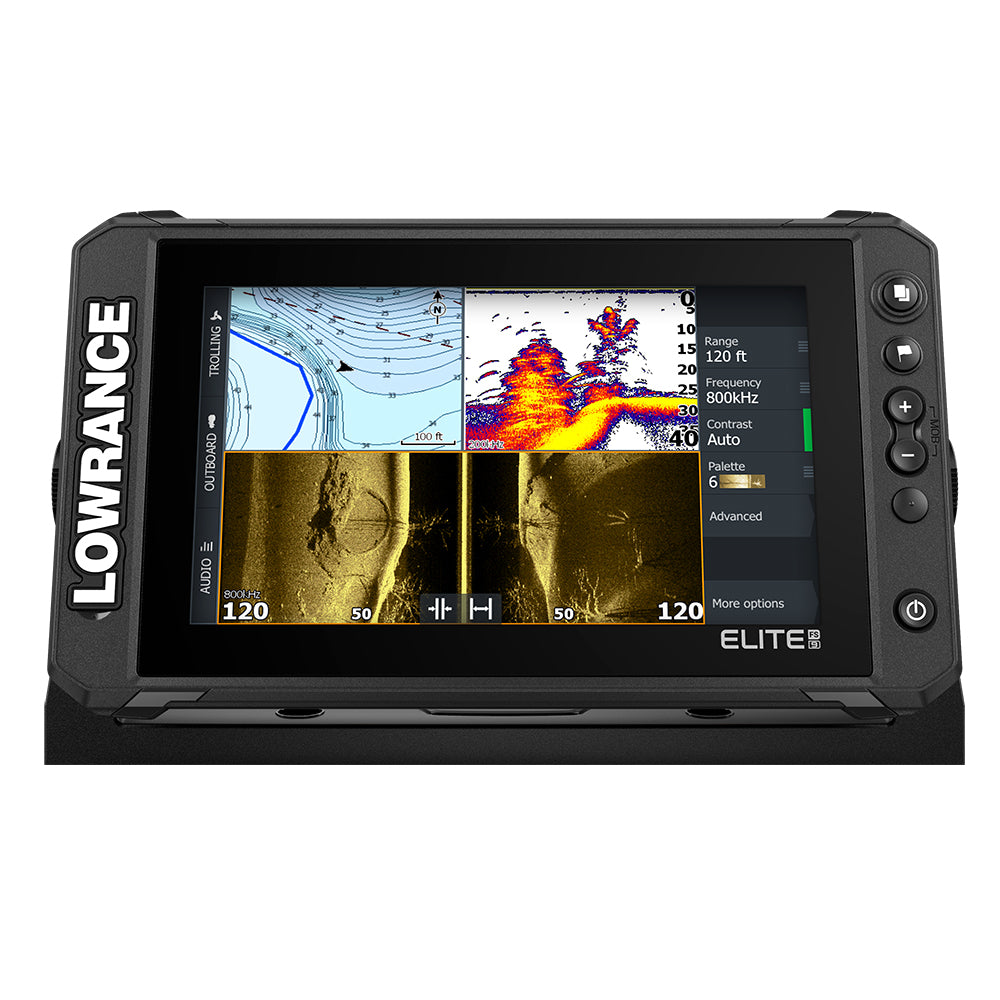

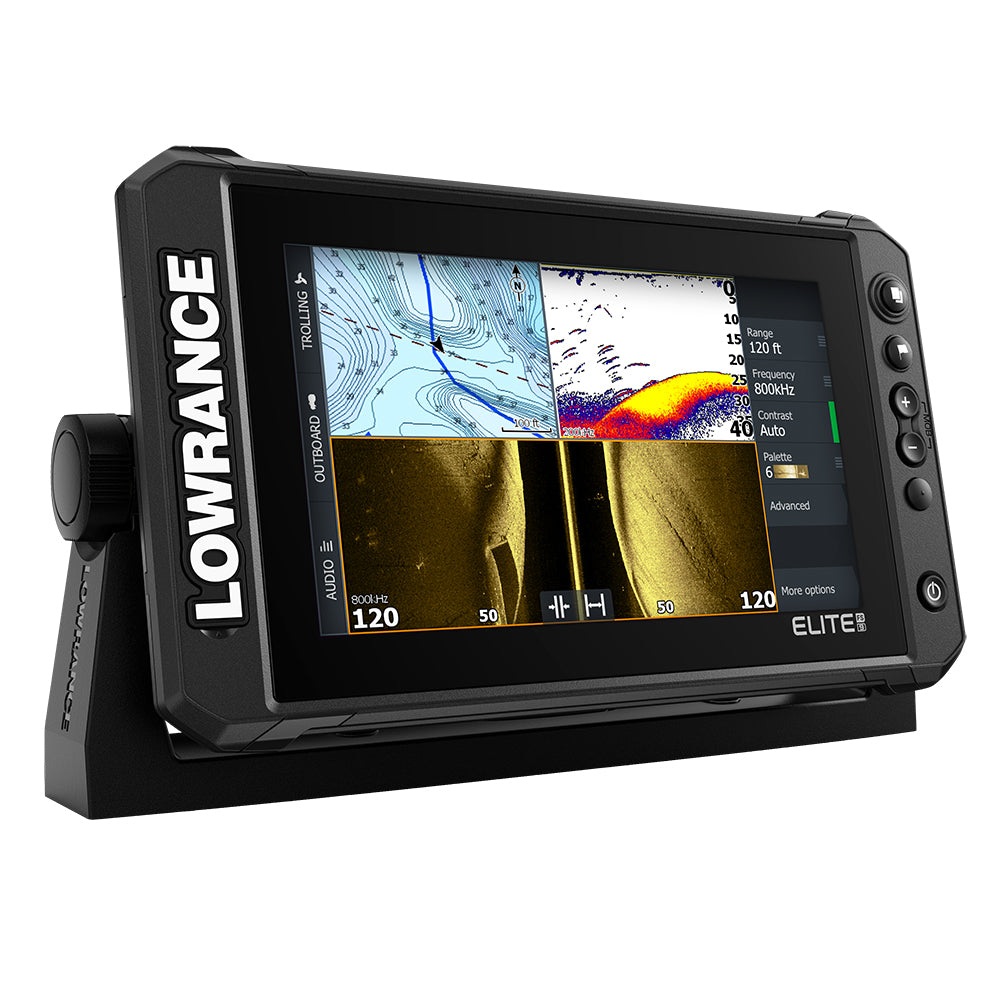

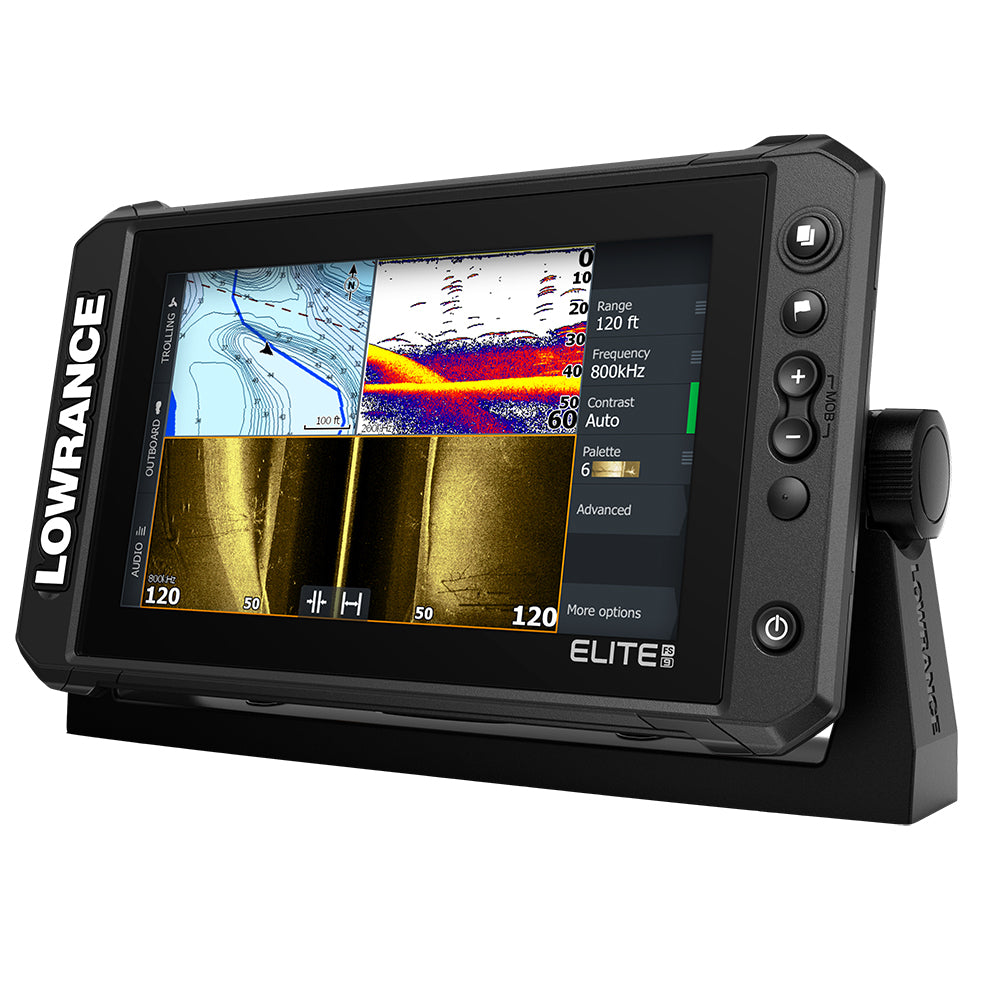

ELITE FS FISHFINDER/CHARTPLOTTER (LOWRANCE)

The Lowrance Elite FS 9 with Active Imaging 3 in 1 and C-Map Contour+ is a highly advanced fishfinder/chartplotter designed for professional anglers. It offers a range of cutting-edge features and technologies to enhance your fishing experience.

Product Features:

• ActiveTarget Live sonar and Active Imaging compatible: Supports sonar accessories such as ActiveTarget and Active Imaging 3-in-1 Sonar for detailed underwater scanning and target identification.
• Full networking capability: Multiple Displays: Share sonar, charting, waypoints, and other user data between displays for seamless collaboration.
• High Resolution Multi-touch screen: The touchscreen display offers crisp and clear visuals, allowing for easy and intuitive operation.
• Preloaded with C-MAP Contour+ charts: Comes with preloaded C-MAP Contour+ charts for enhanced navigation and fishing experience.
• NMEA 2000 support: Allows for easy integration and control of NMEA 2000 devices.
• Halo Radar: Drive Lowrance radar domes directly for improved situational awareness.
• Total Control: Full touchscreen control of Power Pole anchors and Ghost Trolling Motor for convenient operation.

Specifications:

• Environmental: Operating temperature range: -15&degC to +55&degC (5&degF to 131&degF). Storage temperature: -20&degC to +60&degC (4&degF to 140&degF). Waterproof rating: IPX6 and IPX7.
• Electrical: Supply voltage: 12V DC (10 - 17V DC min - max). Recommended fuse rating: 3A. Power consumption (maximum): 28W (2A at 13.8V DC).
• Display: Resolution: 800 x 480 pixels. Viewing angles in degrees: 50&deg top, 60&deg bottom, 70&deg left and right. Brightness: > 1200 nits. Touch screen: Multitouch.
• Physical: Weight (display only): 1.2 kg (2.7 lbs.). Compass Safe Distance: 0.5 m (1.6 ft.).
• Interface/Connectivity: NMEA 2000: 1 port (Micro-C connector). MicroSD/SDXC slot: 1x slot. Ethernet: 1 port (5-pin Ethernet connector, 100Base-T). Sonar: 1 port (9-pin connector). WiFi: Internal 802.11b/g/n. Bluetooth: 4.0 with support for Bluetooth Classic. GPS: 10Hz high speed update WAAS, MSAS, EGNOS, GLONASS.

What's in the Box:

• Elite FS 9 Display
• Sun cover
• Mounting bracket and knobs
• Power cable
• Fuse and fuse holder
• Active Imaging 3-IN-1 Transducer

Learn More:

• Fishfinder on Wikipedia
• Chartplotter on Wikipedia
• C-MAP on Wikipedia

Product: Lowrance 000-15707-001 Elite FS 9 Chartplotter/Fishfinder - No Transducer

Brand: LOWRANCE

Model: 000-15707-001

Shipping Weight: 7.55 lb

Shipping Height: 6.00 in

Shipping Width: 14.00 in

Shipping Length: 16.00 in
