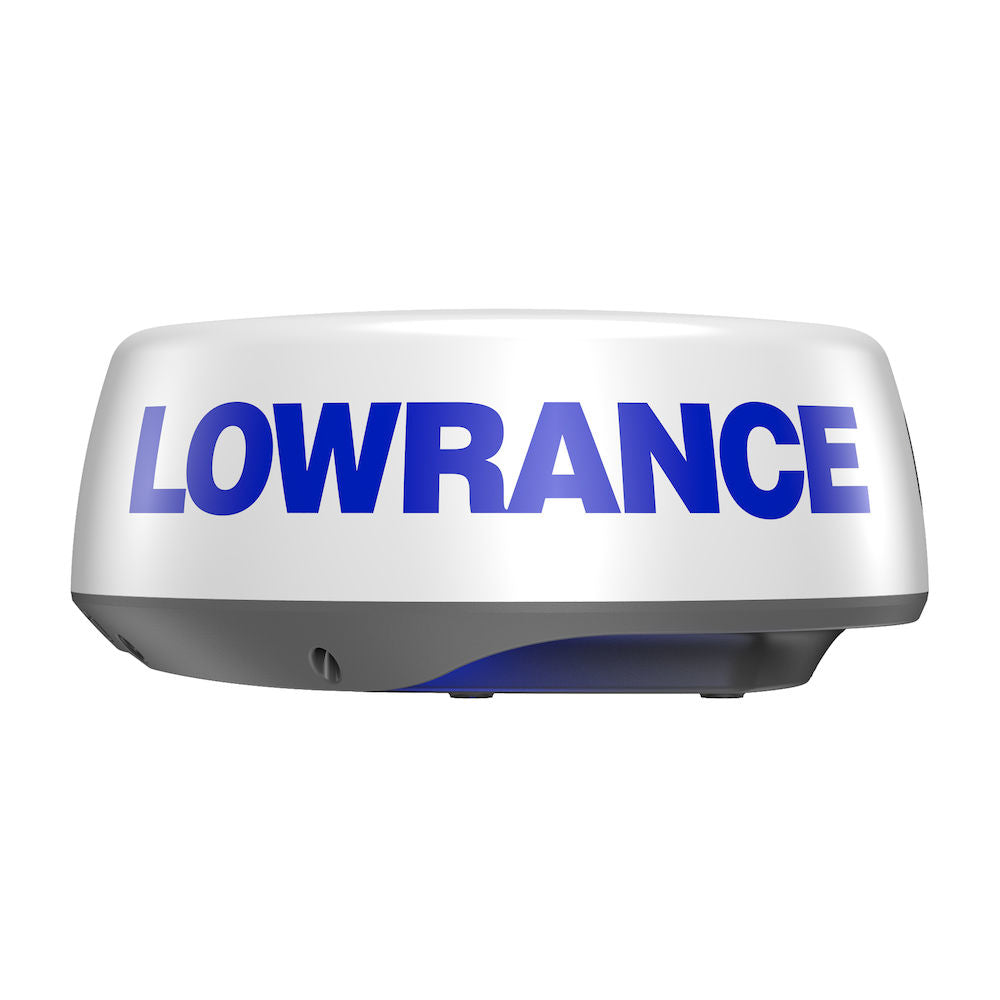

Lowrance 000-14542-001 Radar Halo20+ 20" Dome 36Nm Doppler

The Lowrance Halo 20+ Radar, model 000-14542-001, is a high-quality radar system designed for a wide range of coastal bay boats. With its compact 20-inch dome antenna, it offers short, mid, and long-range detection capabilities. This radar utilizes advanced pulse compression technology with beam sharpening, ensuring accurate detection at all selected ranges.

The Halo 20+ Radar features simultaneous Dual Range operation, allowing you to monitor both near and far distances simultaneously. This enables you to keep an eye on far away weather cells while also watching for collision hazards up close. With its ultra-fast 60 RPM rotation at ranges of up to 1.5 nautical miles, this radar provides a full 360-degree sweep every second, giving you an almost real-time view at close range.

The VelocityTrack™ Doppler technology of the Halo 20+ Radar provides instant visual feedback on whether targets are approaching or moving away from you. This feature uses color coding to highlight potential hazards, enhancing your situational awareness and reducing the risk of collision. The radar also offers MARPA target tracking, allowing you to track up to 10 targets (20 in dual range) simultaneously.

Operating the Halo 20+ Radar is easy, thanks to its various modes such as harbour, offshore, weather, and bird modes. These modes optimize the radar's advanced signal processing to ensure clear and vivid target visibility even in challenging environmental conditions.

Specifications:

• Approvals:
  • ComplianceFCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety
• Electrical:
  • Power Consumption, max: 29W
  • Power Consumption, typical: 20W
  • Recommended Fuse Rating: 5A
  • Supply Voltage: 10.5 - 31.2 VDC (12/24V systems)
  • Humidity: 95% RH at 35&degC (95&degF)
• Environment:
  • Operating Temperature Range: -25&degC to +55&degC (-13&degF to +130&degF)
  • Waterproof Rating: IPX6
• MFD:
  • Dimensions (Diameter x H): 510mm (20")
• Physical:
  • Dimensions (W x H x D): 510mm dia x 223mm H. (20" dia x 8.8" H)
  • Weight: 5.9 kg (13 lbs) without cable
• Radar:
  • Beam Width: 4.9&deg H nominal (-3dB) 2.5&deg with target separation on high x 25&deg V
  • Max Range, scale: 36 NM
  • Max Operating Wind Speed: 100 knots (51 m/s)
  • Min Range:

Learn More:

• Radar on Wikipedia
• Doppler Effect on Wikipedia
• Moving Target Indication on Wikipedia

Product: Lowrance 000-14542-001 Radar Halo20+ 20" Dome 36Nm Doppler

Brand: LOWRANCE

Model: 000-14542-001

Shipping Weight: 23.00 lb

Shipping Height: 11.00 in

Shipping Width: 23.00 in

Shipping Length: 26.00 in
