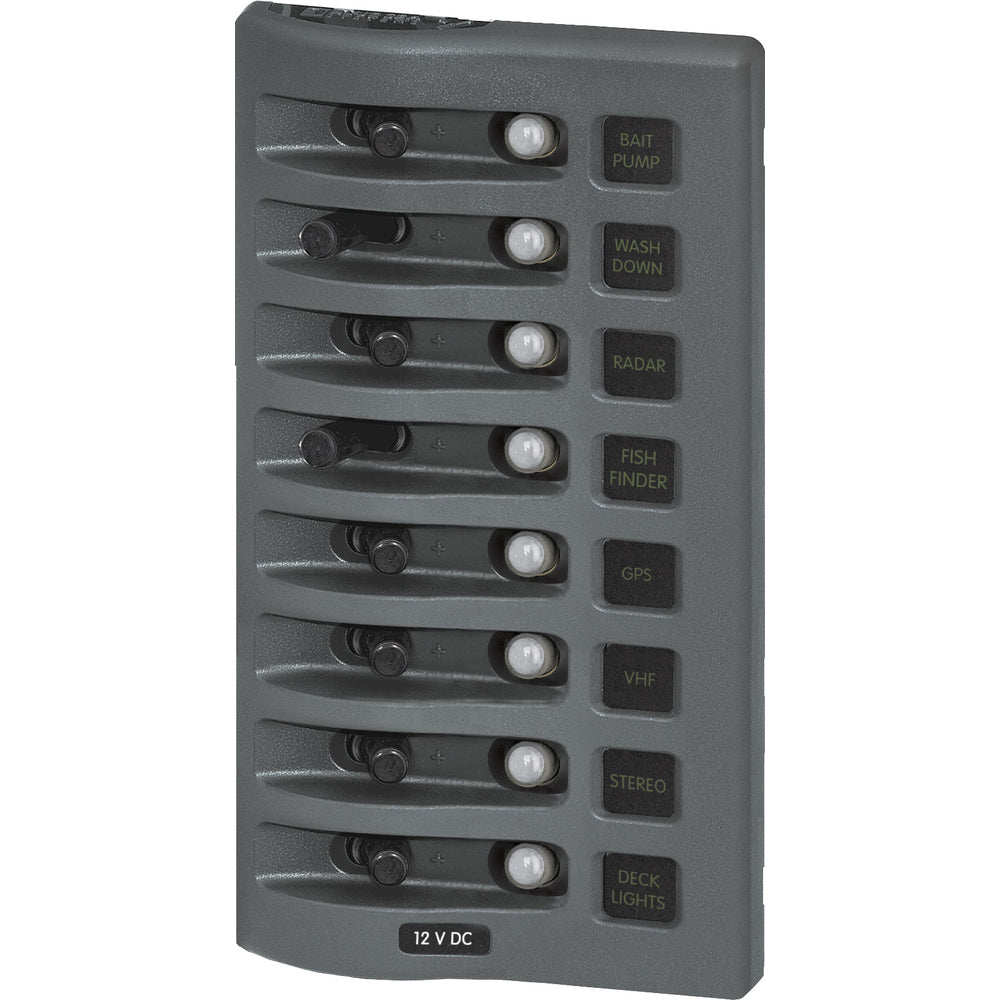

WEATHERDECK™ WATER RESISTANT BREAKER PANEL (BLUE SEA SYSTEMS)

The WEATHERDECK™ Water Resistant Breaker Panel by Blue Sea Systems is an essential component for your flybridge and open cockpit applications. This circuit breaker panel is designed to withstand temporary immersion for 30 minutes, making it ideal for marine environments. With its waterproof and weatherproof construction, it ensures reliable performance even in challenging conditions.

Features:

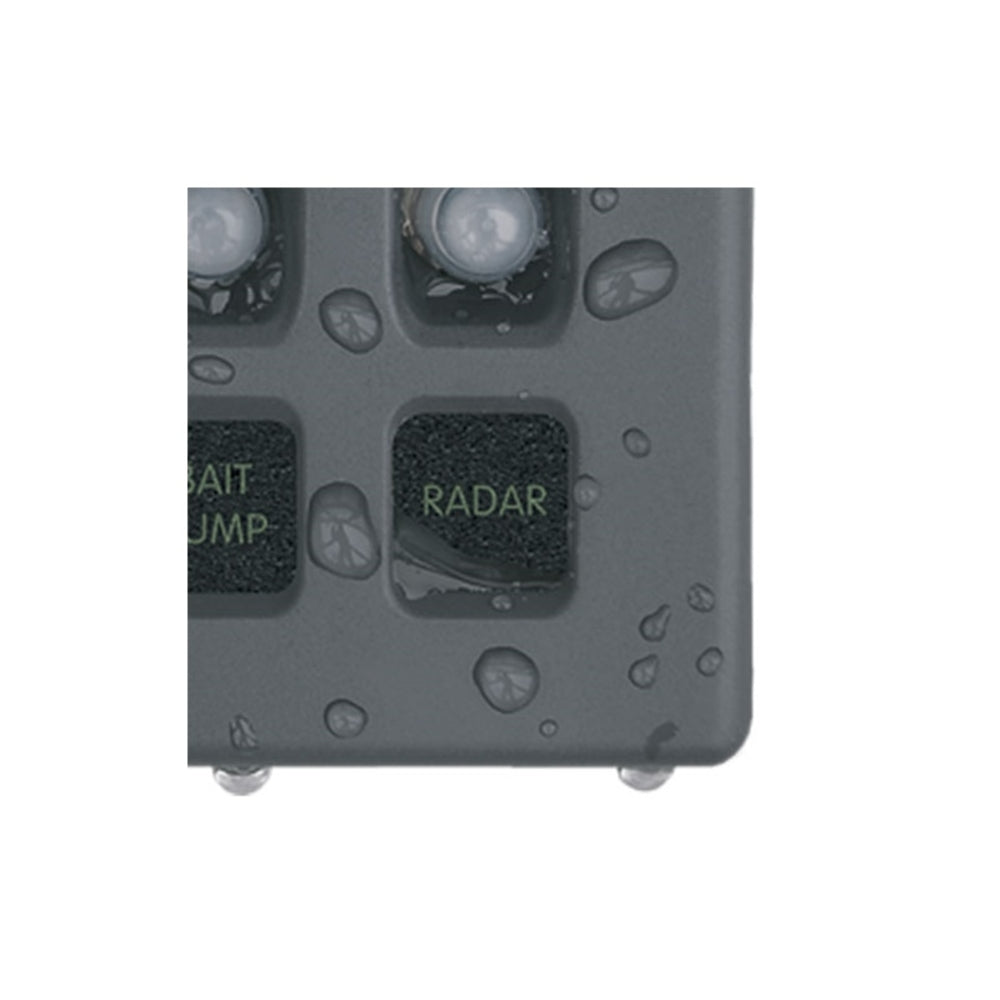

• Rated IP67-temporary immersion for 30 minutes

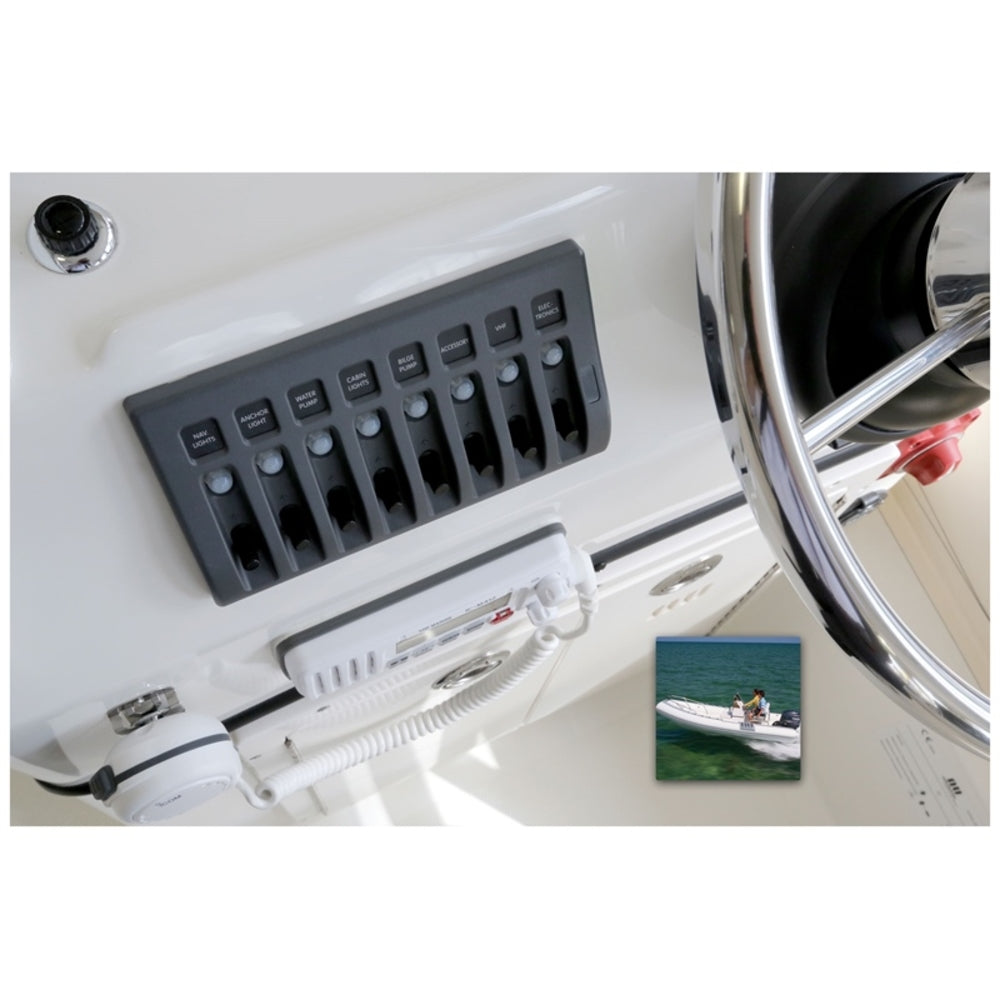

• Designed for flybridge and open cockpit applications
• Independent label backlighting allows switching and dimming
• Compatible with all Blue Sea Systems Digital Dimmers
• Each panel can be mounted in four different orientations
• Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.

Specifications:

• Weatherproof: Waterproof
• Positions: 6
• Nominal Voltage: 12v / 24v DC
• Circuit Protection: Circuit Breaker
• Maximum Amperage: 15A at 12v DC (per circuit) / 9A at 24v DC (per circuit)
• Panel Cumulative Rating: 45A
• Backlit Label: Green LED
• Backlighting Amperage: 10mA/Illuminated Circuit
• Backlighting Voltage: 12 or 24v DC

Included:

• (6) 4135 Push Button Reset Only Circuit Breaker Boot - Clear
• (6) 4138 WeatherDeck® Toggle Switch Boot - Black
• (6) 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
• (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1

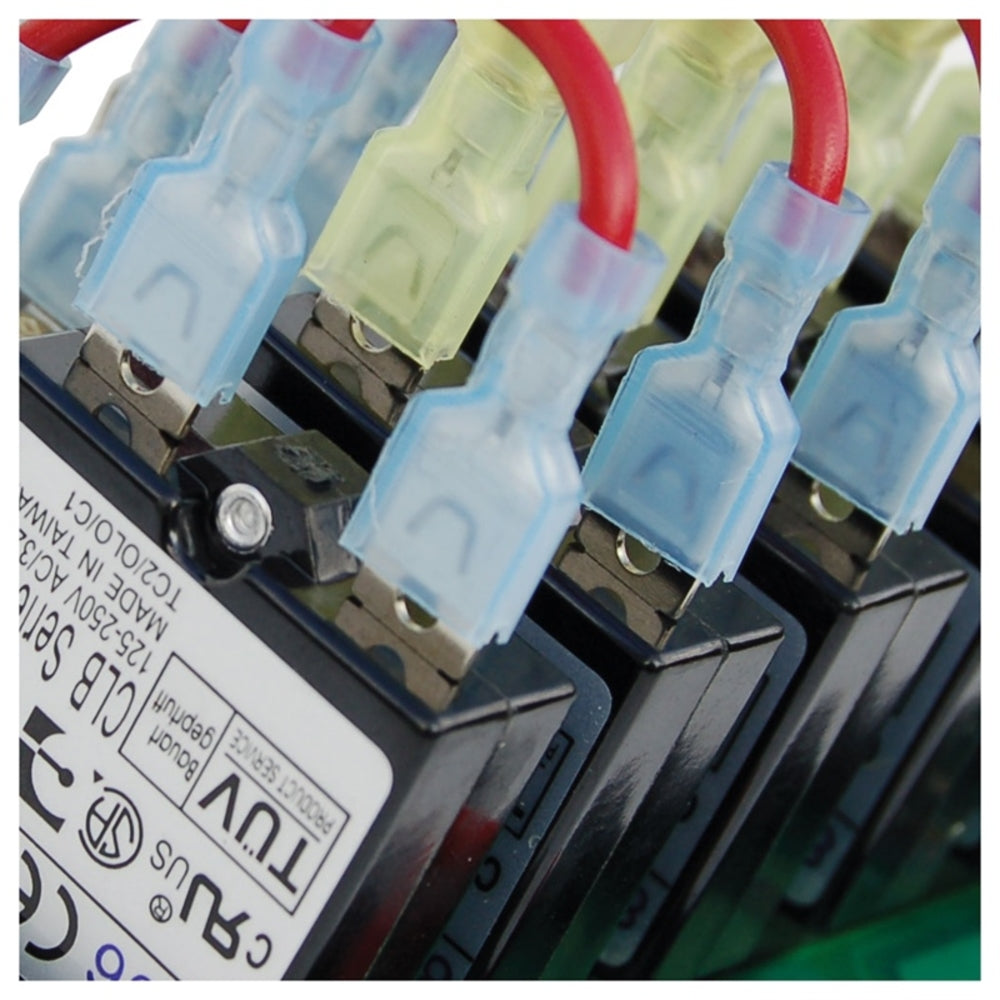

• (6) 7056 Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Learn More:

• Circuit Breaker
• Voltage
• Amperage

Product: WEATHERDECK™ WATER RESISTANT BREAKER PANEL (BLUE SEA SYSTEMS)

Brand: Blue Sea Systems

Model: 4376

Shipping Weight: 1.40 lb

Shipping Height: 4.00 in

Shipping Width: 6.00 in

Shipping Length: 9.00 in
