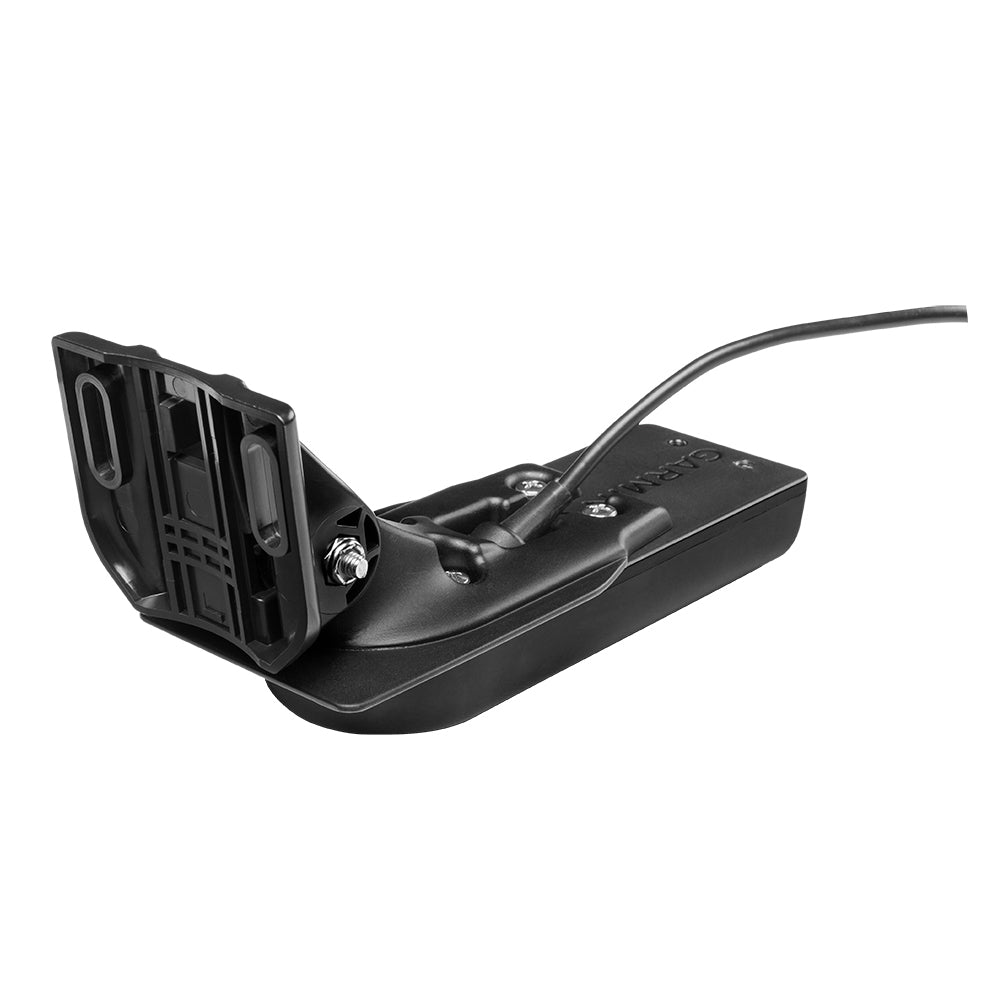

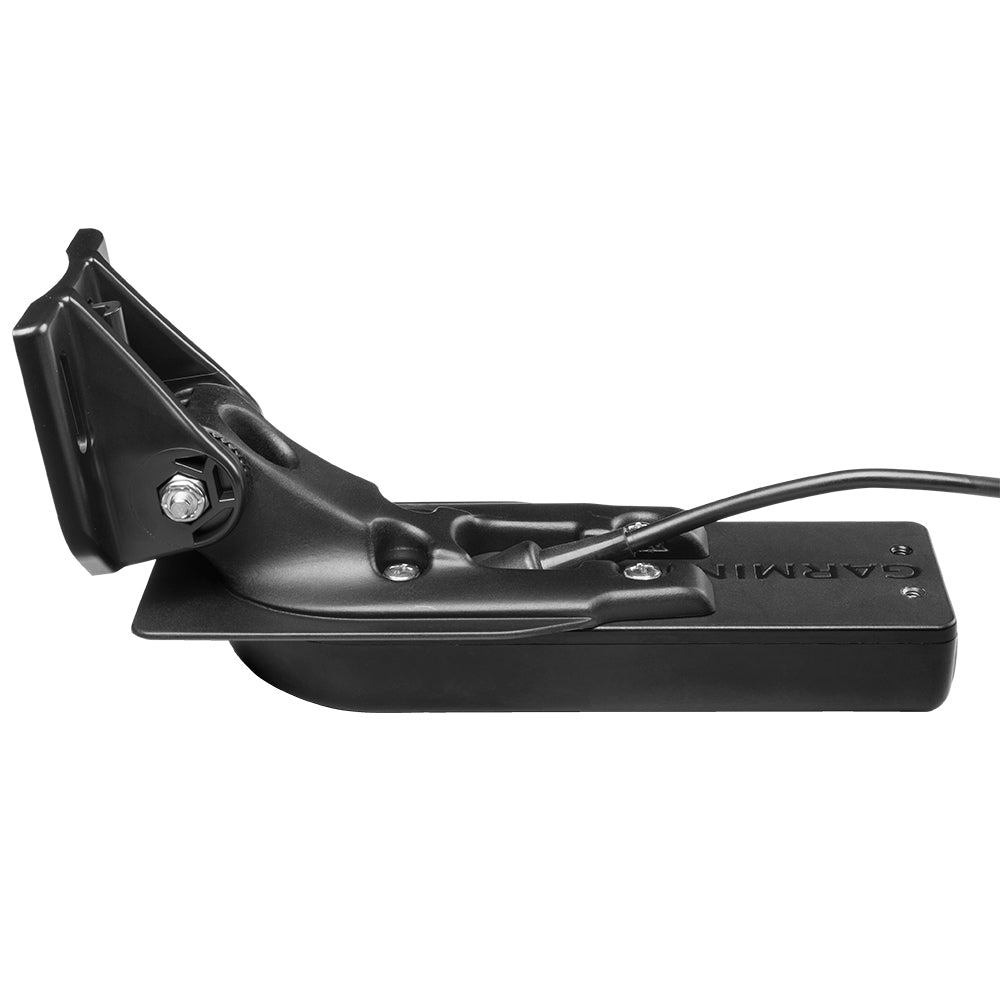

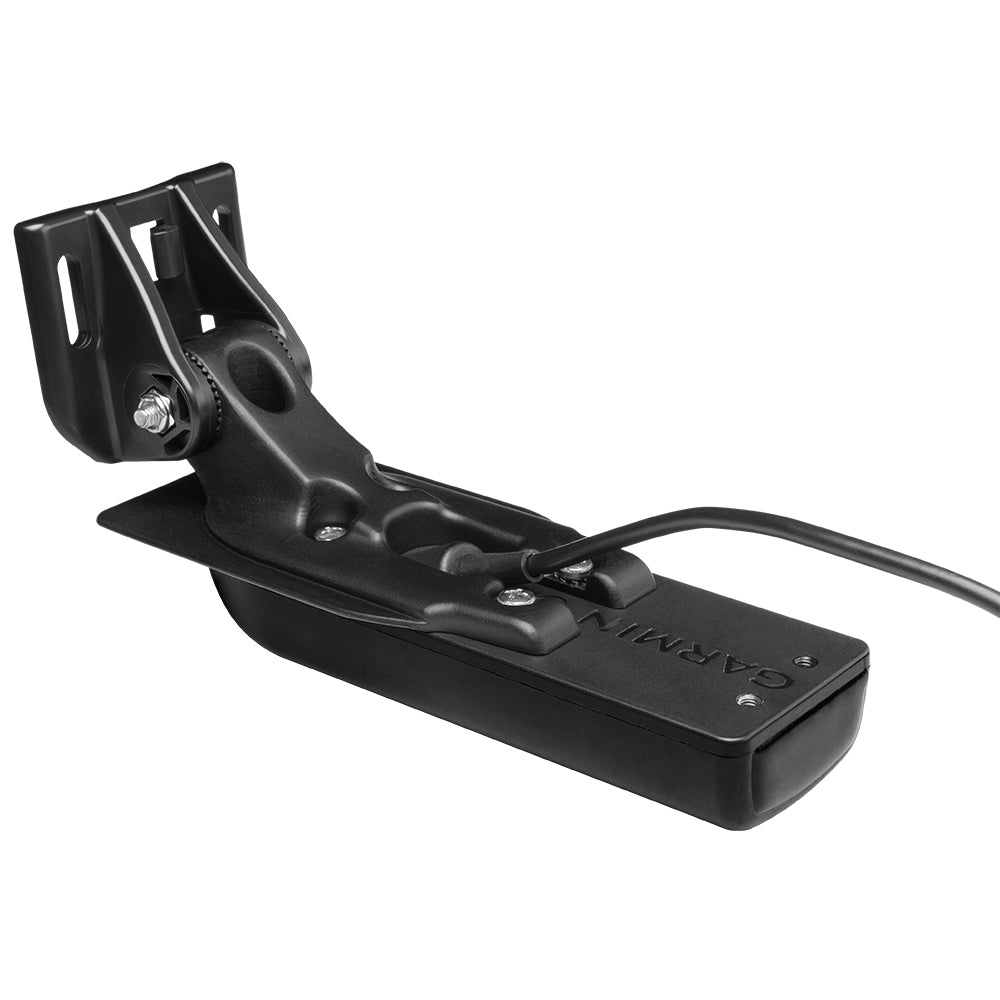

ULTRA HIGH DEFINITION ALL-IN-ONE TRANSDUCER (GARMIN)

The Garmin GT24UHD-TM Ultra High-Definition Scanning Sonar All-in-one Transducer is a versatile and advanced transducer that provides exceptional imaging capabilities. It combines high-resolution ClearVü scanning sonar with clear high wide CHIRP traditional sonar in a compact and easy-to-install design.

Product Features:

• One transducer provides the highest resolution ClearVü scanning sonar images available and amazingly clear high wide CHIRP traditional sonar
• High wide CHIRP traditional sonar provides remarkably clear target separation and definition
• See incredibly detailed images of fish and structure up to 200' below your boat with 800 kHz ClearVü sonar
• Easy-to-install, compact, all-in-one design includes transom and trolling motor mounts

The GT24 Ultra High-Definition all-in-one transducer offers unparalleled image details, allowing you to see fish and underwater structures with exceptional clarity. With this transducer, you can distinguish between different sizes of fish, spot individual fish swimming in bait balls, and even identify fish hiding near submerged trees, brush, and rocks.

The Ultra High-Definition scanning sonar provides incredibly detailed images of fish and structures up to 200' below your boat using 800 kHz ClearVü scanning sonar. The transducer comes with transom and trolling motor mounts, making installation quick and hassle-free.

Specifications:

• Frequency: Traditional CHIRP (150-240 kHz), Ultra High-Definition ClearVü (0.8 MHz, CHIRP range: 760-880 kHz), Ultra High-Definition SideVüNA
• Power: Traditional CHIRP (350 W), Ultra High-Definition ClearVü (350 W), Ultra High-Definition SideVüNA
• Beamwidth: Traditional CHIRP (Adjustable from 16&deg to 24&deg in 1&deg steps), Ultra High-Definition ClearVü (0.94&deg x 60&deg), Ultra High-Definition SideVüNA
• Maximum Depth: Traditional CHIRP (800'), Ultra High-Definition ClearVü (200'), Ultra High-Definition SideVüNA
• Other: Sensors (Depth and Temperature), Number of pins (8-pin), Cable length (20 ft.), Supported deadrise/Transom angles (0&deg-70&deg degree transom)

What's in the Box:

• GT24UHD-TM transducer
• Transom mount
• Trolling motor mount
• Mounting hardware
• Documentation

Learn More:

• Sonar on Wikipedia
• Transducer on Wikipedia

Product: ULTRA HIGH DEFINITION ALL-IN-ONE TRANSDUCER (GARMIN)

Brand: Garmin

Model: 010-12908-00

Shipping Weight: 0.40 lb

Shipping Height: 2.00 in

Shipping Width: 9.00 in

Shipping Length: 9.00 in
