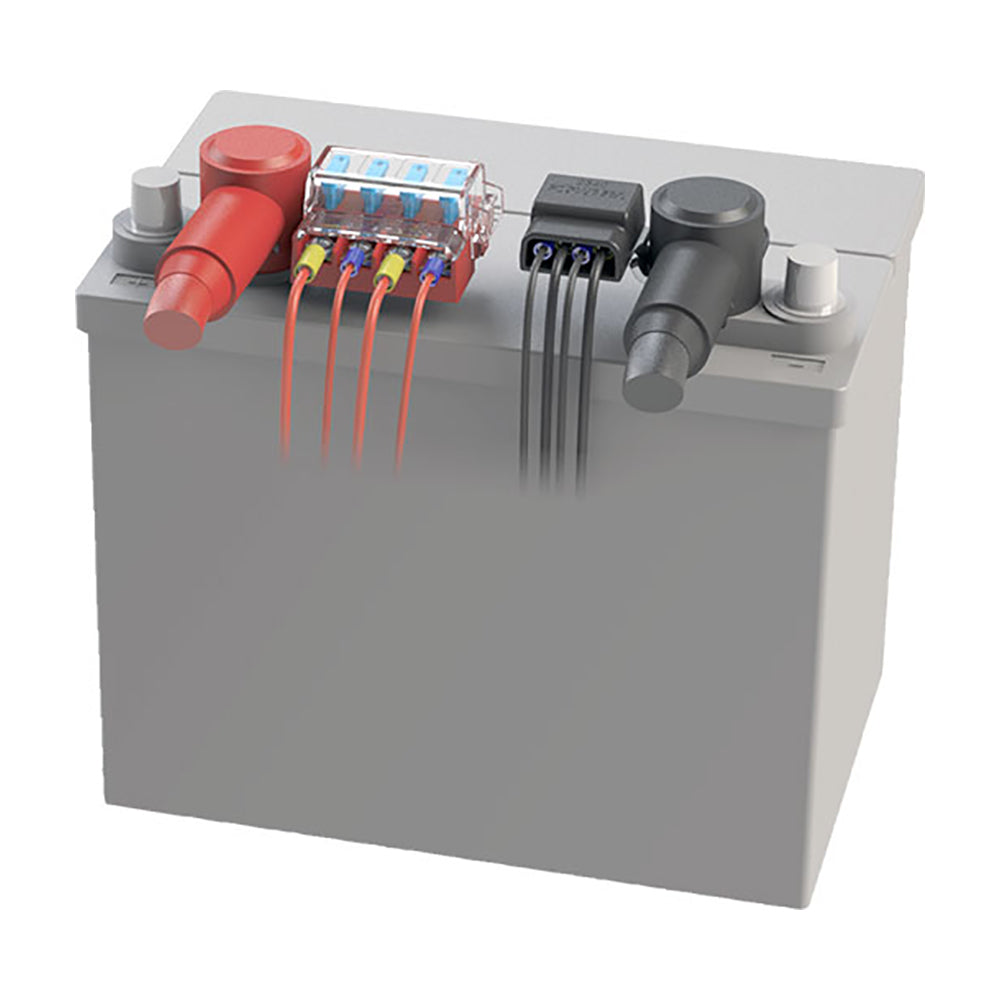

ST-BLADE BATTERY TERMINAL MOUNT FUSE BLOCK (BLUE SEA SYSTEMS)

The ST-Blade Battery Terminal Mount Fuse Block Kit by Blue Sea Systems is a reliable and efficient solution for managing your electrical wiring needs. This fuse block kit is designed to mount directly on the battery terminal stud, providing easy access and secure connections for your circuits. With its screw terminals and included nylon insulated ring terminals, it ensures a secure and reliable connection for your wires.

Featuring a 4-circuit negative busbar, this fuse block kit allows for convenient distribution of power to multiple circuits. The included write-on labels and acceptance of small format circuit labels allow for easy identification and organization of your circuits. The insulating cover of the fuse block meets ABYC/USCG insulation requirements, ensuring safety and compliance.

This fuse block kit is ignition protected, meeting ISO 8846 and SAE J1171 standards for safe use in a gasoline engine compartment. It can handle a maximum amperage of 100A per block and 30A per circuit, with a maximum voltage of 32V DC. The bus material is made of tin-plated copper C11000, providing excellent conductivity and corrosion resistance.

The ST-Blade Battery Terminal Mount Fuse Block Kit is a lightweight and compact solution, weighing only 0.50lb (0.23 kg). It features a 3/8" (M10) stud mounting hole and uses #8-32 screw terminals with a torque of 18 in-lb (2.03 Nm).

Product Features:

• Mounts on the battery terminal stud
• Screw terminals for securing wires
• Nylon insulated ring terminals included for each screw terminal
• Accepts small format circuit labels
• Insulating cover meets ABYC/USCG insulation requirements
• Ignition Protected-meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
• Includes a 4-circuit negative busbar
• Includes write on labels
• Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals

Specifications:

• Circuits: 4
• Maximum Amperage: 100A per block, 30A per circuit
• Maximum Voltage: 32V DC
• Bus Material: Tin-Plated Copper C11000
• Mounting Hole: 3/8" (M10) Stud
• Screw Terminal Torque: 18 in-lb (2.03 Nm)
• Screw Terminal Type: #8-32
• Weight: 0.50lb (0.23 kg)

Learn More

• Blue Sea Systems on Wikipedia

Product: ST-BLADE BATTERY TERMINAL MOUNT FUSE BLOCK (BLUE SEA SYSTEMS)

Brand: Blue Sea Systems

Model: 5024

Shipping Weight: 0.60 lb

Shipping Height: 2.00 in

Shipping Width: 8.00 in

Shipping Length: 8.00 in
