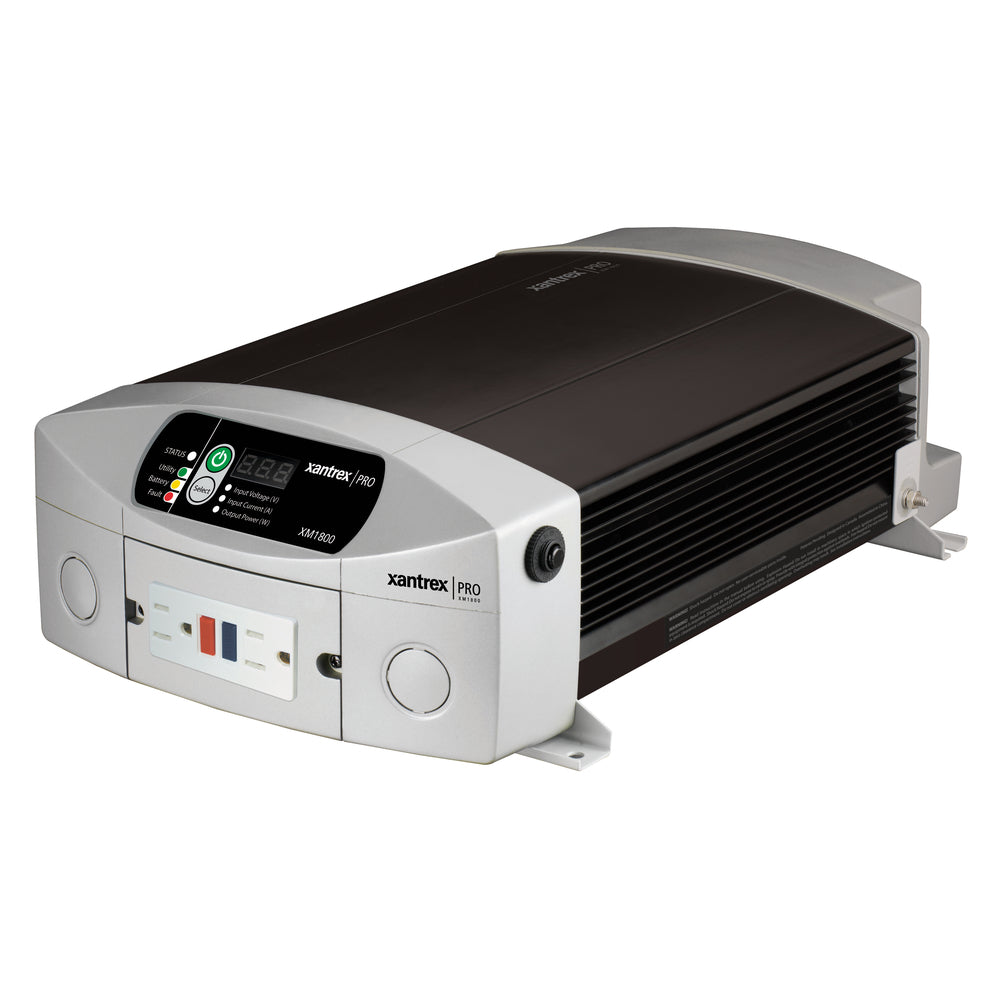

PRO SERIES INVERTER (XANTREX)

The Xantrex PRO Series Inverters are the perfect complement to generators when shore power is unavailable, to quietly and efficiently provide household power when needed. The PRO Series design is both user friendly and versatile. These inverters feature a detachable, digital remote control to display precise inverter, AC source, and battery status information from one convenient location. A built-in transfer switch automatically detects when generator or shore power status changes to ensure power is always available.

Both 1000 and 1800W models are designed for demanding RV and marine conditions. They meet FCC Class B regulations to eliminate interference potential with other electronics, while UL 458 certification means they meet strict RV and marine safety standards. Versatile enough to be mounted either horizontally or vertically, these inverters can be easily installed to fit into any compartment. Conformal coated boards also minimize the chance of problems from moist operating conditions.

Performance Features

• 1000/1800W inverter easily powers TVs, small appliances, and other electronics
• Built-in 15A circuit breaker to protect GFCI connected loads
• Up to 25A pass through for hardwired loads
• Digital remote control displays power output, AC source, and battery voltage
• Detachable remote control can be mounted wherever convenient
• Conformal coated electronics provide moisture resistance
• Designed to be hard-wired using a terminal strip or by connecting AC through a GFCI receptacle (included)

Protection Features

• Battery over-voltage and under-voltage protection
• Over temperature shutdown
• Automatic overload protection
• Short-circuit protection
• Ground fault protection

Specifications

• Electrical Specifications
• Models: XM1000, XM1800
• Maximum continuous power: 1000W, 1800W
• Surge rating: 2000W, 3600W
• Output current (continuous): 8.3A, 15A
• Output voltage (at no load): 115V +/- 10V
• Output frequency: 60Hz +/- 1Hz
• Output waveform: Modified sine wave
• Peak efficiency: 88%
• No load power draw: < 6W
• Power draw in standby mode: < 2W
• Input operating voltage: [Product Variation]

Learn More

• Power Inverter on Wikipedia

Product: PRO SERIES INVERTER (XANTREX)

Brand: Xantrex

Model: 806-1010

Shipping Weight: 10.00 lb

Shipping Height: 6.00 in

Shipping Width: 10.00 in

Shipping Length: 13.00 in
