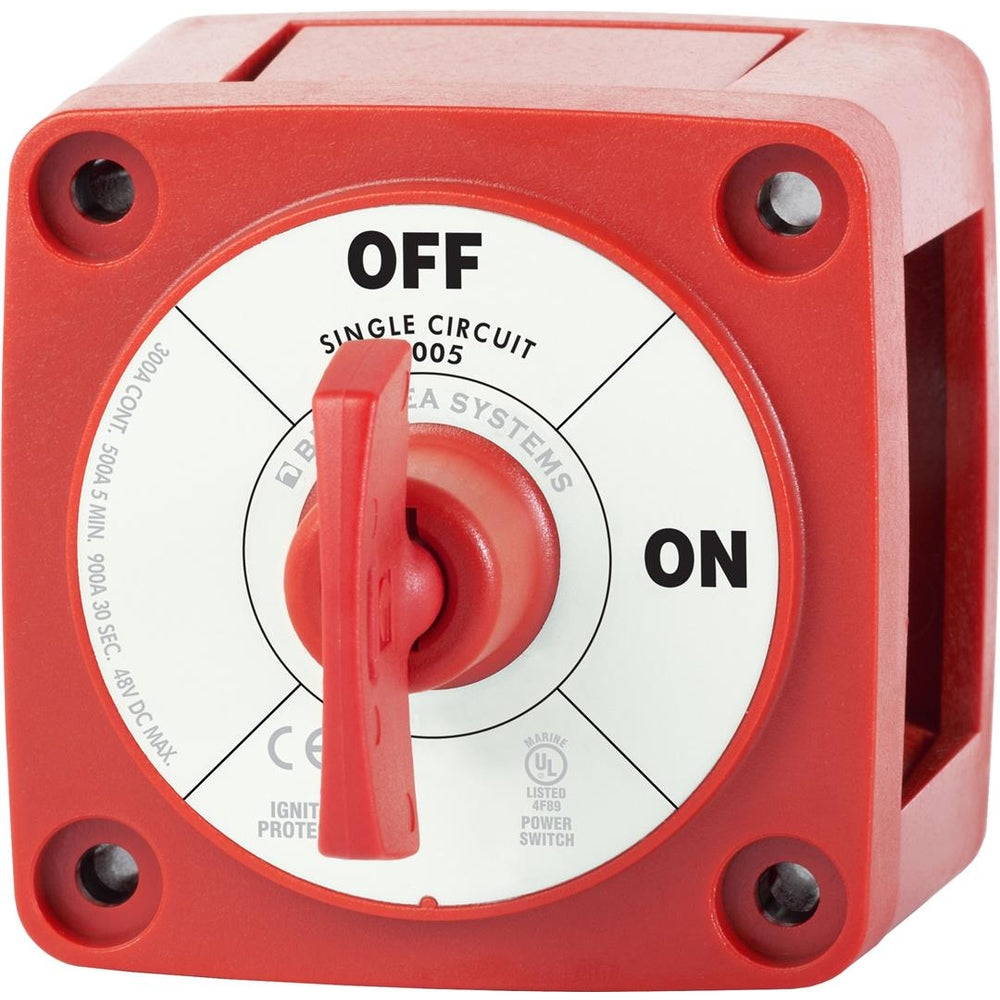

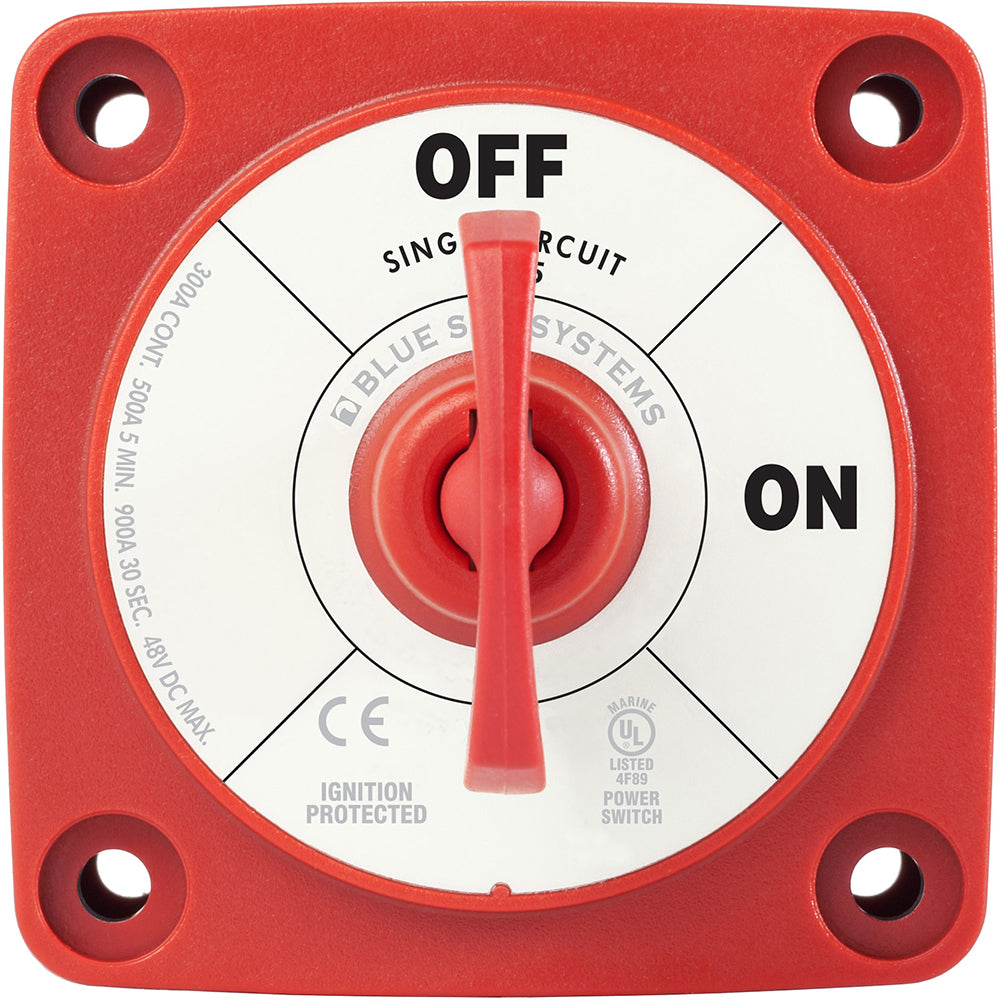

M SERIES MINI BATTERY SWITCH (BLUE SEA SYSTEMS)

The M Series Mini Battery Switch by Blue Sea Systems is a reliable and efficient solution for controlling power distribution in various applications. With its compact design and advanced features, this battery switch provides maximum conductivity and corrosion resistance, ensuring optimal performance and longevity.

Product Features:

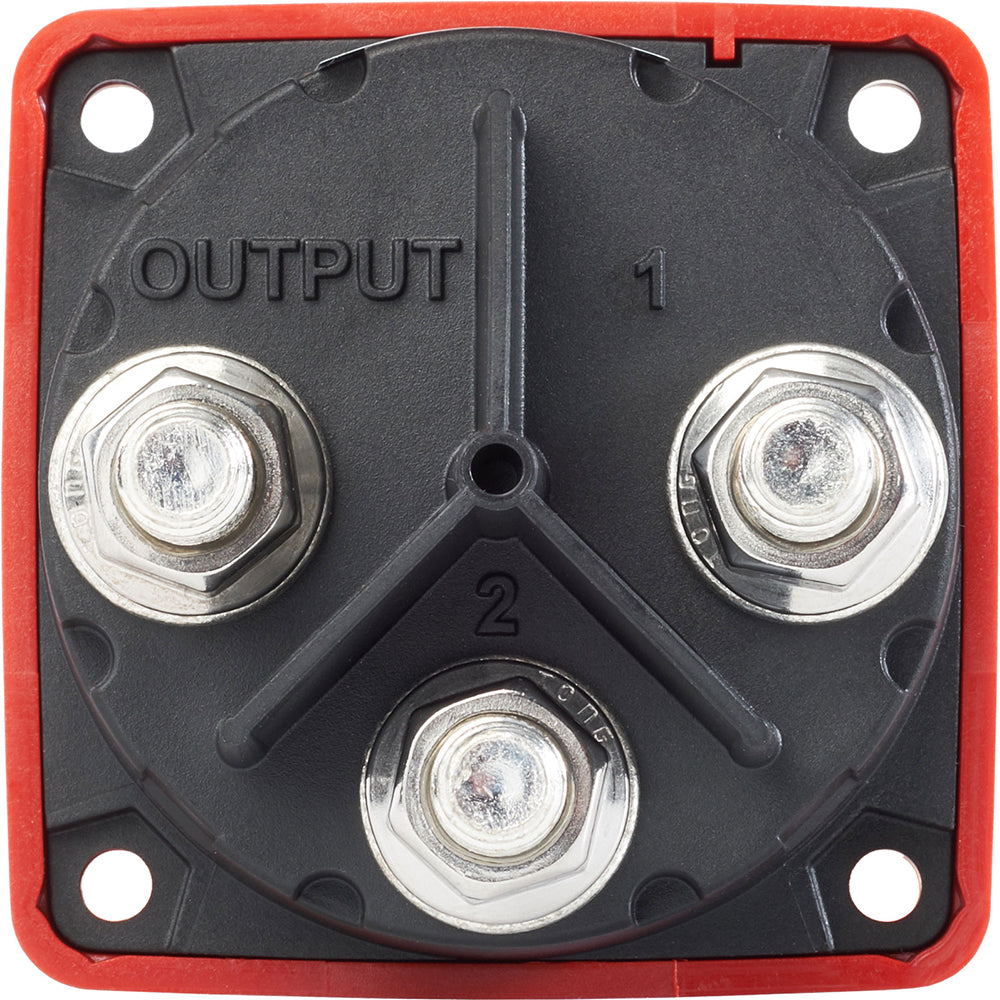

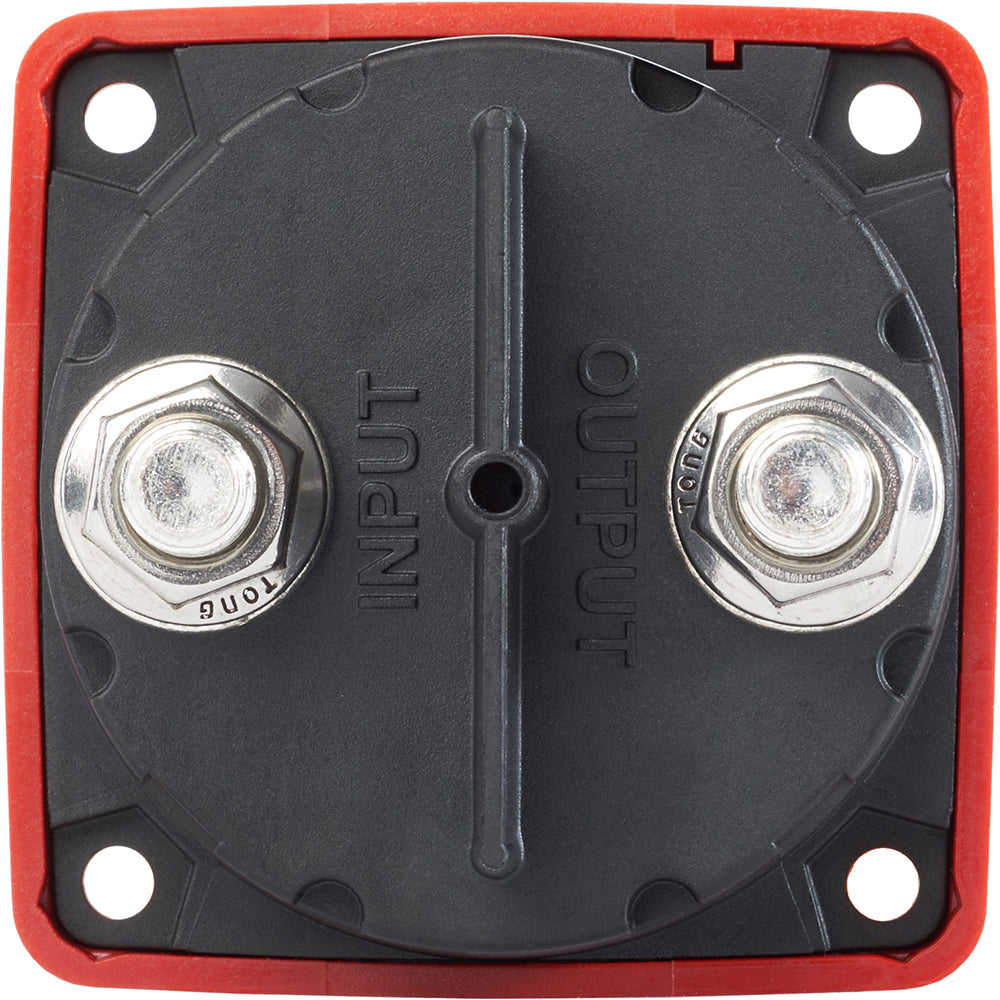

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8" (M10) ring terminals
• 7/8" (22mm) stud length accepts multiple cable terminals
• Blue Sea Systems one-piece terminal stud design never loosens over time

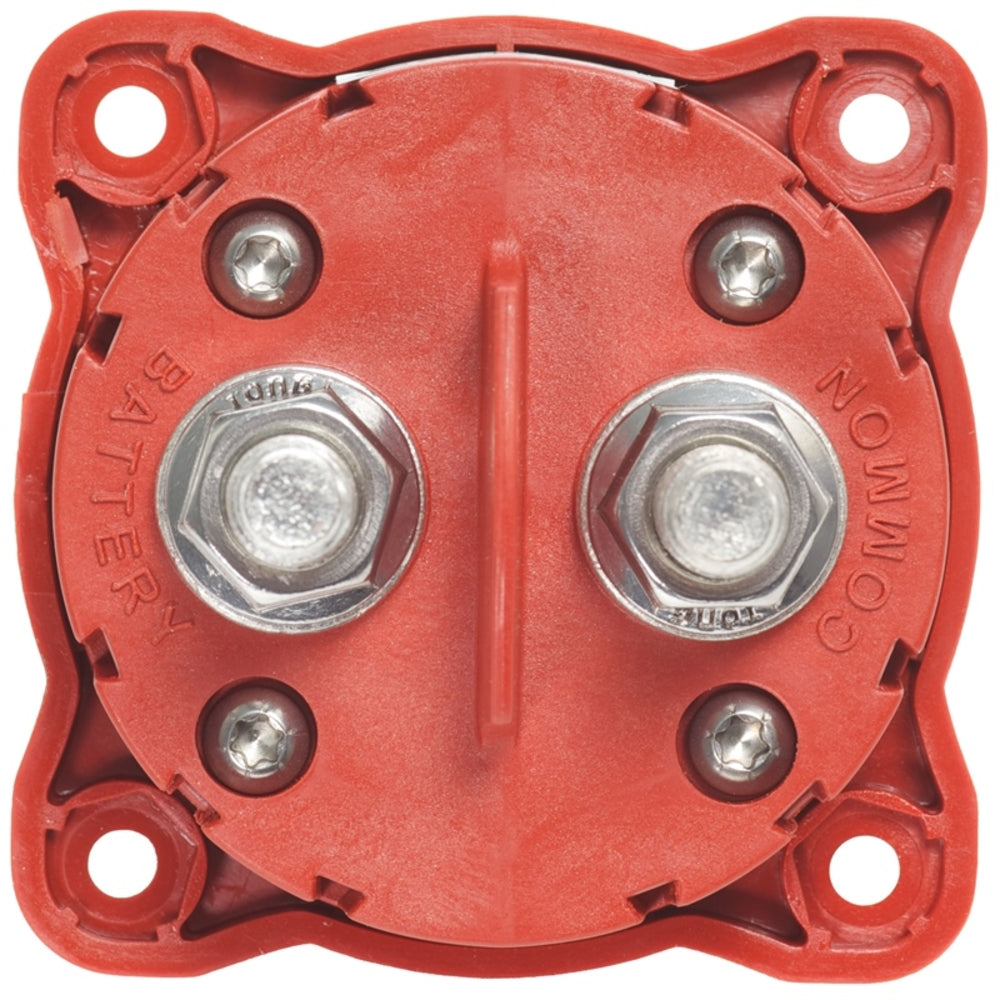

• Isolating cover with snap-on sections protects rear contacts

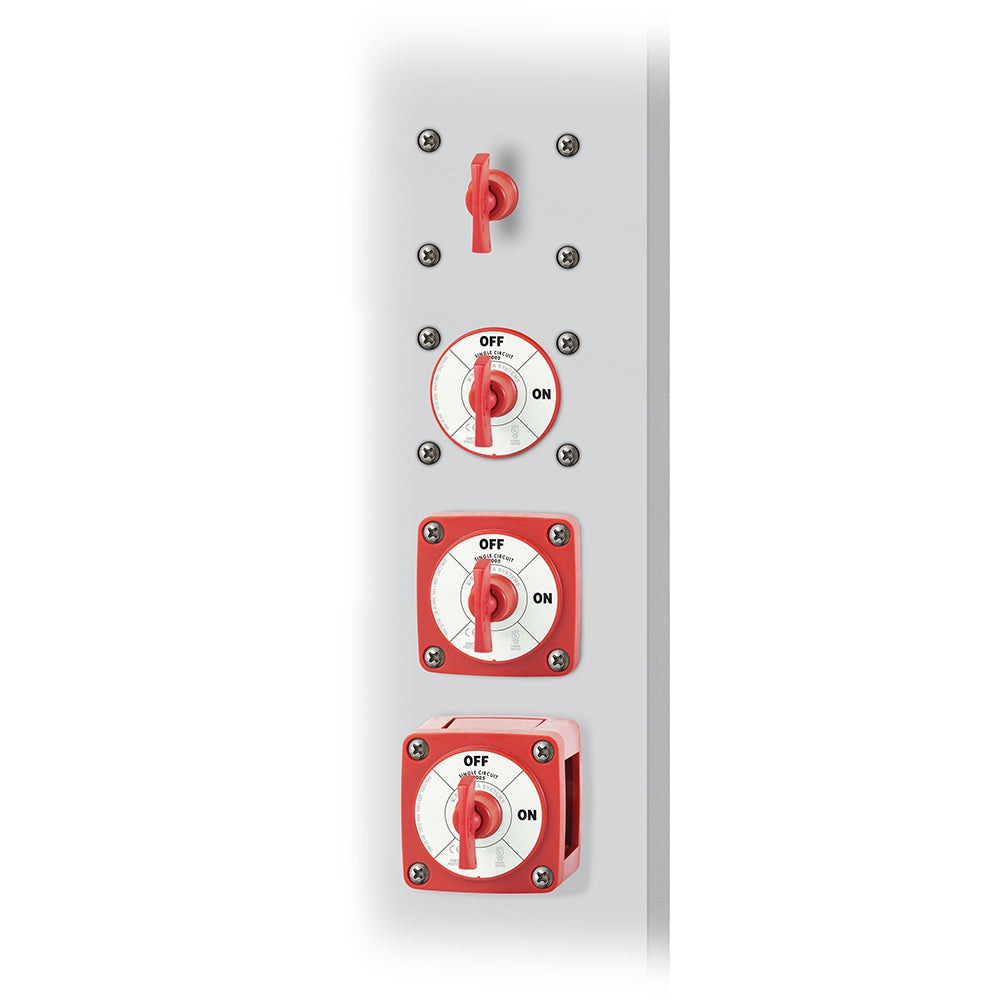

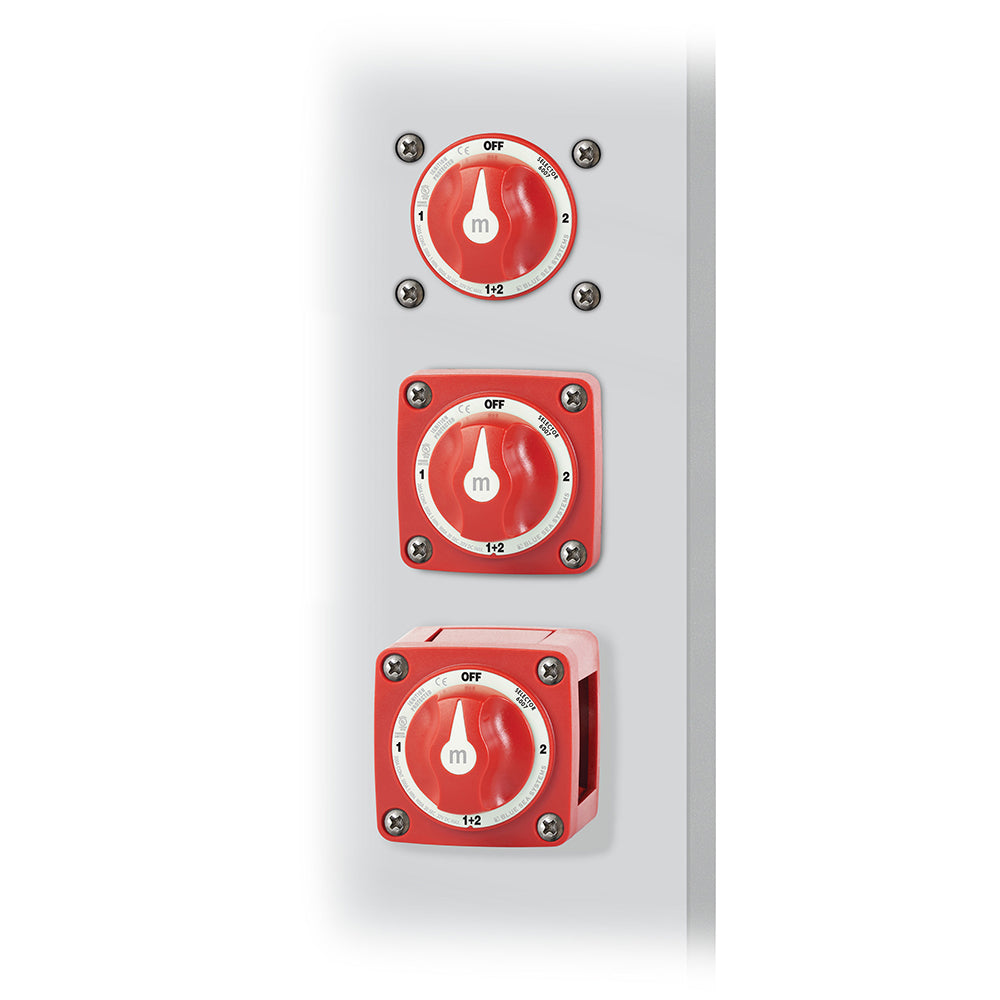

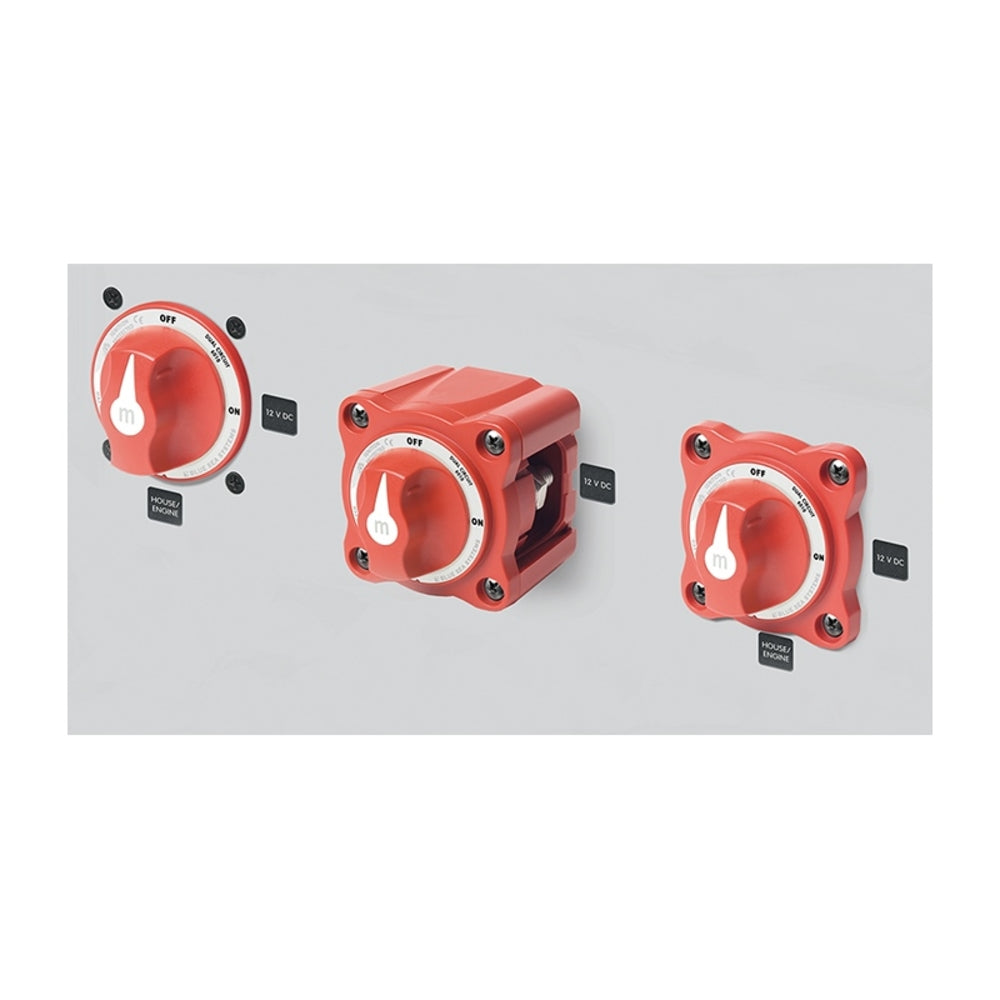

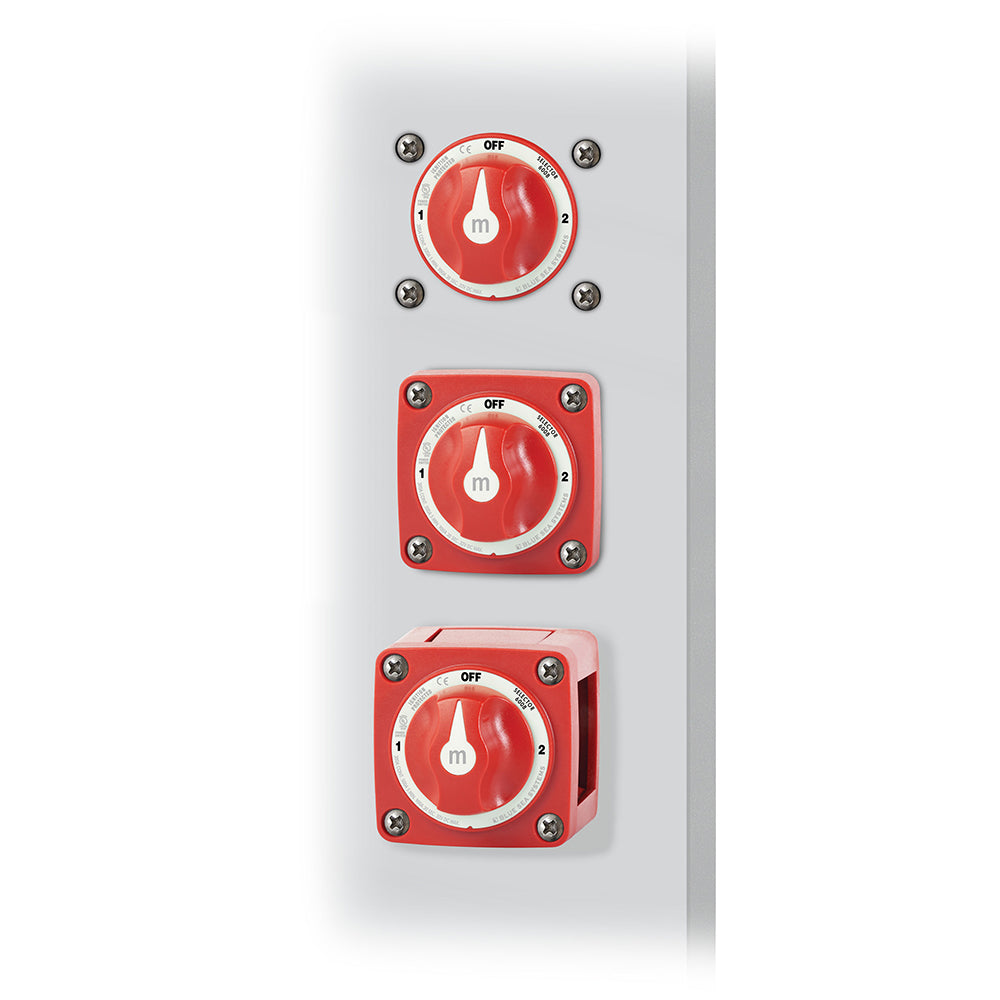

• Case design allows surface, rear, or front panel mounting options
• Waterproof — rated IP66 from water projected in powerful jets
• One-piece stainless flange nuts ensure safe and secure connections
• Breakout tabs allow wire access in any direction
• Ignition protected—safe for installation aboard gasoline powered boats

Product Specifications:

• Switch Type: Single Circuit ON-OFF
• Color: Red
• Switch Positions: 2
• Battery Combine: No
• Alternator Field Disconnect: No
• Maximum Voltage: 48vDC
• Stud Size: 3/8"
• Terminal Stud Torque: 120 in-lb (13.56 Nm)
• Continuous Rating: 300A
• Intermittent Rating: 500A (5 min)
• Cranking Rating 30 sec: 900A
• Battery Inputs: 1
• Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
• Cable Size to Meet Ratings: 4/0 AWG (120mm)
• Mounting Holes: Accept #10 Screw
• Stud Material: Tinned Copper
• Stud Torque: 120 in-lb (13.56 Nm)
• Terminal Stud Size: 3/8" - 16 (M10)

Learn More:

For more information about battery switches, you can visit the Battery Switch page on Wikipedia.

For detailed specifications and technical information about Blue Sea Systems products, you can visit the Blue Sea Systems page on Wikipedia.

Product: M SERIES MINI BATTERY SWITCH (BLUE SEA SYSTEMS)

Brand: Blue Sea Systems

Model: 6006200
