GPS 24xd POSITION RECEIVER / ANTENNA (GARMIN)

The GPS 24xd POSITION RECEIVER / ANTENNA by Garmin is a high-performance GPS sensor designed to provide precise location and heading accuracy even at slow speeds. With expanded GNSS support and a fast GPS update rate, this antenna allows you to navigate in more locations and track your position with high sensitivity.

• Navigate in more locations with expanded GNSS support.
• Get high-sensitivity tracking with fast GPS update rate.
• Accurately pinpoint your heading - regardless of speed.
• It's water-resistant (IPX7) to withstand the elements.
• Install it easily with multiple mounting options.
• The antenna is compatible with NMEA 0183 devices.

The GPS 24xd HVS position receiver and antenna is designed to deliver precise location accuracy to within 1 meter. It offers compatibility with marine multifunction displays, instrument displays, and autopilots, ensuring accurate and reliable positioning.

The magnetic heading sensor provides accuracy to within 3 degrees, allowing for stabilizing charts, radar overlay, and MARPA even at slow speeds. This feature enhances the usability and reliability of the antenna, making it a valuable tool for marine navigation.

The GPS 24xd offers access to four key global navigation satellite systems, including GPS, Galileo, GLONASS, and BeiDou. This multi-band GNSS capability enables more accurate tracking in challenging conditions compared to GPS alone.

Additionally, the antenna is equipped with Multi-SBAS compatibility, which corrects signal measurement errors and provides information about the accuracy, integrity, continuity, and availability of its signals.

Installation of the GPS 24xd is made easy with under-deck, pole, and surface-mount options, allowing for flexible placement on your vessel. Its durable and waterproof design ensures reliable performance even in harsh marine environments.

Specifications:

• Dimensions (D x H): 3 19/32" x 1 15/16" (91.6 mm x 49.5 mm)
• Weight: 7.1 oz (201 g)
• Cable length: 19 ft 8" (6 m)
• Temperature range: -22&degF to 176&degF (-30&degC to 80&degC)
• Case material: Fully gasketed, high-impact plastic alloy; waterproof to IPX7
• Compass-safe distance: 5.9" (150 mm)
• Power source input: 8-33 Vdc, unregulated
• Input current: 150 mA at 12 Vdc
• Position accuracy, typical marine use: < 50 cm, CEP 50%; < 1.0 meter, 88%

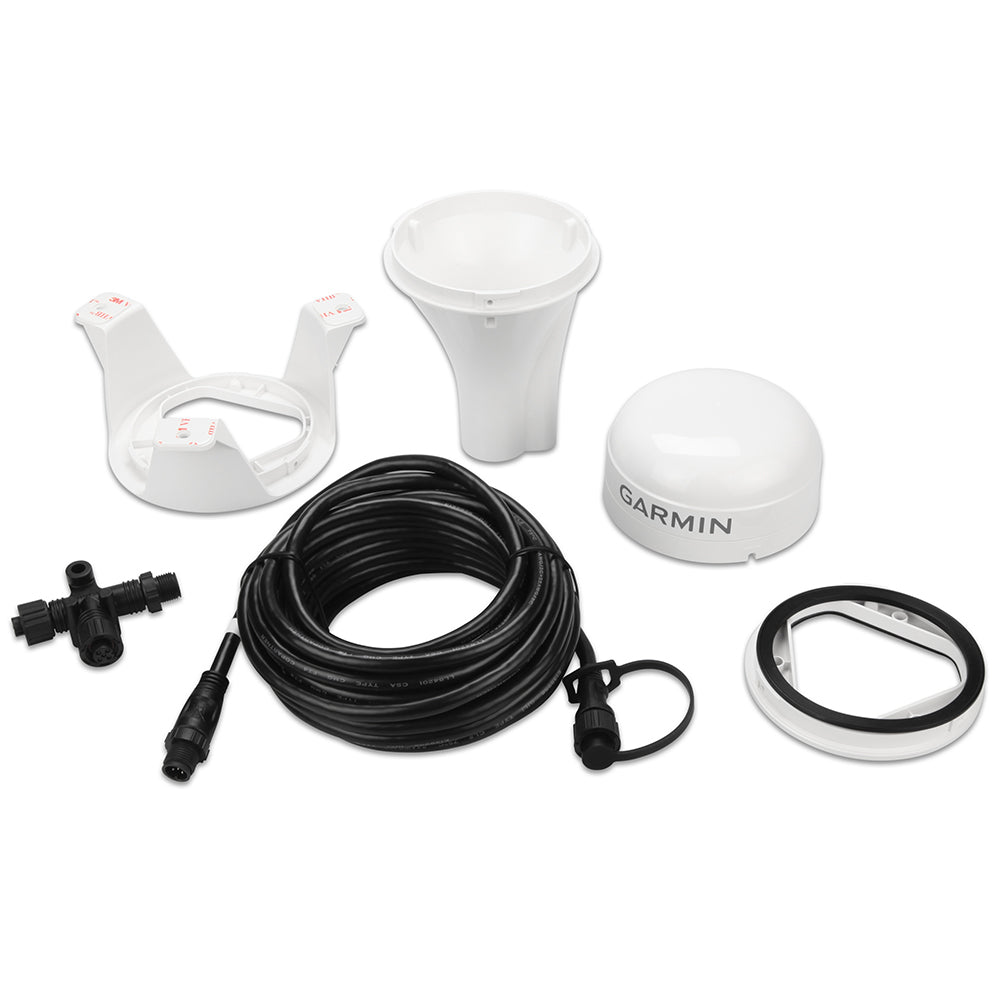

What's in the Box:

• GPS 24xd HVS
• Pole mount
• Surface mount
• Under deck mount
• Power/data cable
• Update rate select cable
• Documentation

Learn More:

• Global Positioning System on Wikipedia
• Galileo (satellite navigation) on Wikipedia
• GLONASS on Wikipedia
• BeiDou on Wikipedia

Product: GPS 24xd POSITION RECEIVER / ANTENNA (GARMIN)

Brand: Garmin

Model: 010-02316-10

Shipping Weight: 2.15 lb

Shipping Height: 7.00 in

Shipping Width: 7.00 in

Shipping Length: 7.00 in
