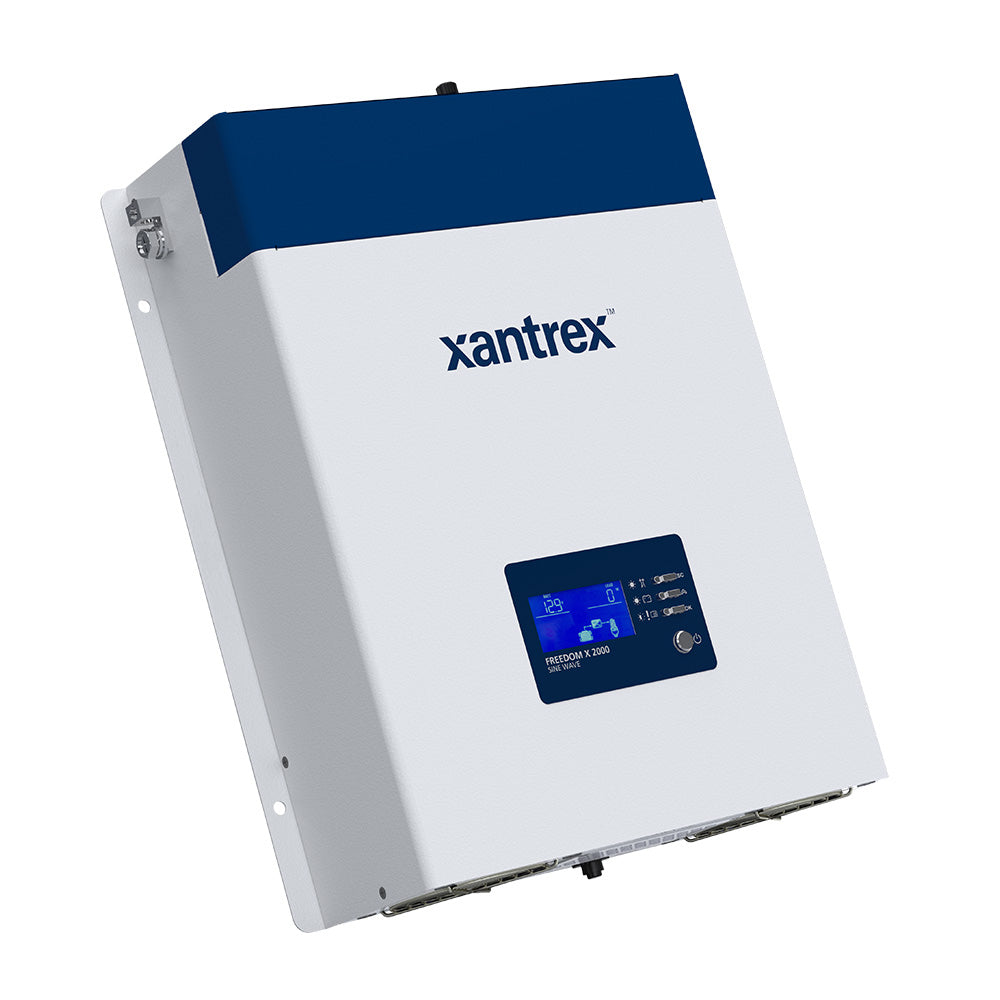

FREEDOM X POWER INVERTER (XANTREX)

The Freedom X Power Inverter by Xantrex is a high-performance and compact inverter that provides reliable power for a variety of applications. With its true sine wave AC power, it is capable of operating sensitive and motor loads without any issues. The inverter features an extended surge rating, allowing it to handle difficult loads such as fridges and microwaves with ease.

One of the standout features of the Freedom X Power Inverter is its ignition control. This feature allows the inverter to be turned on/off via a 12 VDC signal, minimizing battery drain by automatically switching off when the ignition key is turned off. The wide 10-18 VDC input range ensures compatibility with high voltage alternators found in many new vehicle chassis.

The built-in 30A AC transfer relay is another useful feature of this inverter. It senses when outside AC power is present and transfers the load from the inverter to the source of incoming power, such as shore or generator power. The unit also automatically switches from invert mode to charge mode as needed.

Installation of the Freedom X Power Inverter is quick and easy, thanks to its large wiring bay and quick connect AC in/out terminals. These features make wiring a breeze, saving you time and effort.

Product Features:

• Extended Surge Rating: Surges to 2X continuous power for 2 seconds for motor loads
• True Sine Wave AC Power: For operation of sensitive and motor loads
• Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
• Wide 10-18 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
• Built-in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power (shore or generator). The unit also automatically switches from invert mode to charge mode

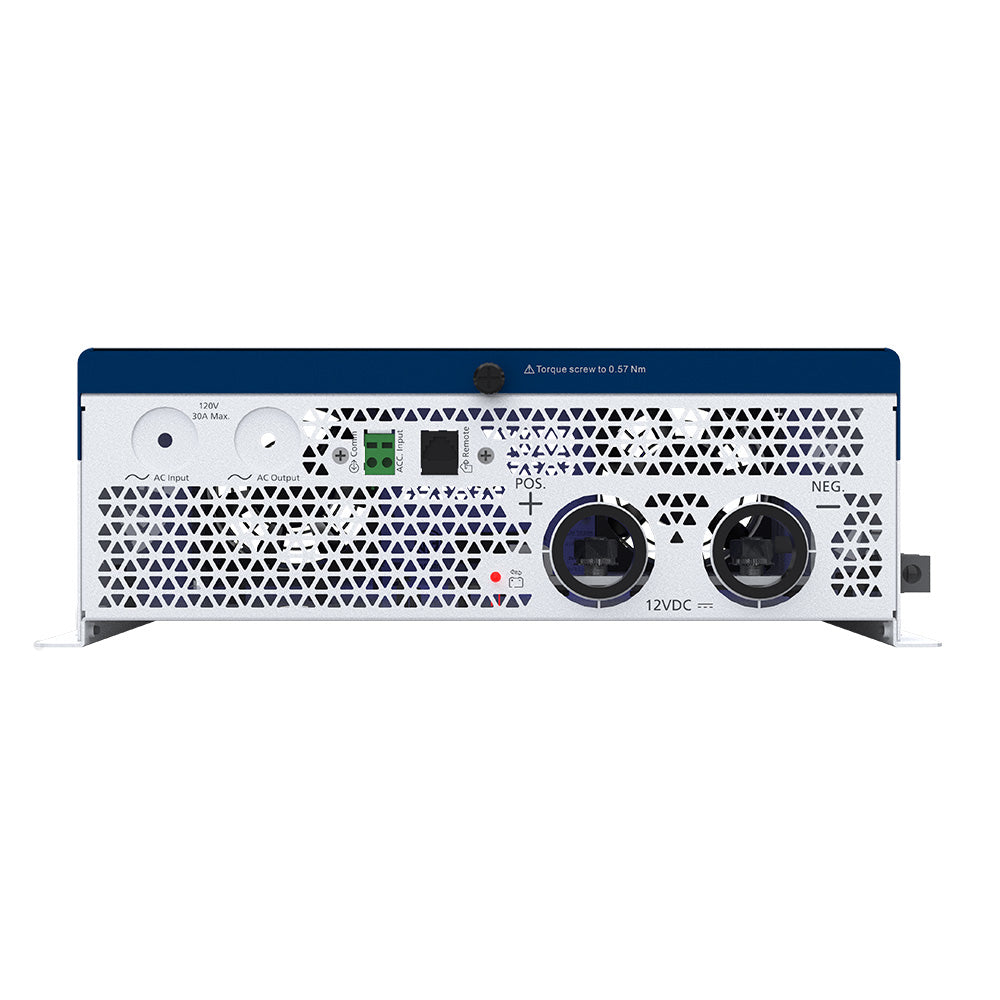

• Quick Installation: Huge wiring bay for easy access and quick connect AC in/out terminals for fast & easy wiring

Specifications:

• Operating voltage: 120, 110, 108 VAC
• Continuous power: 2000 W at 40&degC True sine wave
• Continuous current: 16.7 Amps
• Surge power: 4000 watts
• Frequency: 60 Hz
• Peak efficiency: 91%
• Full load efficiency: Greater than or equal to 87%
• Operating voltage range: 85-140 VAC
• Safe Non-Operating voltage range: Up to 240VAC
• Operating temperature range: -4 to 140&degF (-20 to 60&degC), with output derated above 104&degF (40&degC)
• Storage Temperature Range: -40 to 158&degF (-40 to 70&degC)
• Humidity: 5 to 95% RH, non-condensing
• Transfer Relay Rating: 30 Amp
• Operating voltage range: LBCO voltage - 18.0 VDC
• Maximum Non-Operating Voltage: 24.0 VDC
• Nominal Voltage (Inverting): 12 VDC
• Nominal Current at Full Load: 192ADC

What's in the Box:

• Freedom X unit
• Plastic bushings for large DC cables
• Pre-installed ground lug
• Documentation

Learn More:

• Power Inverter - Wikipedia

Product: FREEDOM X POWER INVERTER (XANTREX)

Brand: Xantrex

Model: 817-2000-21

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
