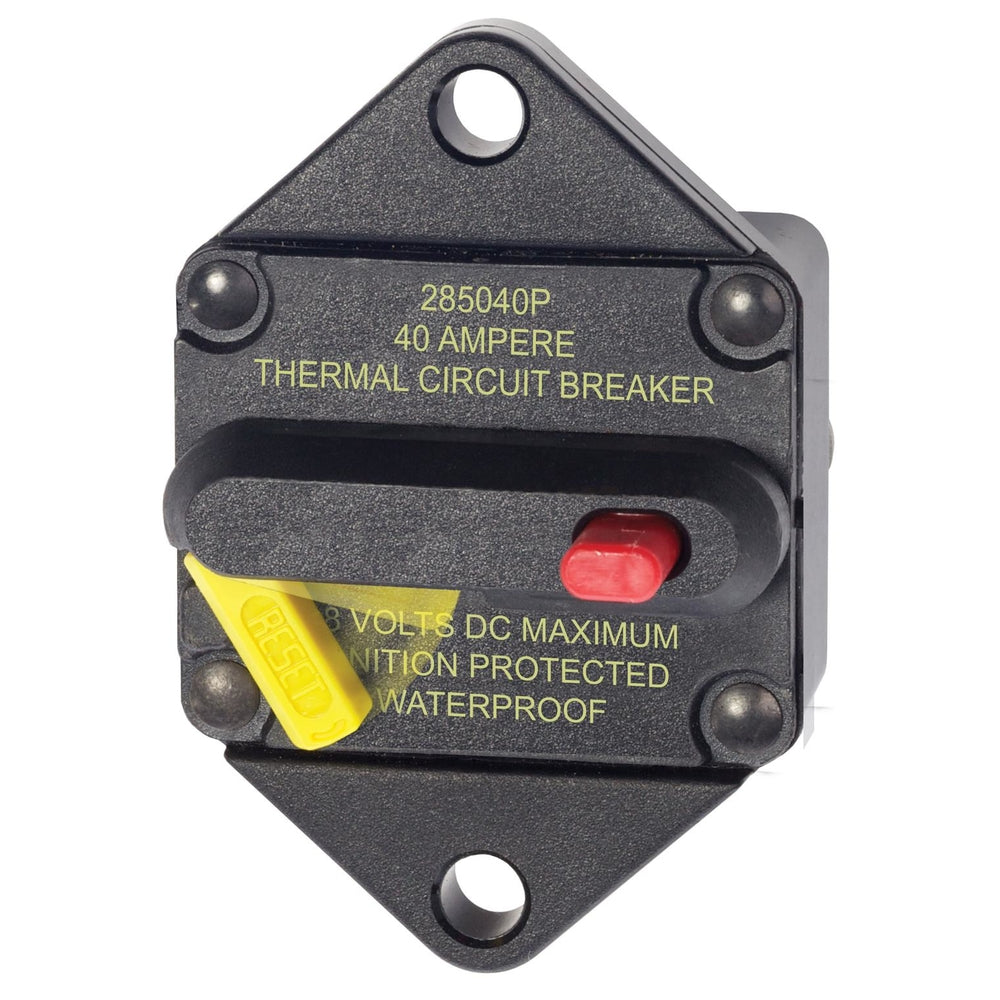

285-SERIES THERMAL CIRCUIT BREAKERS (BLUE SEA SYSTEMS)

The 285-Series Thermal Circuit Breakers from Blue Sea Systems are reliable and efficient panel mount circuit breakers. Designed as a drop-in replacement for the 185-Series Circuit Breakers, they provide enhanced features and improved performance. With a visible reset lever that shows the open condition, these circuit breakers offer convenience and ease of use.

These circuit breakers are ignition protected, making them safe for installation aboard gasoline-powered boats. They meet the SAE J1171 external ignition protection requirements, ensuring reliable operation in marine environments. The weather-resistant construction further enhances their durability and longevity.

Combining both switching and circuit breaker functions into a single unit, these circuit breakers offer a space-saving solution. The "Trip Free" feature ensures that the circuit breaker cannot be held closed after a trip, enhancing safety and preventing damage.

Specifications:

• Amperage: 100A
• Maximum Voltage: 48V DC
• Mounting: Surface Mount
• Circuit Breaker Type: Thermally responsive Bi-metal blade
• Terminal Stud Torque: 60 in-lb (6.78 Nm)
• Interrupt Capacity: 3000A at 48V
• Minimum Operating Temperature: -40&degC
• Maximum Operating Temperature: 85&degC
• Circuit Breaker Class: Type III - switchable/manual reset - trip free
• Terminal Stud: M6 (accepts 1/4" Ring Terminal)

Learn More

• Circuit Breaker
• Thermal-Magnetic Circuit Breaker

Product: 285-SERIES THERMAL CIRCUIT BREAKERS (BLUE SEA SYSTEMS)

Brand: Blue Sea Systems

Model: 7085

Shipping Weight: lb

Shipping Height: in

Shipping Width: in

Shipping Length: in
