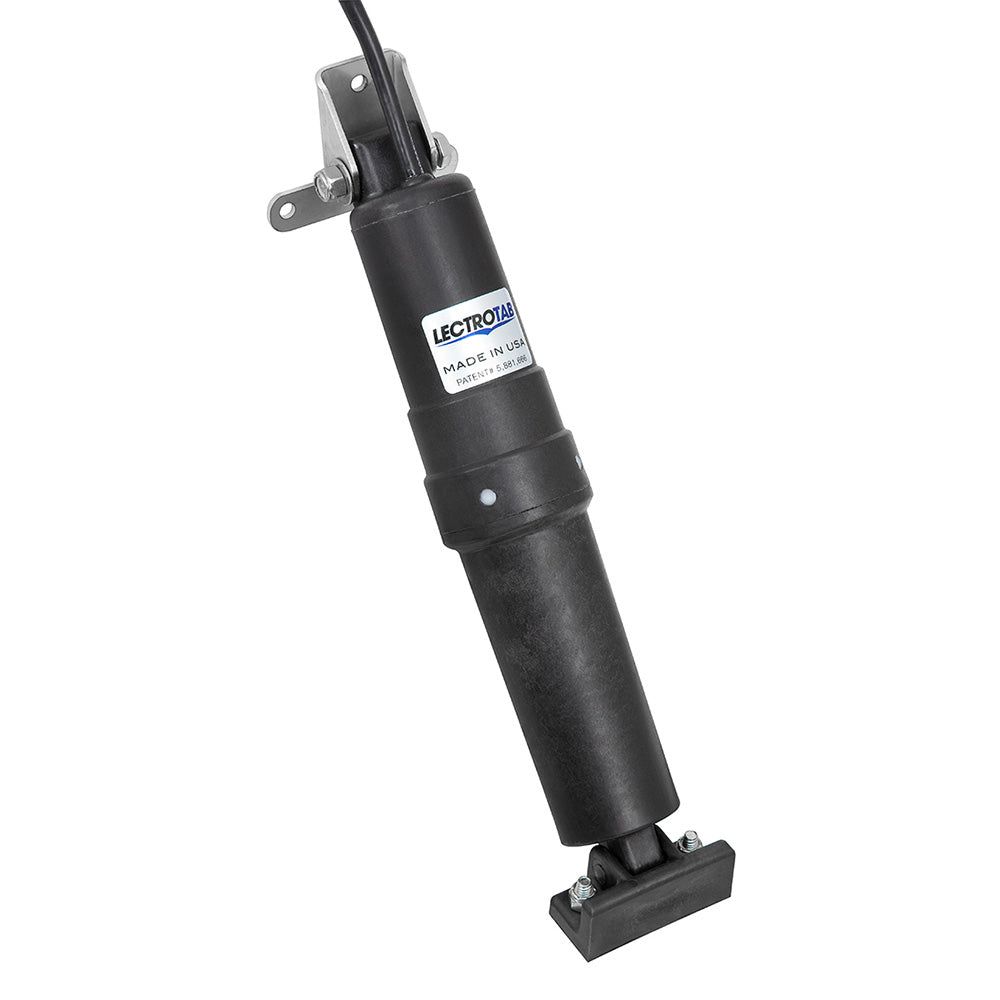

Lectrotab A-Bk-26 12V Tab Actuator 6' Cable - Heavy Duty - Everglades Boats

Lectrotab A-Bk-26 is a heavy-duty 12V tab actuator specifically designed for Everglades Boats. This trim tab actuator is built to withstand high speeds and rough conditions, making it a reliable choice for boat owners. Its heavy-duty construction features a reinforced upper mounting boss and a 12 gauge stainless steel upper bracket, ensuring durability and longevity.

With its precision-engineered design, Lectrotab A-Bk-26 offers quiet operation and a non-hydraulic, maintenance-free experience. The actuator is corrosion-free and provides very accurate tab positioning, maximizing lift force. It is also completely self-contained, allowing for easy installation without any components needing to be installed inside the boat. Additionally, the actuator assembly is packaged in a non-metallic permanently sealed housing, eliminating the risk of oil leakage commonly associated with hydraulic trim tabs.

Compatible with Everglades Boats, this Lectrotab A-Bk-26 12V Tab Actuator offers the following features:

• Stainless Steel upper mounting bracket
• Reinforced actuator upper mounting boss
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when underway or backing down
• Quiet operation
• All actuators fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or underwater

The technical specifications of the Lectrotab A-Bk-26 12V Tab Actuator are as follows:

• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 6' (1.8 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Connectors - Deutsch style

This product is sold individually.

Learn More

• Trim Tab - Wikipedia
• Boat - Wikipedia
• Everglades Boats - Wikipedia

Product: Lectrotab A-Bk-26 12 V Heavy Duty Tab Actuator 6' Cable Everglades Boats

Brand: Lectrotab

Model: A-BK-26

Shipping Weight: 2.60 lb

Shipping Height: 3.00 in

Shipping Width: 3.00 in

Shipping Length: 13.00 in
