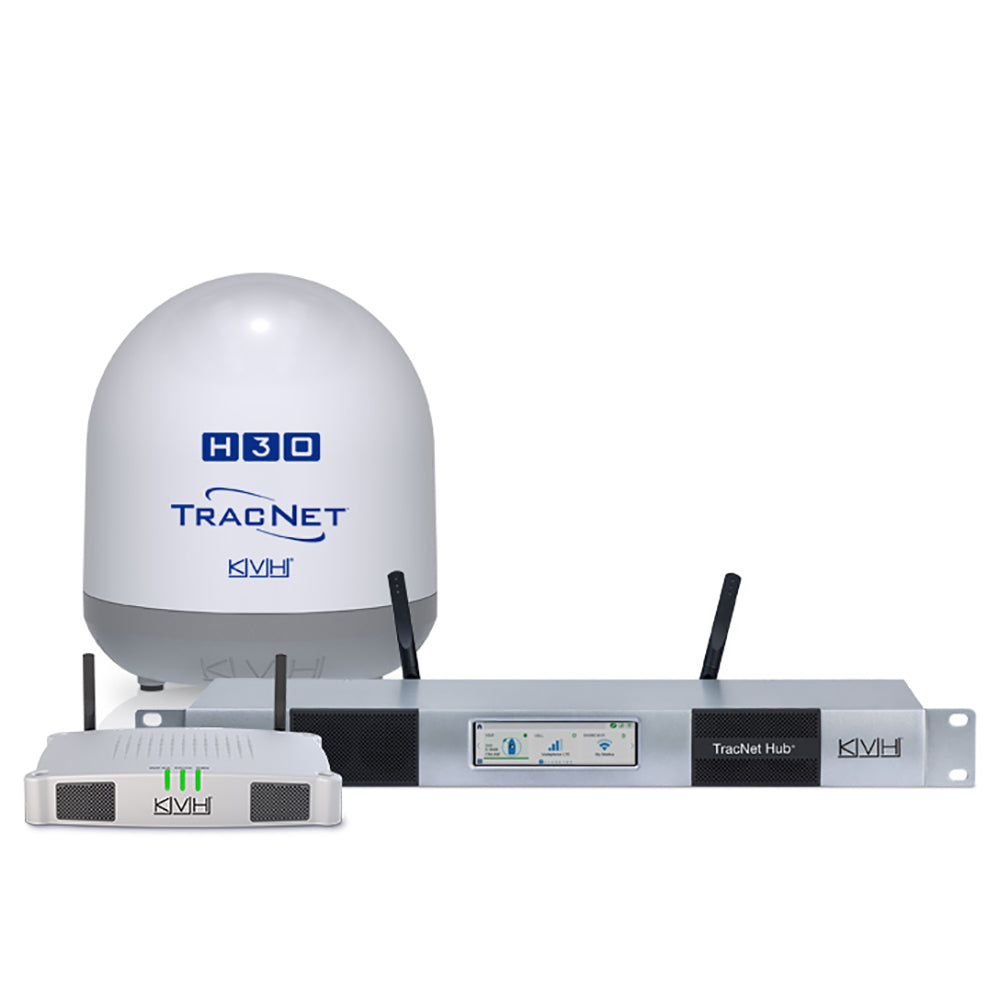

KVH Tracnet H30 Ku-Band Antenna Hub 01-0432-11 - Satellite Connectivity Solution

The KVH TracNet H30 Ku-Band Antenna Hub 01-0432-11 is a cutting-edge satellite connectivity solution that provides the fastest and most reliable connectivity with the KVH ONE hybrid network. With its integrated satellite, cellular, and Wi-Fi technology, the TracNet H30 ensures uninterrupted communication in all sea states.

Stay connected at all times with the following communication options:

• Global HTS Ku-band satellite network, with 276 million sq km (106+ million sq miles) of coverage, powered by Intelsat
• Cellular support in 150+ countries as far as 32+ km (20+ miles) offshore
• Compatibility with shore-based Wi-Fi networks

Features:

• Automatic network switching based on cost, data quality, and more
• Hybrid connectivity options (VSAT, Cellular, and WiFi)
• Two-axis, stabilized skew for enhanced stabilization
• Easy single cable installation with DC and AC power BDUs (below deck units)
• Integrated terminal and network security for cybersecurity
• Optional enterprise-level upgrade for advanced security
• Up to 51% lighter than competitive systems for improved efficiency
• Designed for boats 30+ feet (9+ meters) in length
• Ultra-high efficiency antenna utilizing KVH's RingFire design and groundbreaking dielectric rod feed for excellent reception, even in adverse weather conditions

Technical Specifications:

• Dome Diameter: 14.5" (36.8cm)
• Dome Weight: 24.6 lbs (11.1 kg)
• Maximum Speed Download/Upload: as fast as 6 Mbps/2 Mbps (down/up)
• Elevation/Azimuth Range: 7.7&deg to 75&deg/Unlimited rotation
• Operating Temperature: -22&degF to 131&degF (-30&degC to 55&degC)
• Power Source: DC provided by the TracNet Hub or Hub+
• Single coax cable connection

Learn More:

• KVH Industries on Wikipedia
• Satellite Communication on Wikipedia

Product: Kvh 01-0432-11 Tracnet H30 Ku-Band Antenna Tracnet Hub

Brand: KVH

Model: 01-0432-11
