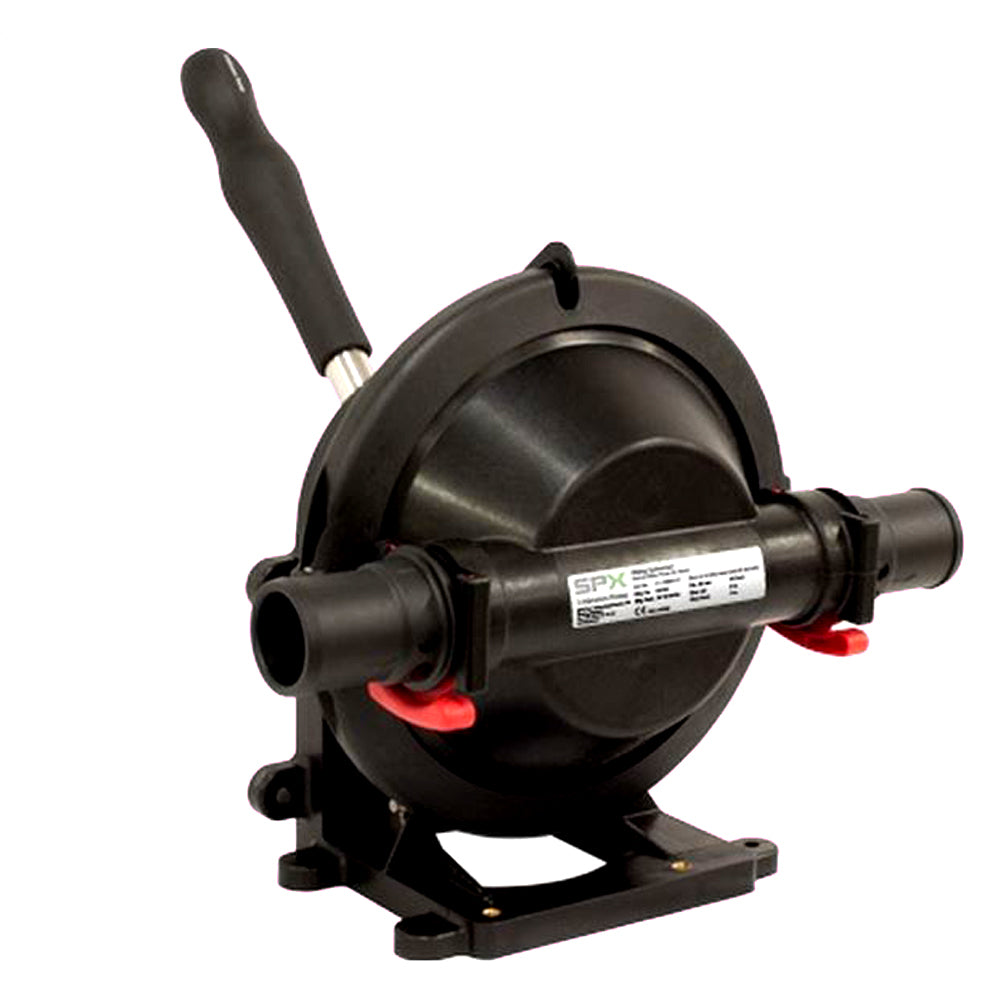

Johnson Pump 10-13530-01 Viking Universal Manual Bilge 38mm

The Johnson Pump 10-13530-01 Viking Universal Manual Bilge Pump - 38mm is a heavy-duty, self-priming, hand-powered bilge pump suitable for nearly any type of installation. Its versatile mounting bracket allows for vertical or horizontal surface mounting, and with the optional Through Deck kit, it can be installed behind bulkheads or below the deck.

The Viking Universal excels at adaptation, as the simple switching of the valves together with the connections allows you to choose the flow direction. The included KlickTiteT straight and 90&deg hose connections can be used in combination, and the hose connections and pump housing can be easily rotated for optimal positioning.

While primarily designed as a powerful bilge pump, the Viking Universal's large 38mm (1-1/2") valves enable it to also be used for pumping toilet waste.

For convenience, the pump includes fasteners for stowing the handle, and a safety clasp ensures that the handle cannot be lost while not in use or during an emergency situation. The Viking Universal meets ISO 15083 standards for bilge pumping systems.

Specifications:

• Body and cover: Polypropylene plastic reinforced with 30% fiberglass
• Diaphragm and valves: Nitrile rubber
• Wetted parts: PP30GF, PA66 GF30, POM, stainless steel, nitrile rubber
• Maximum suction: 3M (10')
• Maximum head: 4M (13')
• Combined suction/head: 7M (23')
• Connection: KlickTiteT connectors 38mm (1-1/2") hose. Both straight and 90&deg bends are included
• Max. liquid temp: +60&degC (140&degF)
• Weight: 1.5 kg (3.3 lbs)

Additional Information:

• Volts = NONE
• Power - Max Continuous (Amps) = NONE
• Outlet Size = 1.5"
• Operation = Non-Automatic
• Gallons Per Minute = NONE
• Gallons Per Hour = NONE

Learn More

• Bilge Pump on Wikipedia

Product: Johnson Pump 10-13530-01 Viking Universal Manual Bilge 38mm

Brand: Johnson Pump

Model: 54304PK

Shipping Weight: 0.40 lb

Shipping Height: 1.00 in

Shipping Width: 8.00 in

Shipping Length: 8.00 in
