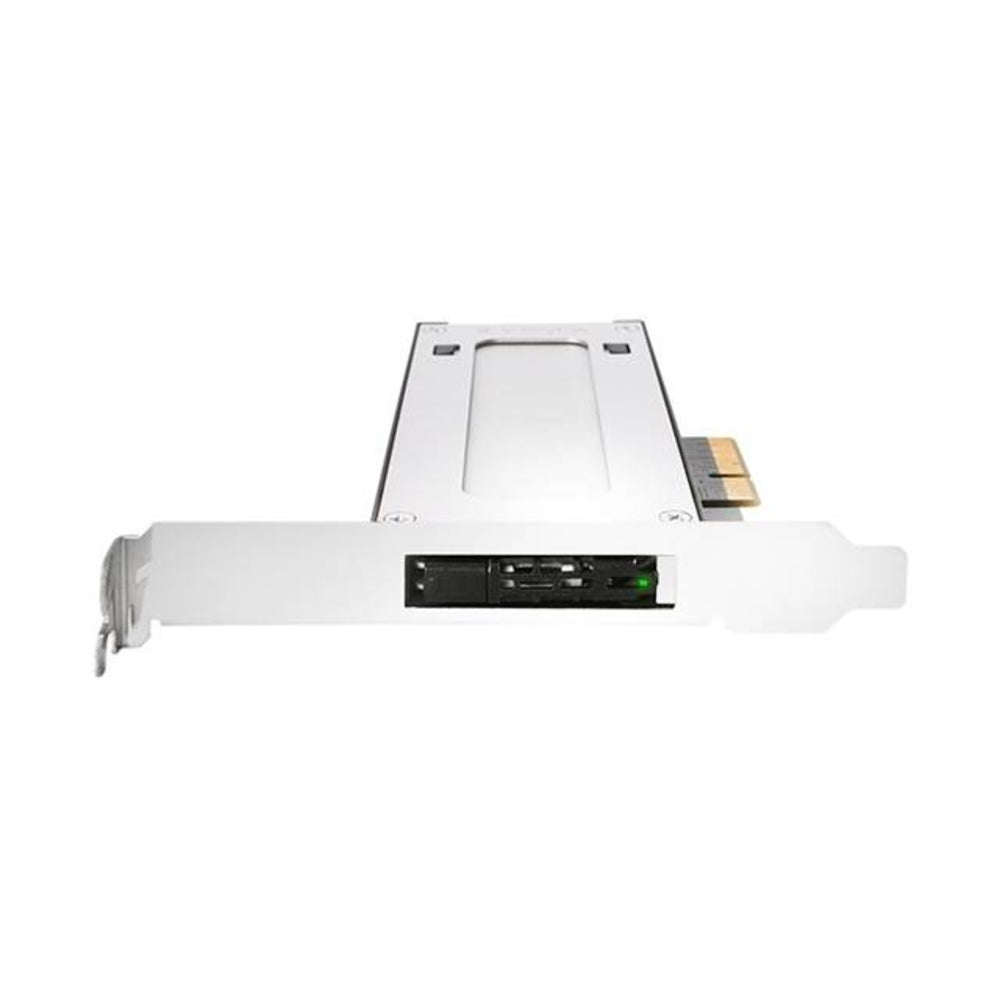

Icy Dock MB840M2P-B Tougharmor M.2 NVMe SSD PCIe 3.0X4

The Icy Dock MB840M2P-B Tougharmor M.2 NVMe SSD PCIe 3.0X4 is a high-performance storage solution designed to accommodate M.2 PCIe NVMe SSDs of various lengths, including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm). It features a tool-less drive installation design, allowing for easy drive maintenance. The removable drive tray and low profile design enable multiple bays to be installed side-by-side in a modular design.

The MB840M2P-B utilizes a PCIe 3.0 x4 interface, which can be installed into PCIe 3.0/4.0 x4, x8, and x16 slots. It can be easily installed into a single-width full-height/half-height PCIe expansion slot. The Eagle-hook lock system ensures that the drive remains secure in the enclosure, while the EMI Grounding protects the hard drives from electrical damage.

With Anti-Vibration Technology (AVT), the MB840M2P-B reduces noise and protects against environmental damage. The Active Power Technology (APT) saves power by shutting down the device when no drive is installed. The PCIe interface provides both power and data transfer, reducing cable clutter.

The built-in thermal pad conducts heat from the drive to the metal tray, ensuring optimal cooling. Additionally, the MB840M2P-B offers an optional HDD activity signal output, allowing you to transfer the drive activity signal to the computer case.

This product comes with an industry-leading 3-year warranty against all defects and offers complimentary support from professionally trained US-based technical support agents.

Specifications:

• Mfr Part Number: MB840M2P-B
• Color: Black & Silver
• Support Drive Size: 1x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110)
• Compatible Drive Type: NVMe
• Number of Drives: 1
• Support Drive Length: 30mm-110mm
• Drive Bay: 1 x PCIe 3.0 or 4.0 x4 / x8 / x16 expansion slot
• Host Interface: PCIe 3.0 x4
• Power Input: Via PCIe
• Transfer Rate: Up to 32Gbps (Depending on hard drive speed)
• Support HDD Capacity: No Limitation
• Drive Cooling: Metal heat dispersion with passive cooling
• Structure/Material: Metal with partial ABS plastic
• Drive Activity LED Indication:
• Drive power: solid green
• HDD access: flashing green
• SATA Connector Insertion Rate: 5,000
• Humidity: 5%~65% RH
• Operating Temperature: 0&degC to 60&degC (32&degF to 140&degF)
• Storage Temperature: -35&degC to 70&degC (-31&degF to 158&degF)
• Compliance: CE, RoHS, REACH
• Dimension (WxHxD): 160 x 122 x 22mm
• Product Net Weight: 181.5g
• Package Net Weight: 260g
• Warranty: 3 years
• Package contents: Device, user manual, screw, I/O Faceplate
