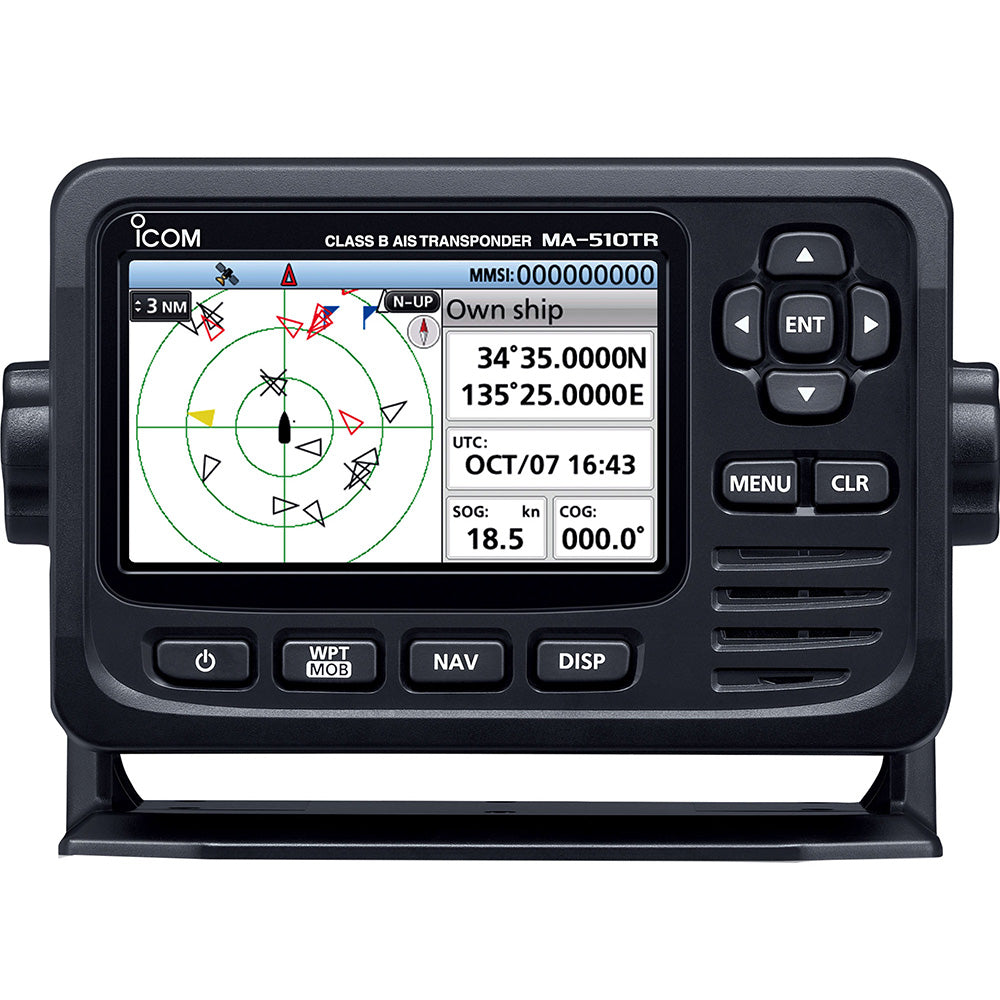

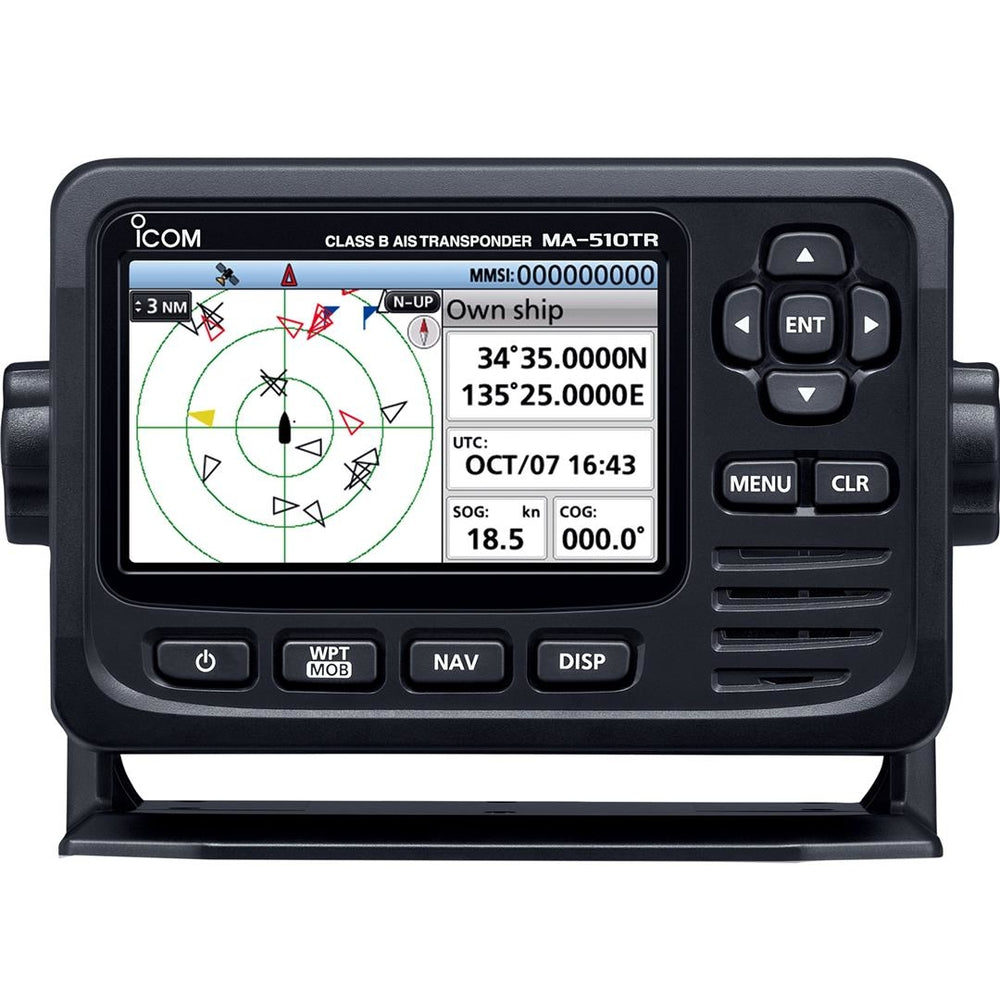

ICOM MA-510TR Class B AIS Transponder with Color Display

The ICOM MA-510TR Class B AIS Transponder with Color Display is a feature-packed transponder that ensures safety and informed navigation for leisure, fishing, and cruising vessels on the open sea. With its GPS navigation function, NMEA 2000-connectivity, and ability to receive both A and B AIS signals, this transponder enhances detection range and increases safety.

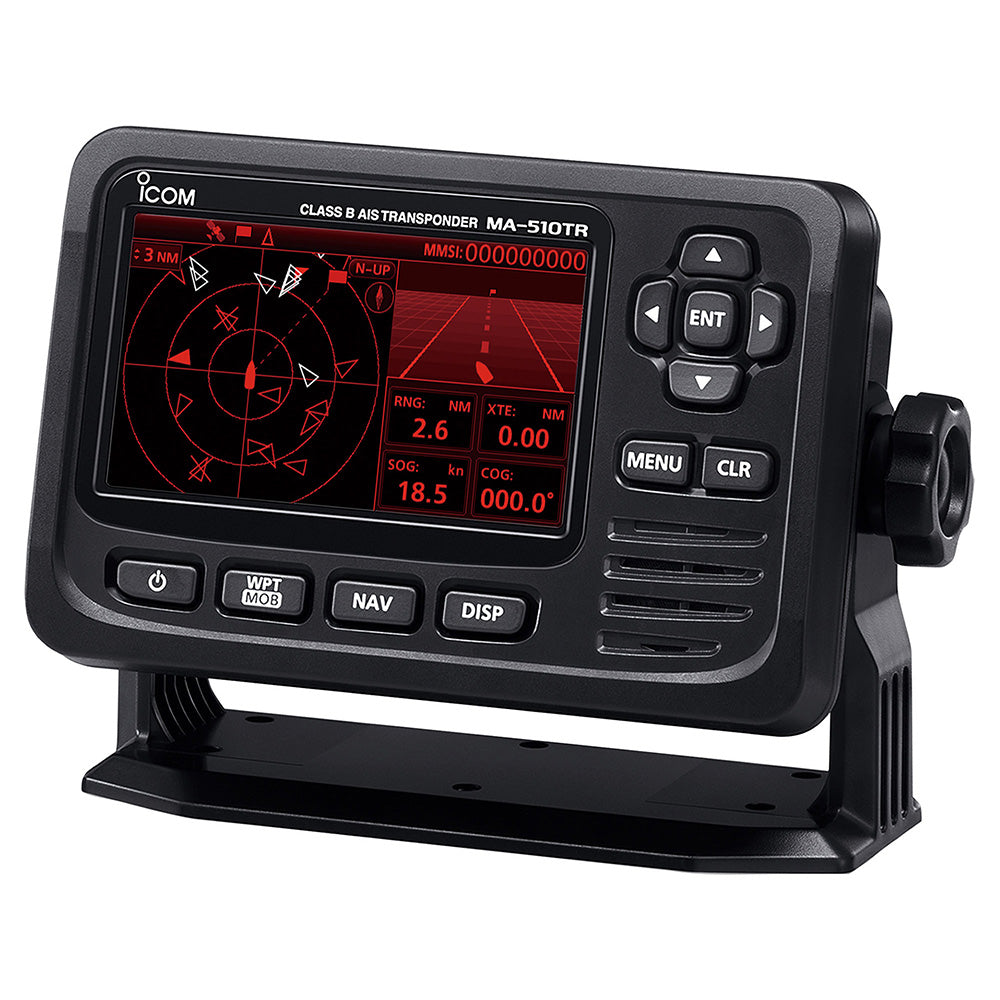

The MA-510TR features a 4.3" color TFT LCD with a wide-viewing angle, providing clear navigation details. Potential collision vessels are marked as red, while registered friends are marked as yellow. Vessels within 6NM CPA and 60 minutes TCPA are categorized into danger or friend lists. The day-mode function ensures visibility in direct sunlight, while the night-mode provides optimal viewing brightness for comfortable operation.

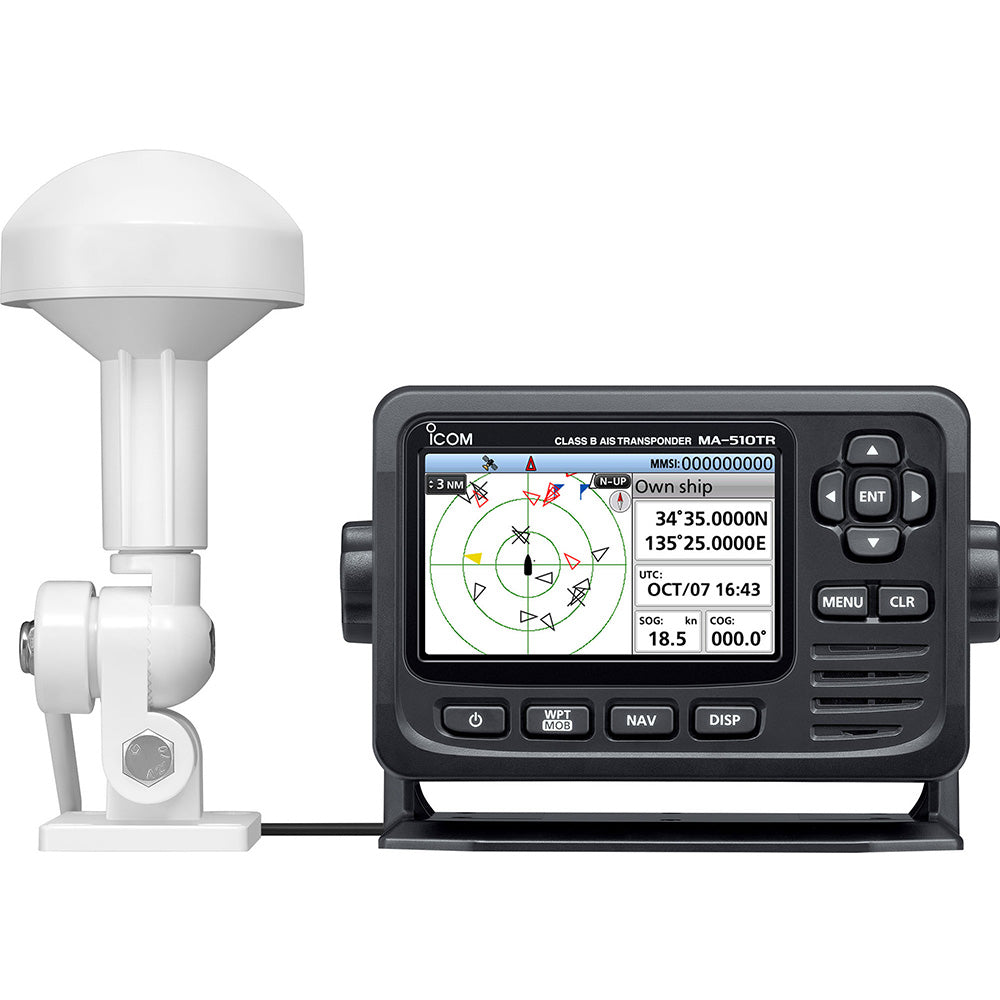

With the built-in GPS Navigation function, users can easily navigate to waypoints or AIS targets. The transponder allows the assignment of up to 100 destinations or fishing spots.

Operate securely and privately with the silent mode function, which temporarily stops sending out position location by switching off the AIS transmitter. Silent mode still receives other AIS signal reports, ensuring safety while keeping fishing spots private from other vessels.

The MA-510TR is compatible with both NMEA 2000 and NMEA 0183/-HS. Connect to a NMEA 2000 network, such as an external plotter, marine radar, and VHF radios. With NMEA 0183/-HS, connect to a transceiver, plotter device, marine radar, external GPS receiver, and a switch button.

Product Features:

• Collision Alarm Function
• Anchor Watch Alarm
• Man Overboard
• Individual DSC Call available with a compatible Icom VHF with an accessory cable
• USB connectivity
• Multi-lingual user interface
• 12V and 24V compatible

Specifications:

• General
• Frequency coverage: 161.500 MHz to 162.025 MHz
• Type of emission: 16K0GXW (GMSK)
• Antenna impedance: 50 Ohms nominal
• Operating temperature range: -20&degC to +60&degC; -4&degF to +140&degF
• Power supply requirement: Negative ground, 12V or 24V DC nominal (9.6V to 31.2V)
• Current drain (at 12V DC): Tx - 1.5A, Rx - 0.7A
• Dimensions (approximate): 6.5 (W) x 4.3 (H) x 3.6 (D) inches
• Transmitter
• Output power: 2W
• Modulation: 16K0GXW (GMSK)
• Conducted spurious emission: Less than -36 dBm (9 kHz-1 GHz), Less than -30 dBm (1 GHz-4 GHz)
• Receiver (AIS)
• Sensitivity: Less than -110 dBm
• Adjacent channel selectivity: More than -31 dBm
• Spurious response: More than -31 dBm
• Intermodulation: More than -36 dBm
• Conducted spurious emissions: Less than -57 dBm (9 kHz-1 GHz), Less than -47 dBm (1 GHz-4 GHz)
• Blocking: More than -15 dBm (±0.5 MHz ±5 MHz), More than -23 dBm (±5 MHz - ±10 MHz)
• Co-channel: More than -111 dBm
• Receiver (DSC)
• Frequency coverage: 156.525 MHz
• Type of emission: 16K0G2B
• Sensitivity: Less than -110 dBm
• Adjacent channel selectivity: More than 70 dBm
• Spurious response: More than -34 dBm
• Intermodulation: More than -39 dBm
• Blocking: More than -20 dBm
• GPS Antenna
• (Specifications for GPS antenna are not provided)

Learn More:

• Automatic Identification System on Wikipedia

Product: ICOM MA-510TR Class B AIS Transponder with Color Display

Brand: Icom

Model: MA510TR

Shipping Weight: 5.45 lb

Shipping Height: 6.00 in

Shipping Width: 10.00 in

Shipping Length: 14.00 in
