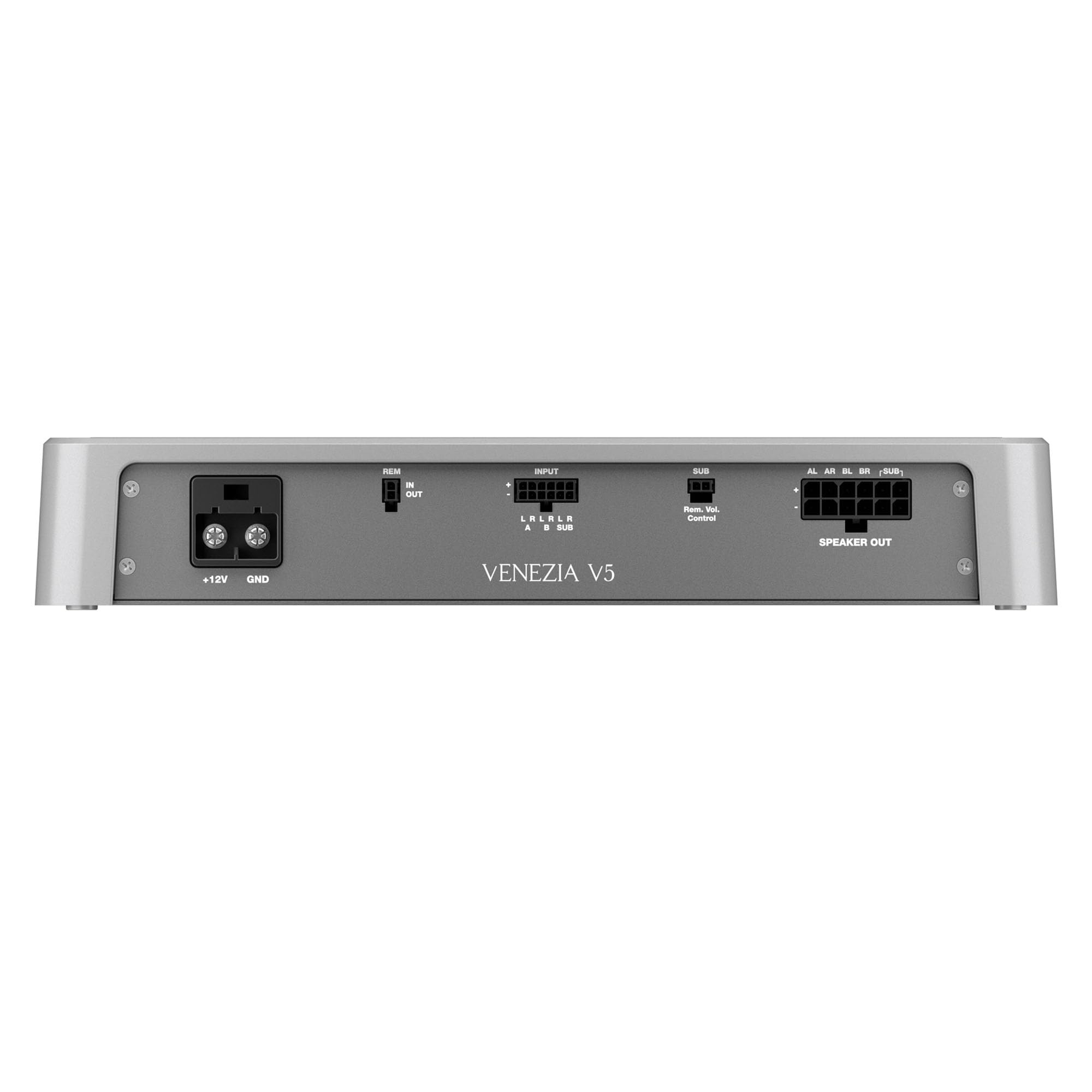

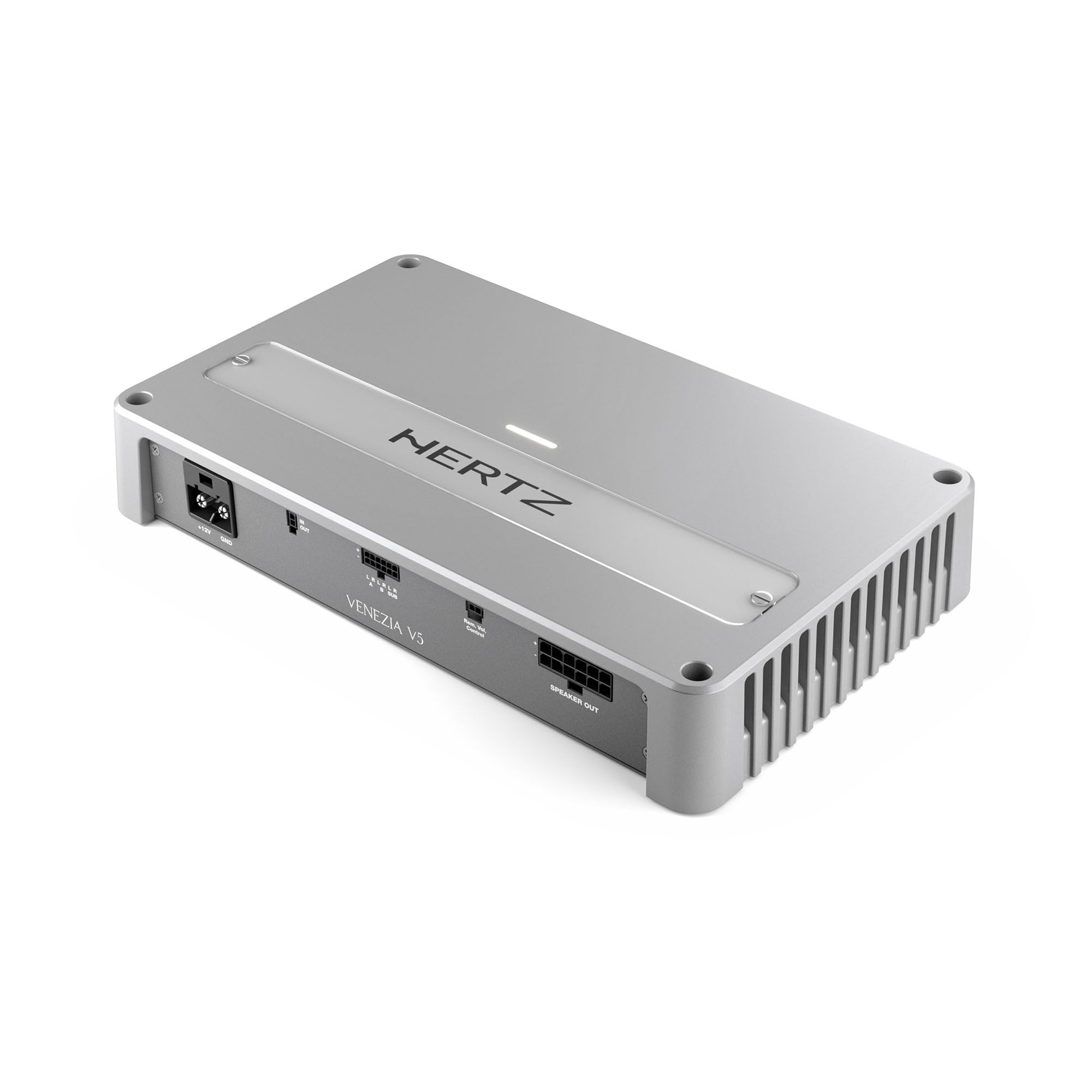

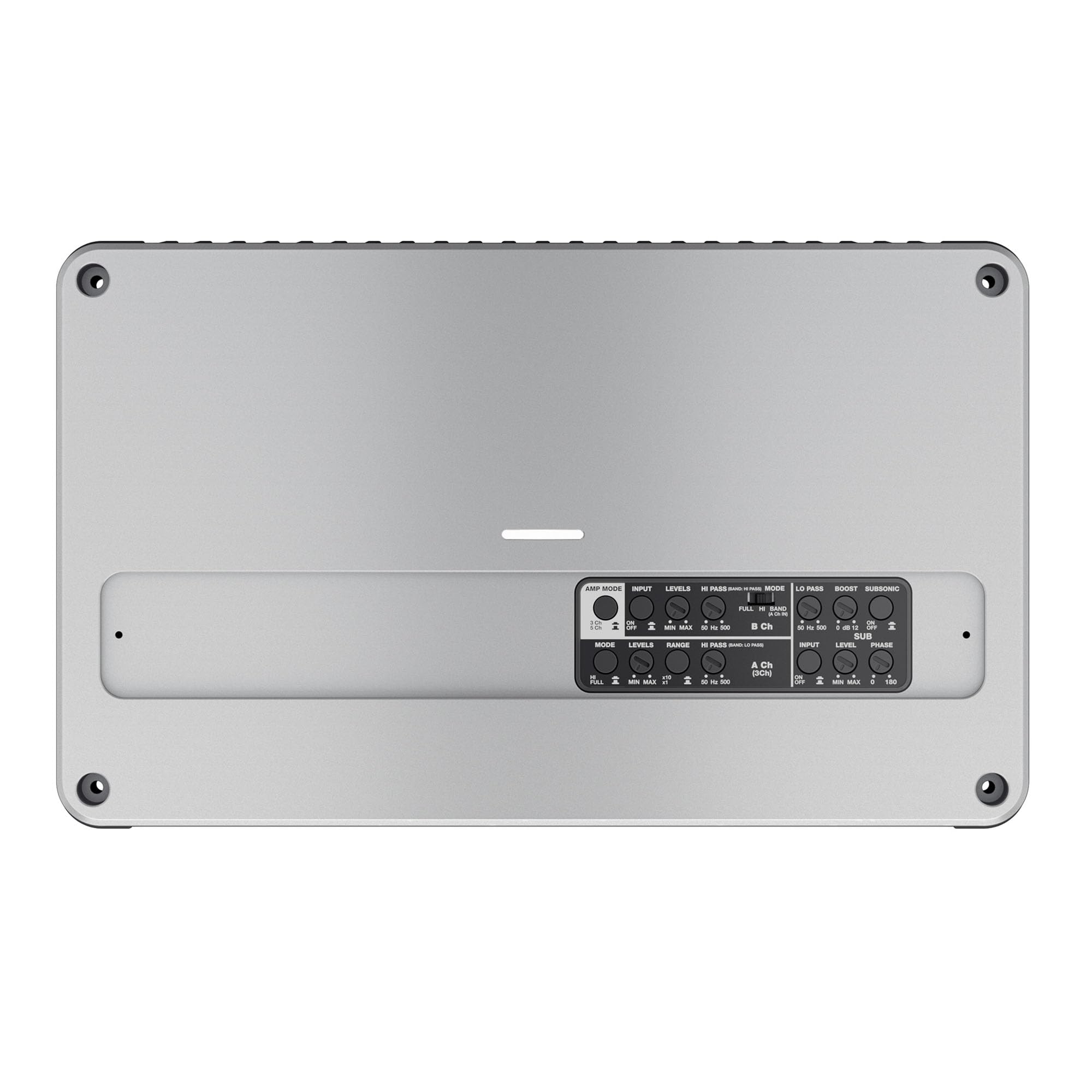

Hertz Venezia V5-5-Channel Marine Amplifier 220W x 4 + 780W x 1 @ 2-Ohm

Venezia V5 is the most-powerful five-channel Hertz marine amplifier ever, featuring 130 W x 4 (4) plus 470 W (4) for the subwoofer! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V5 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V5 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting. Power Supply - Power supply voltage: 9 16 VDC ldling current (power ON/OFF): 1.8 A / 0.04 mA Consumption@ 1, 14.4 VDC (Max Musical Power): 70 A Remote In: 7 15 VDC - 1 mA Amplifier Stage - Distorsion - THD (100Hz @ 4): <0,05% Bandwidth: 10 42 kHz S/N Ratlo (A welghted @ 1 V): 102 dB Damping factor: (100Hz @ 4) 130 Pre-ln sensitivity: 0.2 5 VRMS Pre-ln impedance: 10 k Weight (kg/lb): 3.72 / 8.2 Adjustable Crossovers: yes Output Power - 5Ch: 130 W x 4 (4) + 490 x 1 (4) 5Ch: 220 W x 4 (2) + 820 W x 1 (2) 3Ch: 440 W x 2 (4) + 490 W x 1 (4) 3Ch: 440 W x 2 (4) + 820 W x 1 (2) Total Power RMS: 1700 W

FEATURES

• Hertz Advanced Class D architecture maximizes efficiency and power while minimizing heat and electromagnetic radiation – without penalizing sound quality!
• Hi-Res certified performance, with an extended audio band up to 40 kHz.
• Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marinegrade (epoxy coated) PCB boards.
• To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.
• The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.

Product: Hertz Venezia V5-5-Channel Marine Amplifier 220W x 4 + 780W x 1 @ 2-Ohm

Brand: HERTZ

Model:

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
