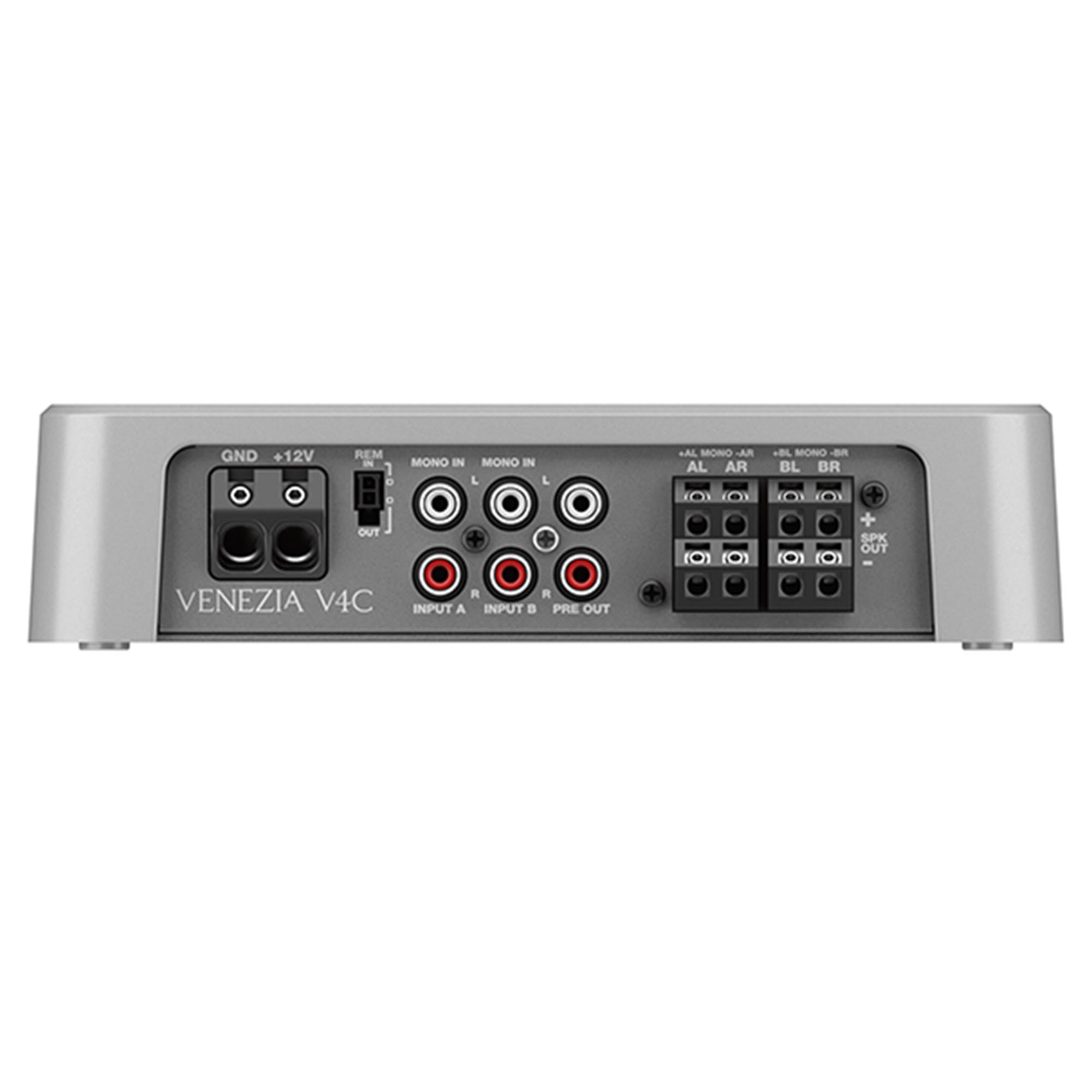

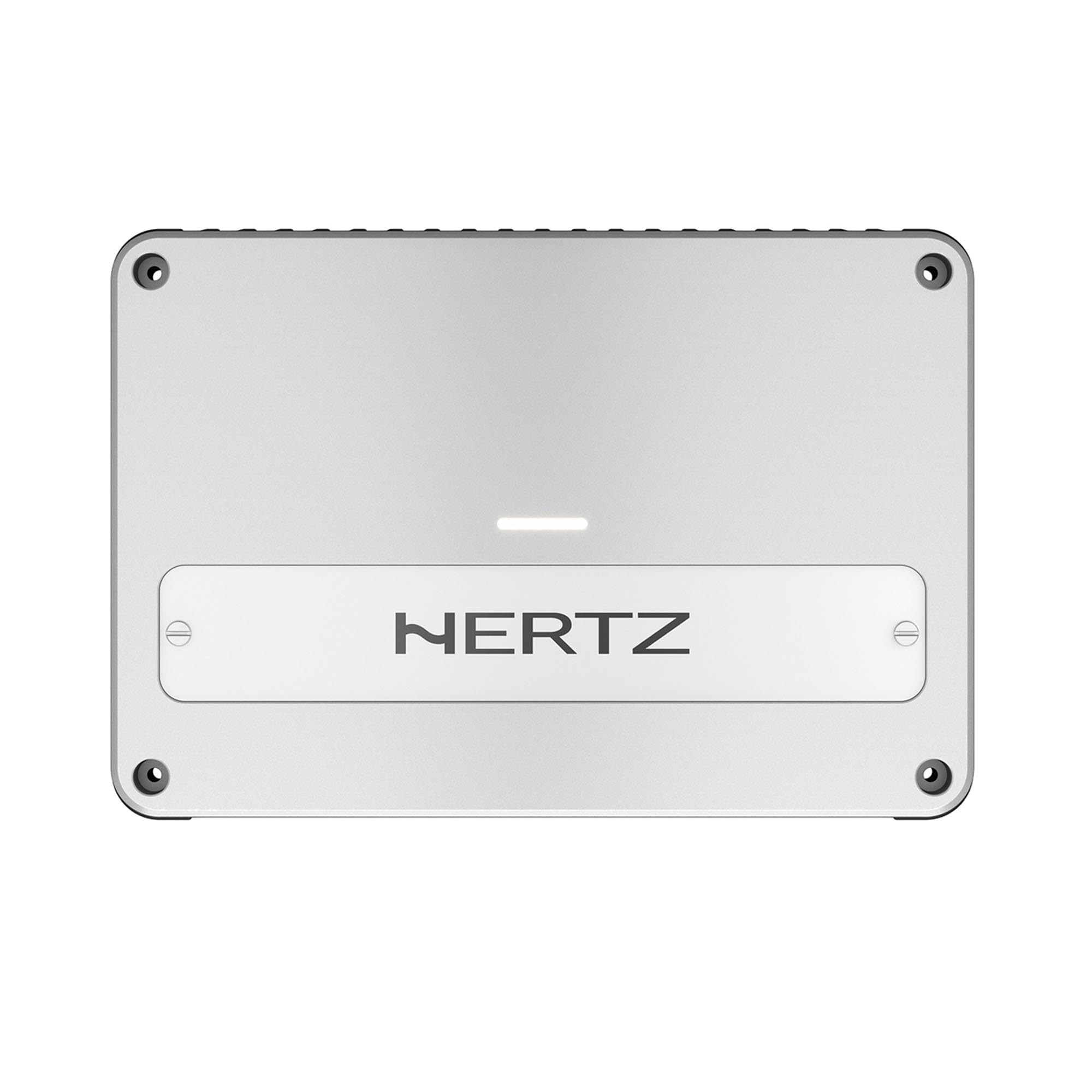

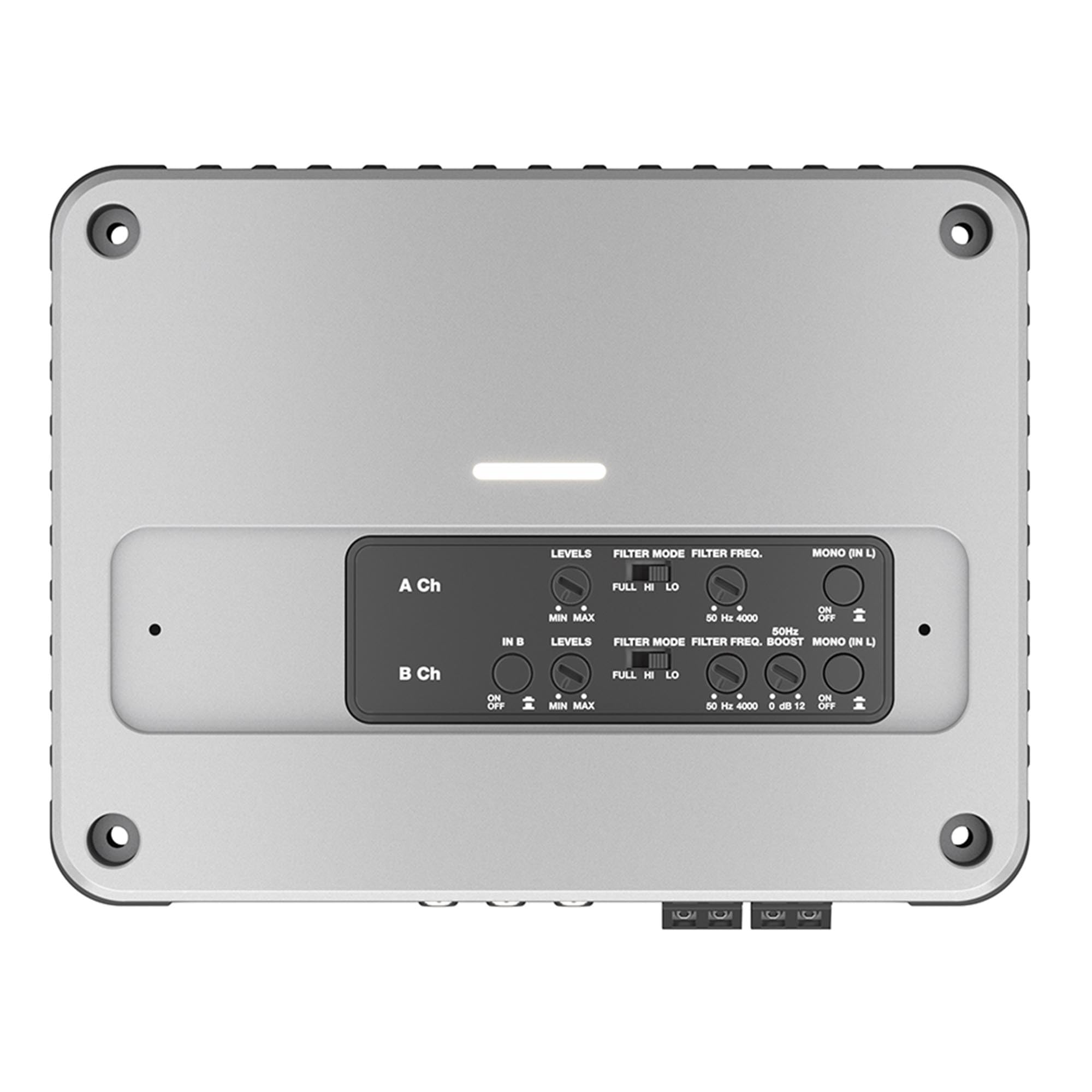

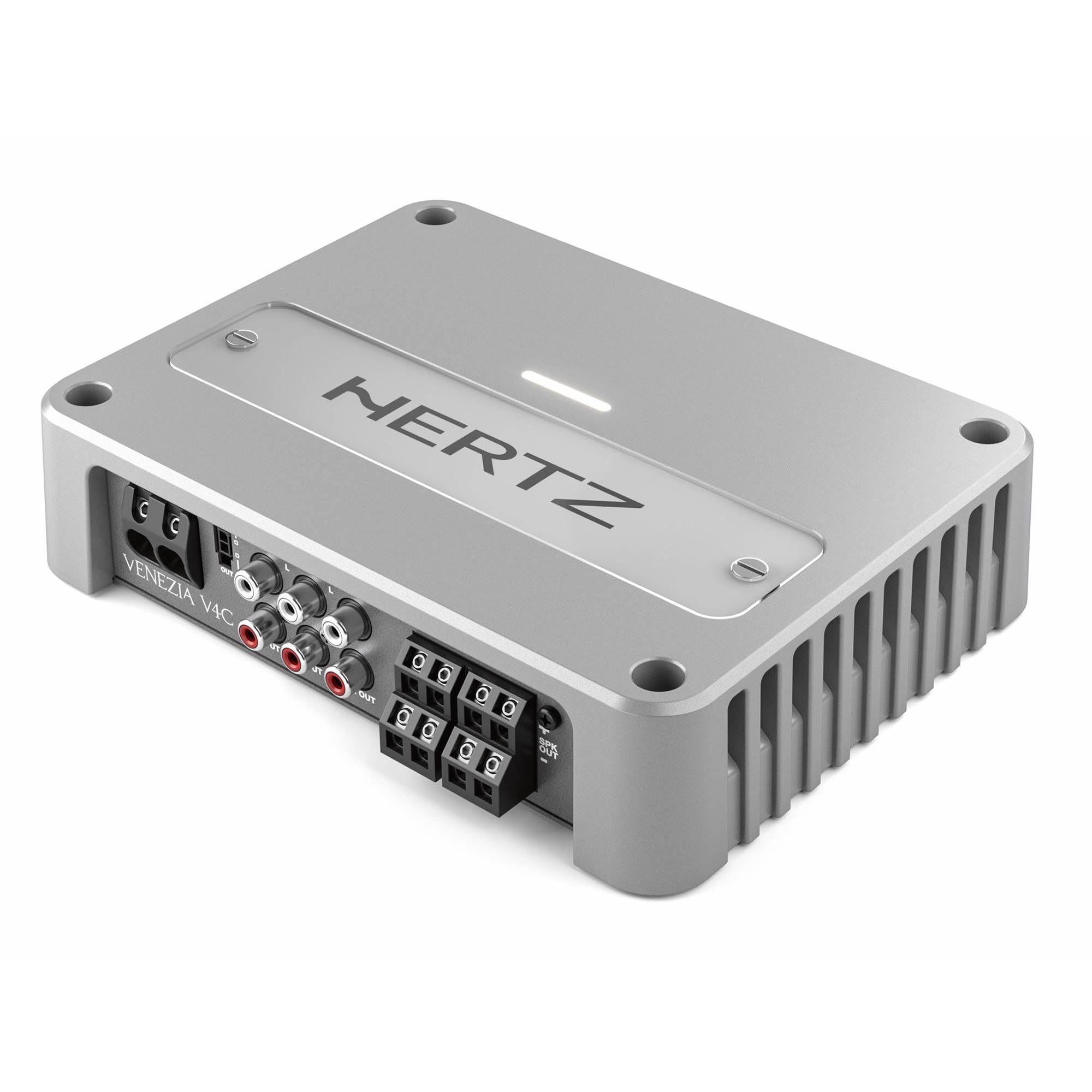

Hertz Venezia Compact V4C - 4-Channel Compact Marine Amplifier 150 W x 4 @ 2-Ohm

Venezia V4C compact marine amplifier features an optimized power/size ratio boosting 110 W x 4 (4) and 380 W x 2 (4)! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability deliver the output levels needed in the marine environment. Venezia V4C is engineered and tested for marine applications and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. Last but not least, Venezia V4C is fully protected by short-circuit, overload, and thermal protections - with auto-resetting. General Specs Channels 4 - 3 - 2 POWER SUPPLY Power supply voltage 9 16 VDC ldling current (power ON/OFF): 1 A / 0.04 mA Consumption@ 1, 14.4 VDC (Max Musical Power): 21 A Remote In: 7 15 VDC - 1 mA AMPLIFIER STAGE Distorsion - THD (100Hz @ 4): <0,06% Bandwidth: 10 42 kHz S/N Ratlo (A welghted @ 1 V): 102 dB Damping factor (100Hz @ 4) 150 Pre-ln sensitivity: 0.2 5 VRMS Load impedance (MIN) @4Ch: 2 + 2 + 4 @3Ch: 2 @2Ch: 4 Adjustable Crossovers: yes Output Power OUTPUT POWER (RMS) @ 14.4 VDC, THD 1% 4Ch: 110 W x 4 (4) 4Ch: 190 W x 4 (2) 3Ch: 110 W x 2 (4) + 380 W x 1 (4) 3Ch: 190 W x 2 (2) + 380 W x 1 (4) 2Ch: 380 W x 2 (4) Total Power RMS: 760 W INPUTS / FILTERS Inputs: PRE IN Pre Out FULL range (FRONT): Yes FRONT Ch. filters FULL: Yes Hi-Pass : 50 4k Hz @ dB/Oct Lo-Pass: 50 4k Hz @ dB/Oct REAR Ch

FEATURES

• Hertz Advanced Class D architecture maximizes efficiency and power while minimizing heat and electromagnetic radiation – without penalizing sound quality!
• Hi-Res certified performance, with an extended audio band up to 40 kHz.
• Electronics components corrosion caused by exposure in wet environments is totally neutralized by the use of dedicated marinegrade (epoxy coated) PCB boards.
• To satisfy the standards required by ASTM-B117, Hertz Marine products are tested with massive salt fog spray to ensure a complete resistance to corrosion, typical of this atmospheric agent.
• The protection grade IP64 define all the Hertz Marine products as totally protected against water jets of different entities, making them highly performant in the marine environment.

Product: Hertz Venezia Compact V4C - 4-Channel Compact Marine Amplifier 150 W x 4 @ 2-Ohm

Brand: HERTZ

Model:

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
