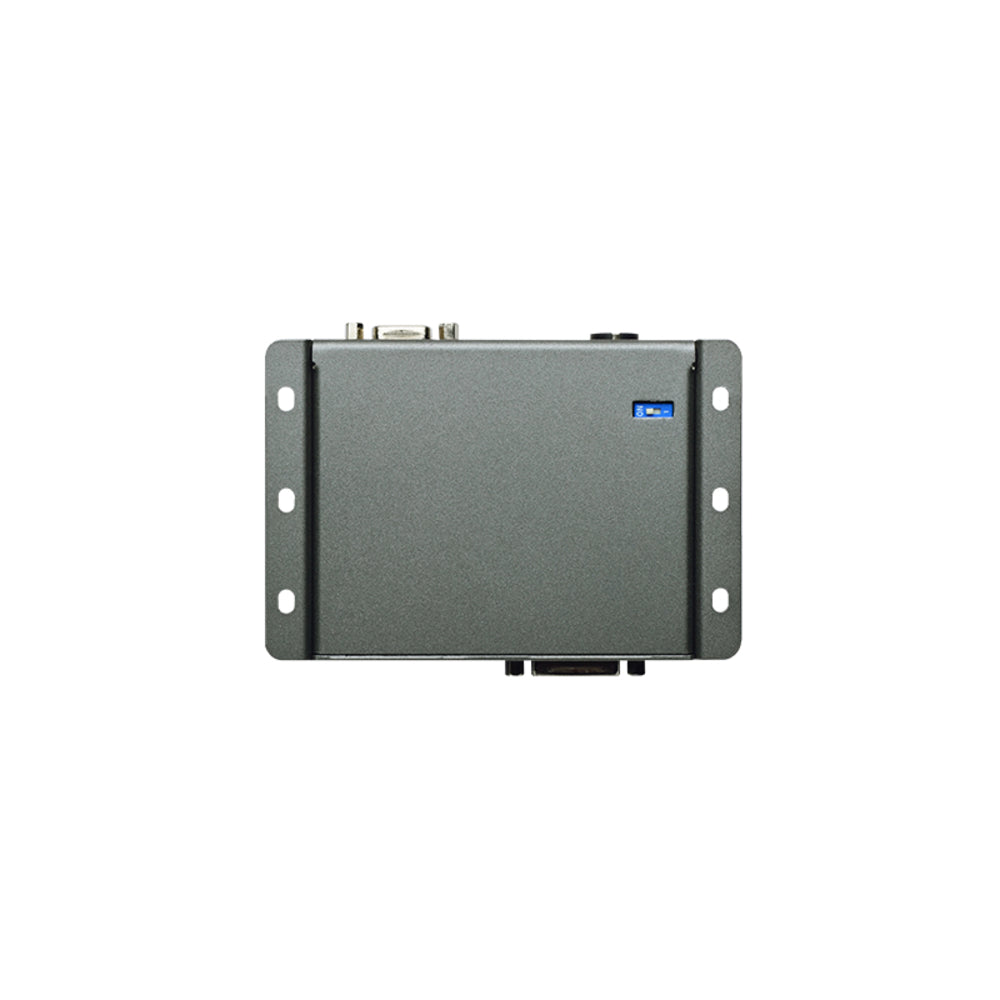

Gefen Inc Ext-VGA-DVI-Sc VGA to DVI Scaler/Converter Pre-Order

Product Description:

The Gefen Inc Ext-VGA-DVI-Sc VGA to DVI Scaler/Converter is a versatile video converter that allows you to scale and convert video from a VGA source for use with a DVI display. With the ability to scale video up to 1080p Full HD and 1920 x 1200 (WUXGA), this converter ensures high-quality visuals for your DVI display. The intuitive on-screen display (OSD) menu makes setup and control easy, while the Gefen Syner-G software suite allows for configuration and updates. Its wide power supply operating range of 6V to 24V DC offers installation flexibility, and the locking power supply connector ensures secure installation. This converter is perfect for mobile use, complex studio systems, and installations with remotely located power sources.

Product Features:

• Width: 123mm
• Depth: 82mm
• Height: 26mm
• Weight: 200g
• Supported video modes: 1080p
• Host interface: VGA (D-Sub)
• Output interface: HDMI
• Maximum video resolution: 1920 x 1200
• Input voltage: 12V
• Operating temperature (T-T): 0&degC - 50&degC
• Storage temperature (T-T): -20&degC - 85&degC
• Operating relative humidity (H-H): 5% - 90%
• Storage relative humidity (H-H): 0% - 95%
• Product color: Grey

How It Works:

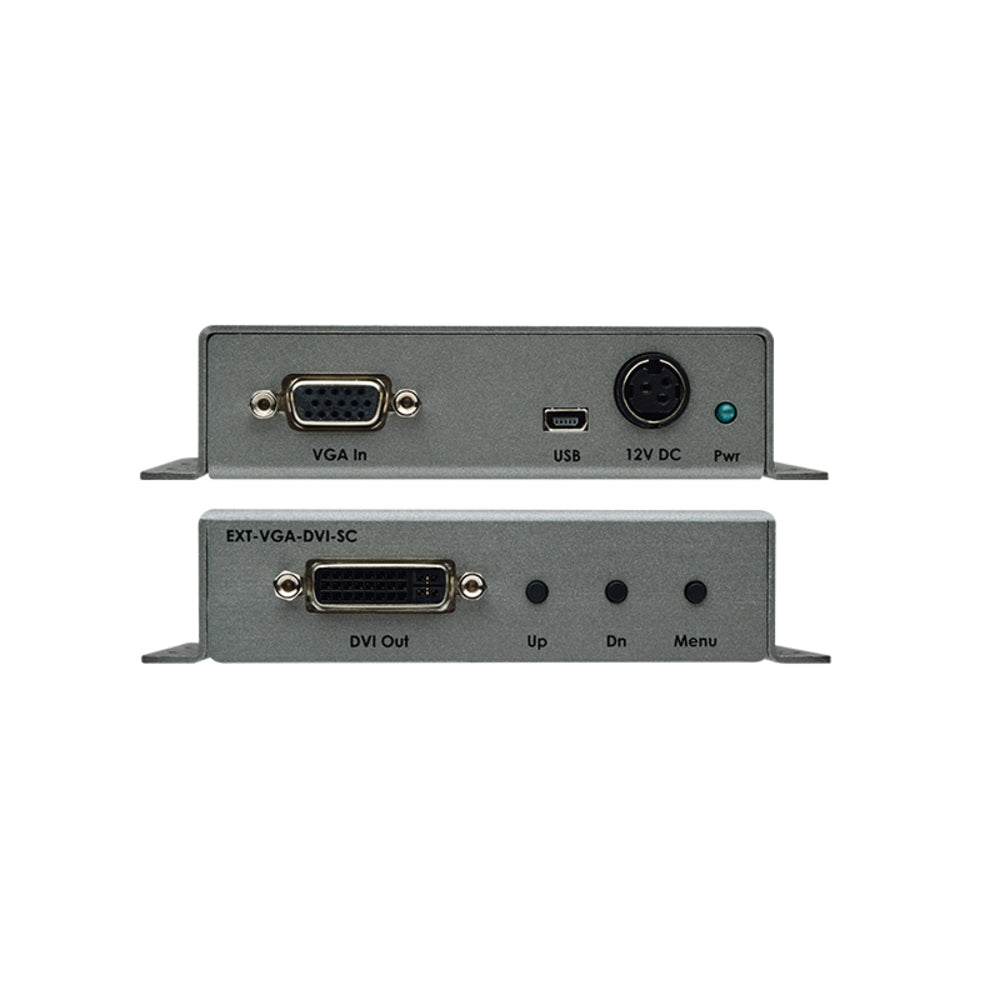

To use the Gefen Ext-VGA-DVI-Sc VGA to DVI Scaler/Converter, simply connect a VGA source to the VGA input using the included VGA cable. Then, connect a DVI display to the DVI output using a DVI cable. Plug the included 12V DC power supply into the unit and an electrical outlet. The power LED will glow blue to indicate power supply connection. Once connected and powered on, press the Menu button to access the on-screen display (OSD). Use the Up and Dn buttons to navigate through the OSD's various functions.

Learn More:

For more information about VGA, DVI, and video scaling, you can visit the following Wikipedia pages:

• VGA Connector
• Digital Visual Interface (DVI)
• Video Scaling

Product: Gefen Inc Ext-VGA-DVI-Sc VGA to DVI Scaler/Converter Pre-Order

Brand: Gefen

Model: EXT-VGA-DVI-SC

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
