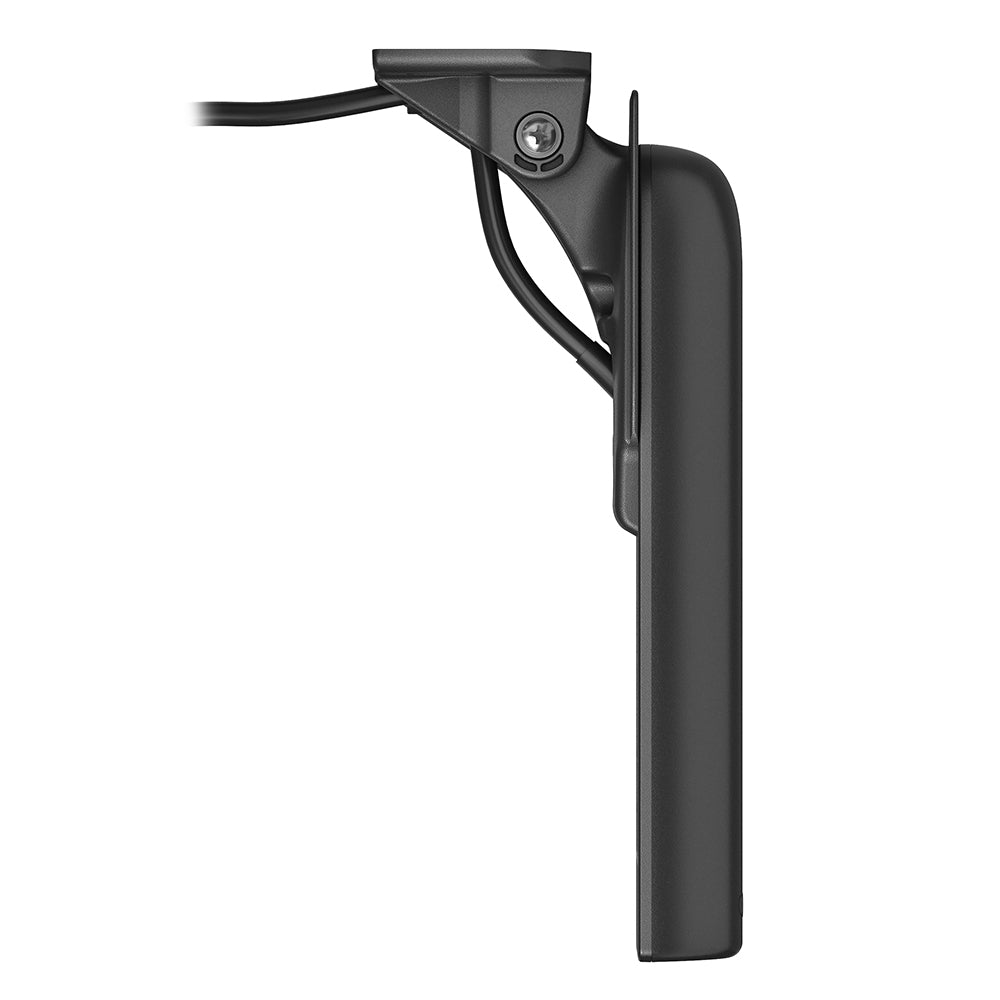

Garmin GT56UHD-TM Transom Mount Transducer

See everything below and around your boat with the Garmin GT56UHD-TM Transom Mount Transducer. This all-in-one transducer offers ultimate versatility, featuring Ultra High-Definition ClearVü and SideVü scanning sonars, high wide CHIRP traditional sonar, and more, so you can spend more time catching fish.

With Ultra High-Definition scanning sonar, you'll get brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars. It puts more power on targets via a downward-facing element. Additionally, you can see everything the first time with stunningly clear images of structure and fish off to the sides of your boat. SideVü sonar now has 20% greater range at 1,000 kHz, so you can see even farther than before.

The Garmin GT56UHD-TM Transducer offers multiple sonar frequencies to cover all depths. It delivers 455 kHz, 800 kHz, and 1,000 kHz for top performances in various water conditions. You can experience remarkably clear target separation and definition up to 800' below your boat.

Featuring high-contrast vivid scanning sonar color palettes, this transducer makes it easier than ever to distinguish targets and structure. It includes transom and trolling motor mounting hardware to cater to everyone's setup.

Specifications:

• FREQUENCY:
  • Traditional High-wide CHIRP (150-240 kHz)
  • ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)
• POWER:
  • Traditional 350 W
  • ClearVü/SideVü 500 W
• BEAMWIDTH:
  • Traditional CHIRP: 24-16
  • ClearVü 0.52 x 52 at 1000 kHz, 0.64 x 35 at 800 kHz, 1.1 x 52 at 455 kHz
  • SideVü 0.52 x 52 at 1000 kHz, 0.64 x 35 at 800 kHz, 1.1 x 52 at 455 kHz
• MAXIMUM DEPTH:
  • Traditional: 800 ft freshwater
  • ClearVü: 400 ft
  • SideVü: 500 ft
• DEPTH/SPEED/TEMPERATURE: Depth and temperature
• NUMBER OF PINS: 12
• CABLE LENGTH: 25 ft
• SUPPORTED DEADRISE/TRANSOM ANGLES: 0&deg-70&deg degree transom

Learn More:

• Ultra High-Definition Imaging on Wikipedia
• CHIRP Sonar on Wikipedia
• Side-scan Sonar on Wikipedia

Product: Garmin 010-13073-00 Gt56Uhd-Tm Transom Mount Transducer

Brand: Garmin

Model: 010-13073-00

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
