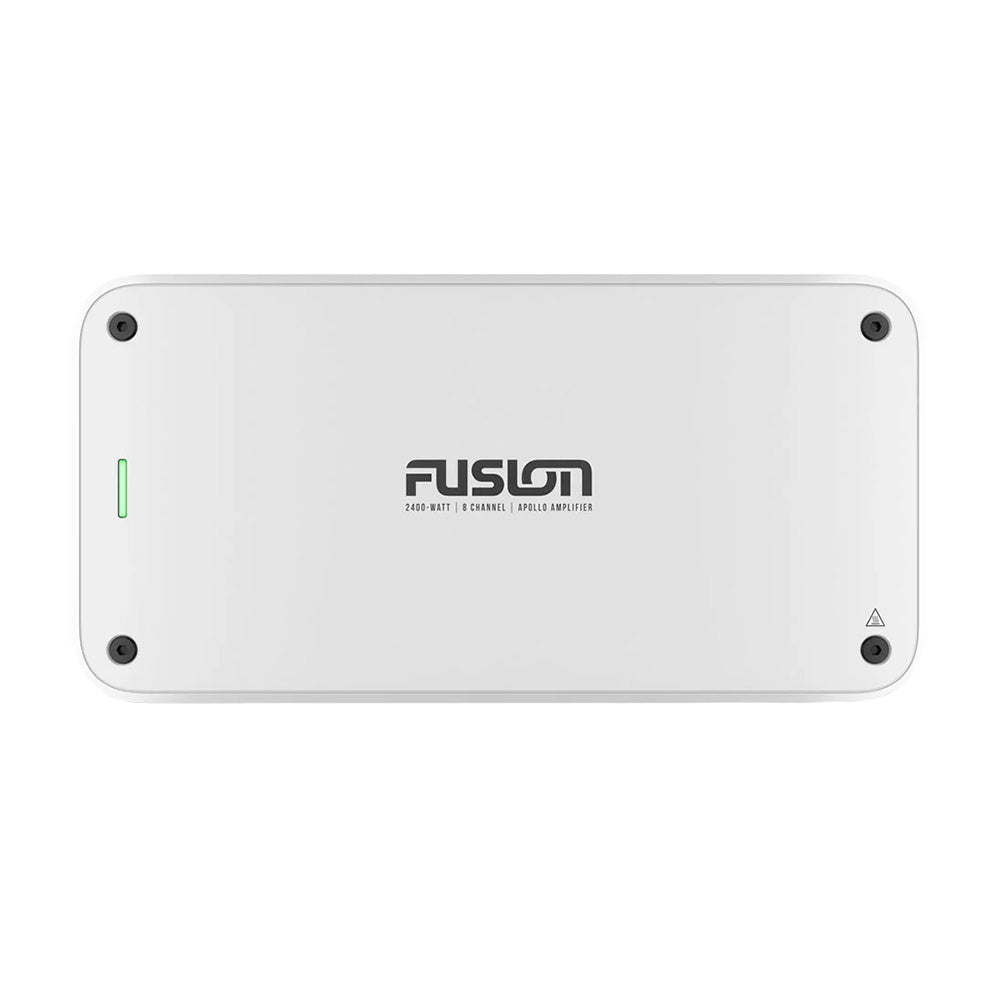

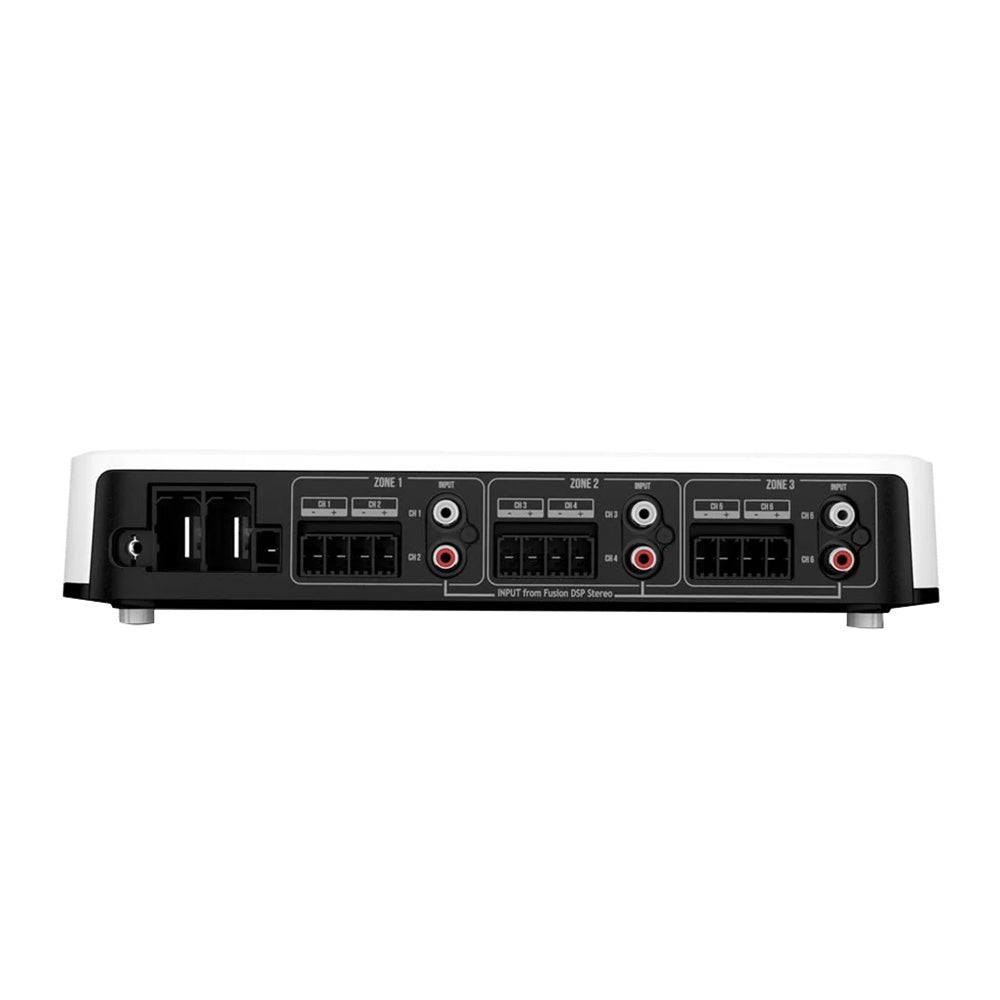

Fusion Electronics 010-02284-85 Apollo 8 Channel Amplifier 2400 Watt 12V

The Fusion Electronics Apollo 8 Channel Amplifier is a powerful and efficient amplifier that delivers high-quality audio for your marine audio system. With a total power output of 2400 watts and 150-watt RMS per channel, this amplifier can power up to eight pairs of speakers or four pairs of speakers and two subwoofers.

The Apollo amplifier features the Easy Tune feature, which automatically regulates audio settings, eliminating the need for manual adjustments. This ensures that you get the best sound quality without any hassle. The amplifier also has LED indicators that allow you to easily identify electrical issues such as shorts or overheating.

With its minimal distortion and noise, the Fusion Apollo amplifier provides clear and high-quality audio even at higher volumes. The included mounting brackets make installation a breeze, and the ignition-protected design prevents potential damage from overheating.

The amplifier is designed to withstand marine conditions, with a conformal-coated PCB that provides extra protection against salt fog, temperature, vibration, and UV. It is also 2 ohm stable, allowing you to connect up to two speakers per channel for increased setup options.

Features:

• 2400 watts total power output
• 150-watt RMS per channel
• Easy Tune feature for automatic audio settings
• LED indicators for electrical issue identification
• Minimal distortion and noise for high-quality audio
• Included mounting brackets for easy installation
• Ignition-protected design for overheating prevention
• Conformal-coated PCB for extra protection
• 2 ohm stable for increased setup options

Specifications:

• Physical Dimensions without Bracket (L x W x H): 14.13" x 7.06" x 1.75" (359 x 180 x 45 mm)
• Physical Dimensions with Bracket (L x W x H): 14.13" x 7.06" x 2.13" (359 x 180 x 50 mm)
• Weight: 6.94 lb (3.15 kg)
• Water Rating: IPX2
• Amplifier Class: Class-D
• CEA-2006 Power Rating: 150 watt RMS x 8 at 14.4 V input - 4 ohm < 1% THD
• Total Rated Power Output, 2 Ohm (Watts): 290 watt RMS x 8 at 14.4 V input - 2 ohm < 1% THD
• Total Rated Power Output, 4 ohm Bridged (watts): 580 watt RMS x 4 at 14.4 V input - 4 ohm Bridged < 1% THD
• Peak Power (watts): 2400 watts
• Input Sensitivity: 1.6 V RMS
• Input Impedance: 22k ohm
• Operating Voltage: 10.8 V - 16 V DC
• Current Draw, in Standby/off Using Amplifier on Wire: < 5 mA at 14.4 V input
• Current Draw, On, No Audio: < 1.60 A at 14.4 V input
• Fuse Rating: 125 A electronic fuse (no replacement necessary)
• Power-Cable Fuse Model and Rating: Bussmann BK/AMI-030 30 A fast-acting
• Ignition Safety Protected (SAE)

In the Box:

• One Apollo 8-channel amplifier
• One mounting bracket
• One power connector
• Four speaker connectors with high-power mode adapters
• Four 8-gauge, flat-head self-tapping screws
• Four 8-gauge, pan-head self-tapping screws (for mounting bracket)
• Four screw covers
• Fuse holder
• Mounting template
• Installation instructions
• ISPI

Learn More

For more information about amplifiers, you can visit the Amplifier Wikipedia page.

Product: Fusion Electronics 010-02284-85 Apollo 8 Channel Amplifier 2400 Watt 12V

Brand: Fusion

Model: 010-02284-85

Shipping Weight: lb

Shipping Height: in

Shipping Width: in

Shipping Length: in
