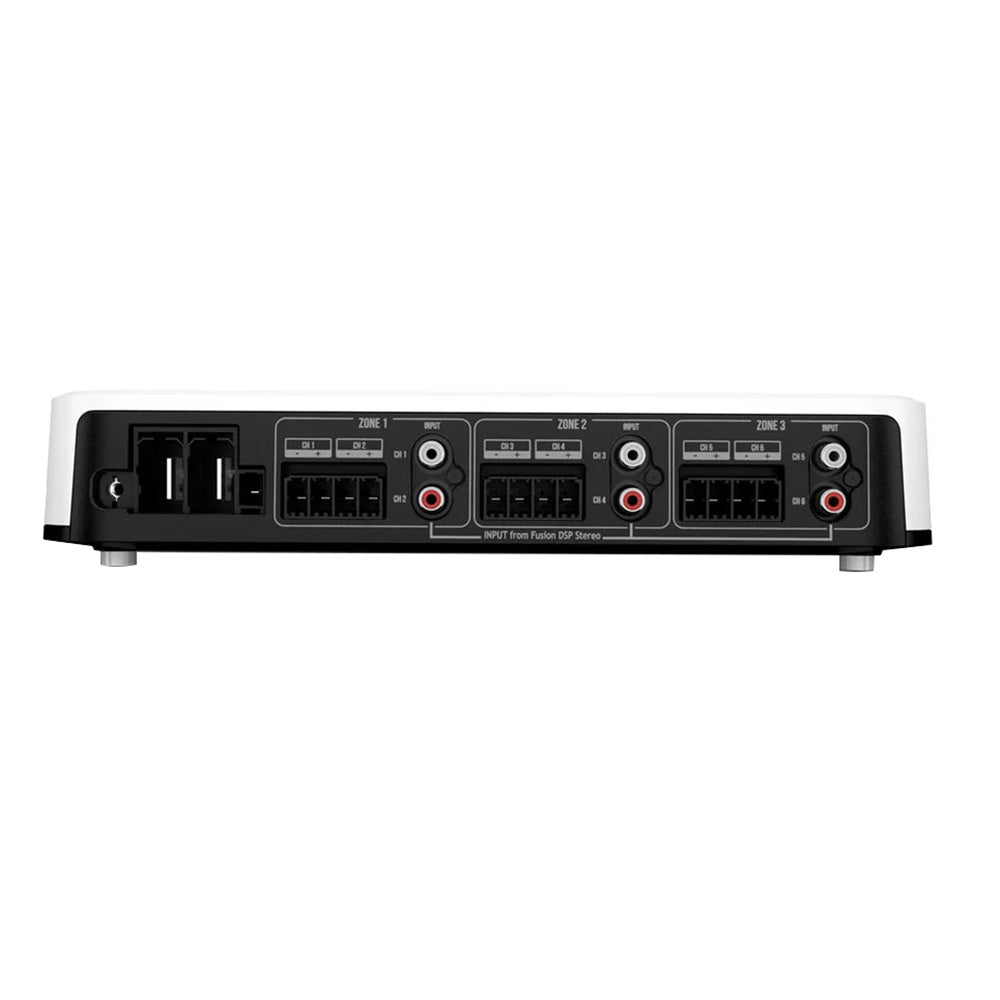

Fusion Electronics 010-02284-65 Apollo 6 Channel Amplifier 1800 Watt 12V

This Apollo Marine 6 Channel 1800-Watt Amplifier is designed to power up to six pairs of speakers or four pairs of speakers and one subwoofer with its 150-watt RMS per channel. It includes high-power mode adapters for simple bridging to increase power. With features such as Easy Tune, LED indicators, and mounting brackets, this amplifier provides high-quality audio and simple installation.

Features:

• Efficient power usage to prevent draining the battery quickly
• Easy Tune feature automatically adjusts audio settings
• LED indicators for identifying electrical issues
• Minimal distortion and noise for quality audio
• Includes mounting brackets for easy installation
• Ignition protection design to prevent potential overheating damage

Power & Efficiency

The Apollo amplifiers are designed to produce impressive power with less drain on your battery, providing 150-watt RMS per channel.

Easy Tune Feature

These amplifiers use the Easy Tune feature, which automatically regulates audio settings to ensure quality sound without manual adjustments.

Less Distortion

Designed with minimal distortion and noise, providing high-quality audio even at higher volumes.

LED Indicators

Indicator lights show electrical issues such as shorts and temperature at a glance.

Mounting Brackets

Includes mounting brackets for easy installation on board.

Ignition Protected

Designed with ignition protection to prevent potential damage from overheating.

Conformal-Coated PCBS

The amplifier’s circuit board is coated to provide extra protection from marine elements.

2 OHM Stable

Connect up to two speakers per channel, increasing setup options.

Fusion True-Marine Design

Tested to a high level of protection against salt fog, temperature, vibration, and UV, ensuring durability season after season.

In the Box:

• Apollo 6-channel amplifier
• Mounting bracket
• Power connector
• Three speaker connectors with high-power mode adapters
• Four 8-gauge, flat-head self-tapping screws
• Four 8-gauge, pan-head self-tapping screws (for mounting bracket)
• Four screw covers
• Fuse holder
• Mounting template
• Installation instructions
• ISPI

Specifications:

• Physical Dimensions without Bracket (L x W x H): 11.69" x 7.06" x 1.75" (297 x 180 x 45 mm)
• Physical Dimensions with Bracket (L x W x H): 11.69" x 7.06" x 2.13" (297 x 180 x 50 mm)
• Weight: 5.95 lb (2.7 kg)
• Water Rating: IPX2
• Amplifier Class: Class-D
• CEA-2006 Power Rating: 150 watt RMS x 6 at 14.4 V input - 4 ohm < 1% THD
• Total Rated Power Output, 2 Ohm (Watts): 290 watt RMS x 6 at 14.4 V input - 2 ohm < 1% THD
• Total Rated Power Output, 4 ohm Bridged (watts): 580 watt RMS x 3 at 14.4 V input - 4 ohm Bridged < 1% THD
• Peak Power (watts): 1800 watts
• Input Sensitivity: 1.6 V RMS
• Input Impedance: 22k ohm
• Operating Voltage: 10.8 V - 16 V DC
• Current Draw, in Standby/off Using Amplifier on Wire: < 5 mA at 14.4 V input
• Current Draw, On, No Audio: < 1.32 A at 14.4 V input
• Fuse Rating: 125 A electronic fuse (no replacement necessary)
• Power-Cable Fuse Model and Rating: Bussmann BK/AMI-030 30 A fast-acting
• Ignition Safety Protected (SAE J1171)
