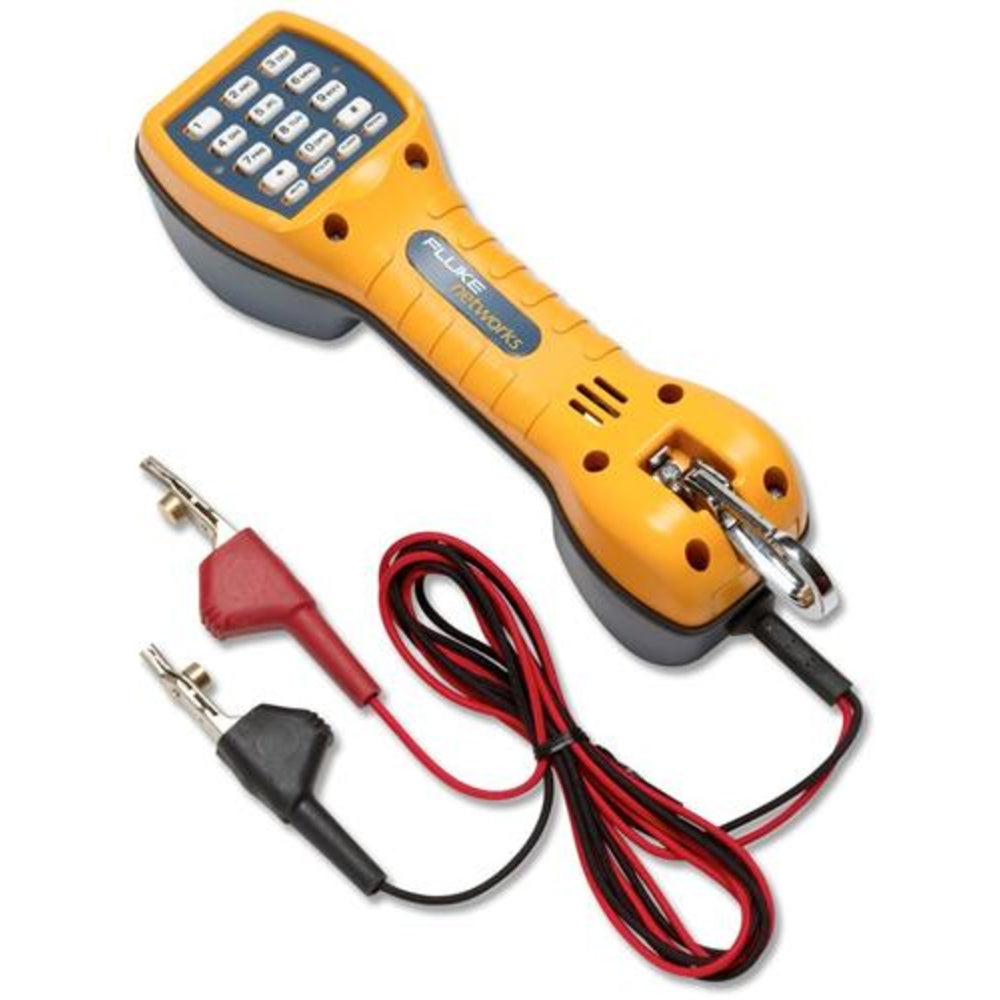

Fluke 30800-009 TS30 Butt Set with Angled Bed of N

The Fluke 30800-009 TS30 Butt Set with Angled Bed of N is a high-quality test set designed for professionals in the telecommunications industry. This test set offers a range of features that make it an essential tool for technicians, including:

• High impedance DataSafeTM operation in monitor mode
• DropSafeTM reliability passes a 20-foot drop test
• RainSafeTM protection in severe weather conditions
• Mute switch for convenient operation
• Last number redial for quick call-backs
• Audible ringer for easy call identification

The TS30 Test Set is recognized as the industry standard for basic test sets, providing superior quality at an affordable price. Its high impedance Monitor for DataSafe operation allows technicians to clip onto a line in Monitor mode without disrupting existing traffic.

With Fluke Networks' unsurpassed RainSafe protection standards and DropSafe durability, this test set is built to withstand tough environments. Its solid weatherproofing enhances resistance to severe weather conditions.

Electrical Specifications

• Return Loss: >14 dB (ref 600 O)
• Line Current Range: 15 mA to 120 mA
• Resistance to Continuous Current (Talk Mode): 275 O typical at 20 mA
• Monitor Mode Impedance: >120,000 O 300 Hz to 3400 Hz

Pulse Dial Output

• Pulsing Rate: 10 pps
• Open/Close Ratio: 60/40
• Inter-digit Interval: 800 ms %, -10%
• Resistance During Pulse Open: > 200,000 O
• Protection Against Alternating Current Overvoltage: The TS30 survives up to 250 Vrms across its test leads.
• Peak Acoustic Output of the Receiver: <120 dBspl
• DTMF Output Tone Frequencies Tone Frequency Error: per ITU-T Q.23 ±1.5% Maximum

Tone Level

• High Group Low Group: -4 dBm (into 600 O) -6 dBm (into 600 O)
• High vs Low Tone Difference: 2dB +1db

Last Number Redial (Tone/Pulse)

• Memory Capacity Memory Retention: 23 digits 8-minutes nominal
• Flash Duration: 600 ms ±100 ms
• Ringer Loudness: > 70 dBA at 1 meter
• Ringer Equivalent (REN): 0.14

The Fluke 30800-009 TS30 Butt Set with Angled Bed of N comes in a vibrant yellow color and features the following dimensions: 72 x 255 x 85. It can operate in temperatures ranging from -20 to 60 degrees Celsius and has an operating relative humidity range of 5% to 95%. The weight of the product is 476 grams, and it can be stored in temperatures from -40 to 66 degrees Celsius.

Learn More

• Fluke Corporation on Wikipedia
• Telecommunications on Wikipedia

Product: Fluke 30800-009 TS30 Butt Set with Angled Bed of N

Brand: Fluke Electronics

Model: 30800009
