Em-Trak B954 Class B AIS Transceiver 5W SOTDMA - WiFi, Bluetooth & VHF (430-0015)

The Em-Trak B954 Class B AIS Transceiver is the most feature-rich high transmit power (5W SOTDMA) AIS transceiver in the B900 range. It combines Wi-Fi & Bluetooth for seamless wireless connectivity and AIS data streaming to any mobile device, PC or wearable. It also has an integrated VHF antenna splitter to enable your transceiver to share your existing VHF antenna without any loss of performance.

The B954 is certified AIS Class B and has a 5W SOTDMA power output. It has global certification from USCG, FCC, Canada, and Europe. It features the SRT-AIS Transceiver Engine for superlative proven performance and the FLEXI-FIT bracket system for easy, convenient, and secure installation. The B954 also has an internal high-performance GPS receiver and antenna (external antenna optional).

The Em-Trak B954 is lightweight and completely weatherproof, delivering the very best AIS receive and transmit performance with increased range and transmission priority. It has ultra-low power consumption and is guaranteed connectivity and interoperability with any app, chart plotter, smartphone, tablet, or PC. It has NMEA 0183 & NMEA 2000 data interfaces and automated health and performance monitoring.

Features:

• Certified AIS Class B – 5W SOTDMA
• Integrated WiFi and Bluetooth
• Integrated VHF antenna splitter
• Global certification - USCG / FCC / Canada / Europe
• SRT-AIS Transceiver Engine for superlative proven performance
• FLEXI-FIT bracket system for easy, convenient, and secure installation
• Internal high-performance GPS receiver and antenna (external antenna optional)
• Water, pressure spray, and damp proof (IPx6, IPx7 certified)
• Protected from vibration, shock, and extreme temperatures
• Small and lightweight
• Ultra-low power consumption – in class
• Guaranteed connectivity and interoperability with any app, chart plotter, smartphone, tablet, or PC
• NMEA 0183 & NMEA 2000
• Automated health and performance monitoring
• Silent mode (transmit-off) function
• Enhanced RF screening to protect against electromagnetic interference
• Built-in power surge protection
• Fail-safe VHF radio operation

Physical & Environmental Specifications:

• Size (H x W x D): 150 x 115 x 45mm
• Weight: 425kg
• Operating temperature: -25°C to +55°C
• Storage temperature: -25°C to +70°C
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V - 31.2V DC
• Average current (at 12V): 280mA
• Average current (at 12V) (wireless off): 245mA
• Peak current: 2.5A
• Average power consumption (at 12V): 3.4W
• Average power consumption (at 12V) (wireless off): 2.9W
• Galvanic isolation: NMEA 0183 inputs only, NMEA 2000, VHF antenna port

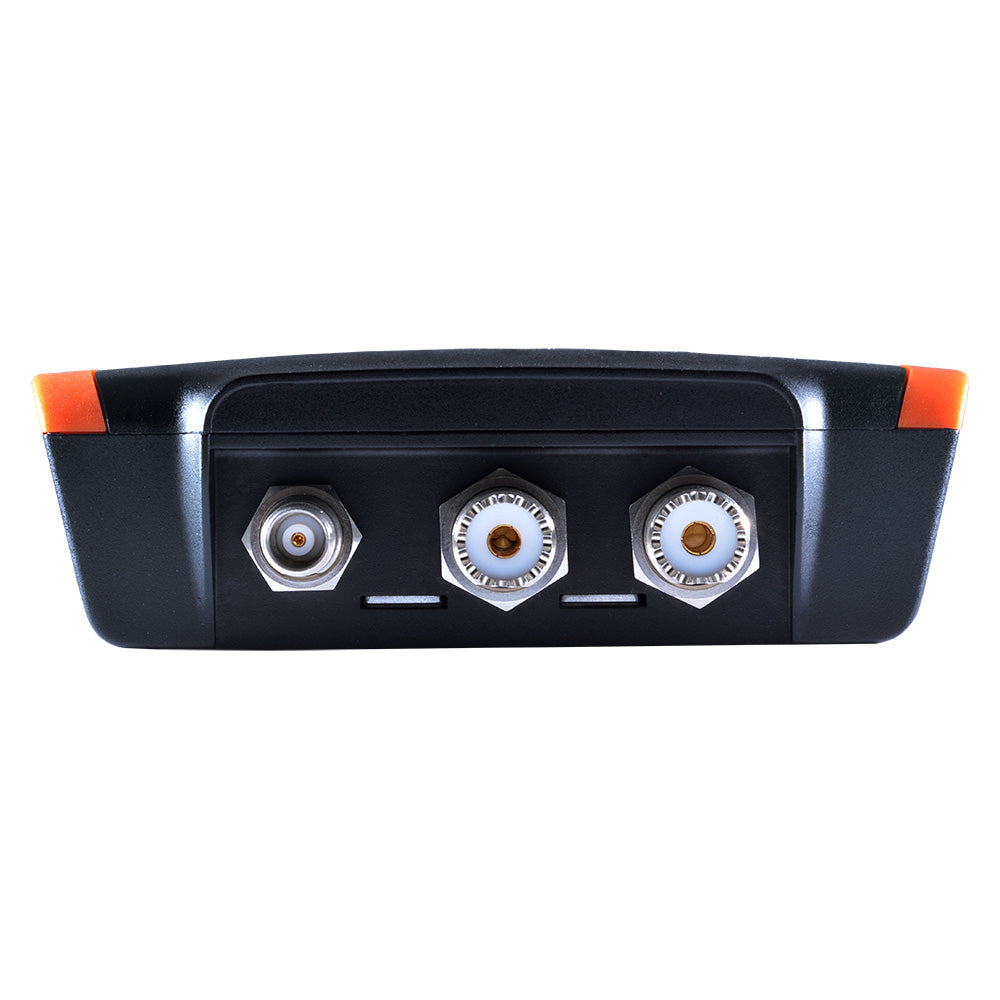

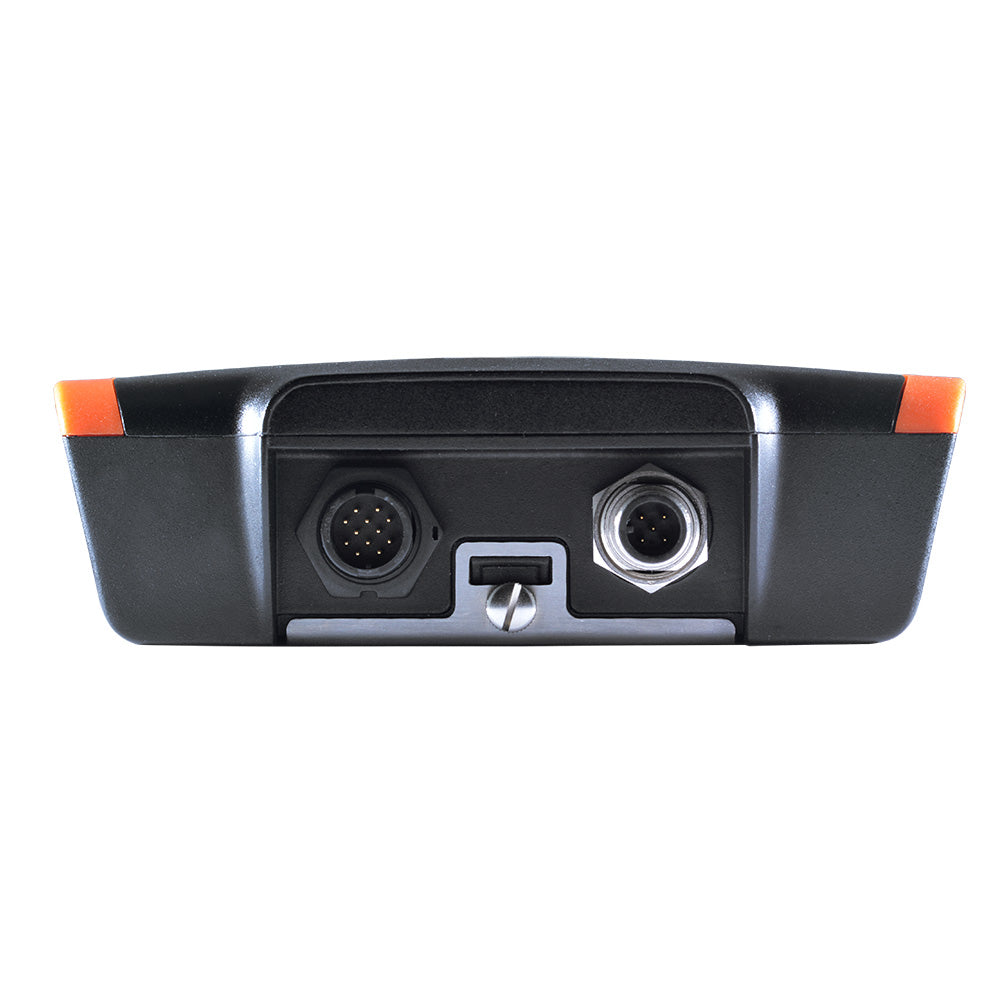

Connectors:

• VHF antenna: SO-239
• VHF radio: SO-239
• GNSS: TNC
• Power: 12-way circular multipole
• NMEA 2000: 5-way Micro-C connector
• USB: USB Micro-B

Data Interfaces:

• NMEA 0183: 2 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• USB: PC virtual com port for NMEA 0183 data
• Wi-Fi: IEEE 802.11 (a/b/g), client and access point mode supported (2 connections in access point mode)
• Bluetooth: BT Classic 4.0, 7 concurrent connections

Standards Compliance:

• AIS standards: IEC 62287-2 Ed. 2, ITU-R M.1371.5

Product: Em-Trak 430-0015 B954 Class B Ais Transceiver 5W Sotdma Wifi Bluetooth And Vhf

Brand: Em-Trak

Model: 430-0015

Shipping Weight: 1.80 lb

Shipping Height: 6.00 in

Shipping Width: 7.00 in

Shipping Length: 7.00 in
