Em-Trak 425-0012 A200 Class A AIS Transceiver - High-performance Marine Safety Solution

The Em-Trak 425-0012 A200 Class A AIS Transceiver is a high-performance marine safety solution that is both SOLAS and Inland Waterway certified. It offers superior performance through its advanced, next-gen technology.

Engineered for even the harshest marine environments, the A200 has undergone extensive testing by independent experts to ensure it is waterproof and unaffected by extreme temperatures, shock, and vibration. This ensures reliable performance and longevity.

The A200 is easy to install and seamlessly connects to your ECDIS and other bridge systems. It delivers comprehensive AIS functionality, including alerts, target filters, vessel information lists, real-time weather, and more.

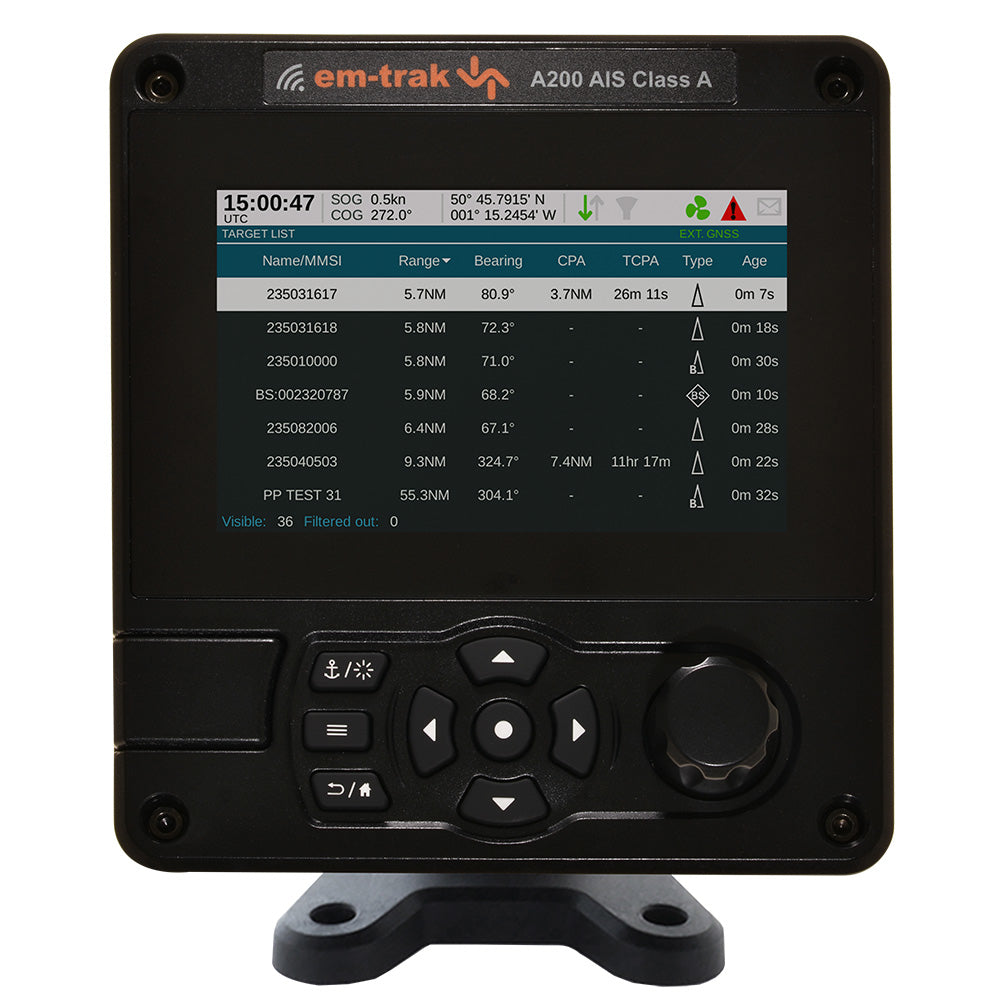

Featuring an integrated color display, the A200 plays a vital role in tracking, collision avoidance, and CPA when vessels are in busy port areas. Its advanced performance, trusted reliability, and competitive price make it the best value AIS Class A in the market.

Features:

• IMO SOLAS certified AIS Class A
• EU Inland Waterway certified ruggedized and impervious to extreme environments - water (IPx6, IPx7), dampness, shock, vibration, and temperatures
• High-performance latest generation GPS
• Suitable for internal or permanent external installation
• Robust ergonomic button and rotary-knob user interfaces with configurable multi-lingual menu options
• Integrated high-definition color display with night mode
• ENC chart (C-Map) with configurable AIS target overlay
• Silent mode - AIS transmissions are stopped, all AIS messages continue to be received
• Integrated WiFi
• Pilot plug cable and junction box accessory options

Physical & Environmental Specifications:

• Size (H x W x D): 152 x 165 x 95mm
• Weight: 1.1kg
• Operating temperature: -25&degC to +55&degC
• Storage temperature: -25&degC to +70&degC
• Ingress protection: IPx6 and IPx7

Electrical Specifications:

• Supply voltage: 12V or 24V DC
• Supply voltage range: 9.6V - 31.2V DC
• Average current (at 12V): 520mA
• Peak current: 6A
• Average power consumption (at 12V): 6.2W
• Galvanic isolation: NMEA 0183, NMEA 2000, power supply, VHF antenna port

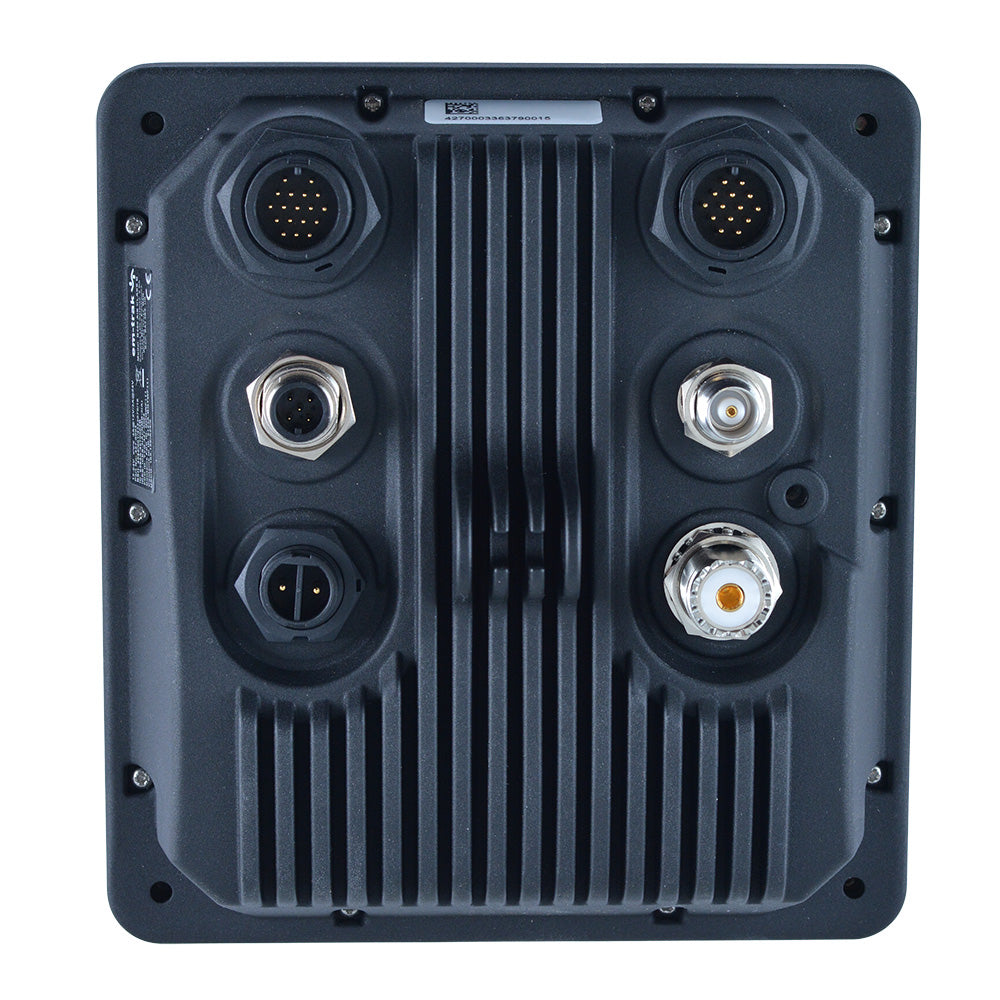

Connectors:

• VHF antenna: SO-239
• GNSS: TNC
• Power: 2-way circular multipole
• NMEA 0183/silent mode/blue sign: 14-way circular multipole
• NMEA 0183/alarm relay: 18-way circular multipole
• NMEA 2000: 5-way Micro-C connector

Data Interfaces:

• NMEA 0183: 3 x input ports, 3 x bi-directional ports
• NMEA 2000: NMEA 2000 Ed 3.101, LEN=1
• WiFi: IEEE 802.11 (a/b/g), client mode, and access point mode supported. (5 connections in access point mode)

Standards Compliance:

• AIS standards: IEC 61993-2 Ed. 3
• Product safety standards: EN60950-1 2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
• Environmental standards: IEC 60945 Ed. 4
• Serial data interface standards: IEC 61162-1 Ed 5.0, IEC 61162-2 Ed 1.0
• NMEA 2000: NMEA 2000 Ed 3.101
• GNSS performance standards: IEC 61108-1 Ed 2.0, IEC 61108-02 Ed 1.0

GNSS:

• Systems supported: GPS, GLONASS, BeiDou, Galileo (two of any combination, three including GPS, Galileo)
• Channels: 72
• Internal/external antenna: External only
• Time to first fix from cold start: 26s

VHF Transceiver:

• VDL access scheme: SOTDMA

Product: Em-Trak 425-0012 A200 Class A AIS Transceiver - High-performance Marine Safety Solution

Brand: Em-Trak

Model: 425-0012

Shipping Weight: 6.30 lb

Shipping Height: 5.00 in

Shipping Width: 10.00 in

Shipping Length: 15.00 in
