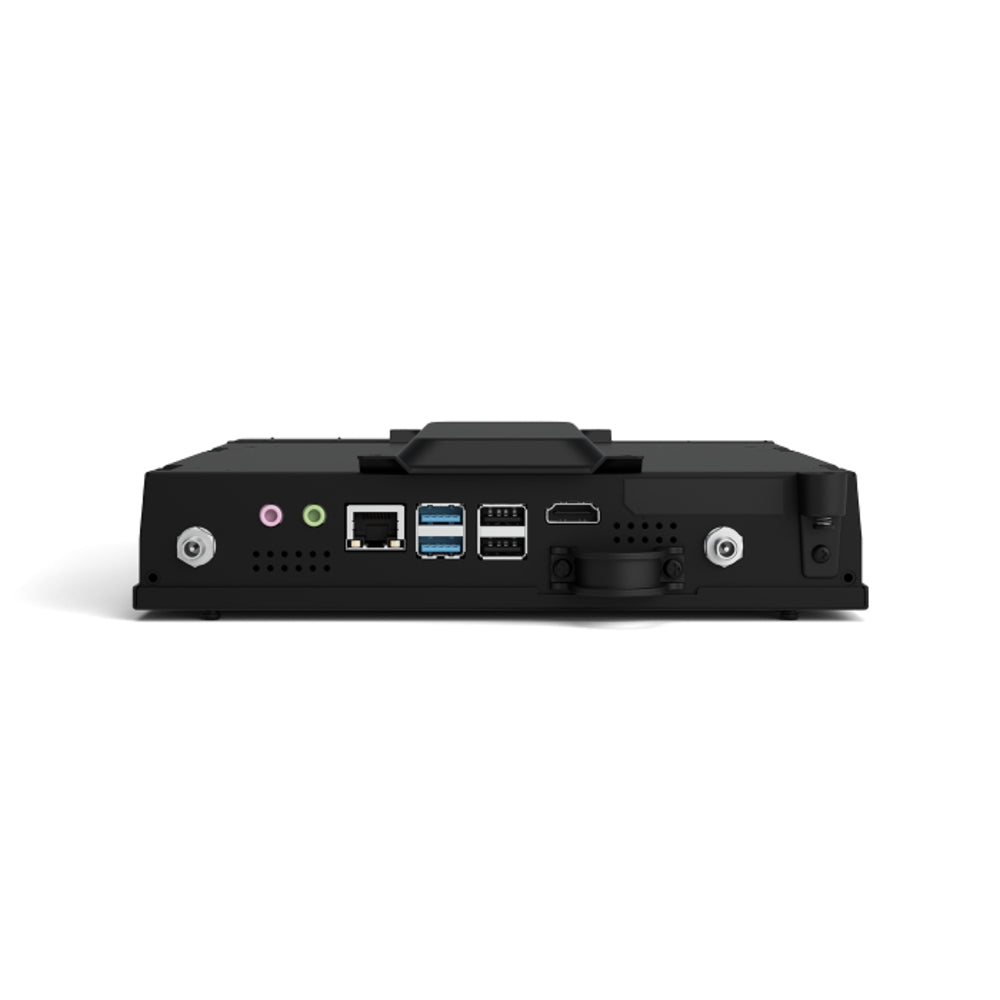

Elo Touch Solutions E228087 Id3 Module Series I7 HD Graphics 630 8 GB 256 SSD

We are pleased to announce the family of Elo Computer Modules (ECM) featuring the Intelr Core 7th Generation CPUs and enhanced graphics engine. Offered with Intel i5 processors for Microsoft Windowsr 10 or no operating system, the ECMs can help enable customer engagement and immersive brand experiences by adding an exciting dimension to traditional broadcast digital signage - the power of touch. The commercial grade computer modules transform Elo's 6553L into a powerful platform with compatibility to most content management servers.

Smaller Form Factor
With dimensions of 11.07x8.2x1.7 the ECMG4 form factor is 47% smaller than the previous model, delivering a lower cost, lower energy consumption computer module that's easier to install and maintain.

Easy Installation
The Elo IDS Computer Modules slide into the back of the touchscreen display to deliver the industry's thinnest commercial grade all-in-one large format touchcomputers. Field installation is easy with no external cables required. AC power, video and USB signals pass between the computer module and the Elo IDS touch display via an internal docking connector.

Collaboration Ready
Pair the flexibility of Elo's 6553L Interactive Board with a seamless, bring-your-own-device, content sharing software to offer employees and corporations countless business benefits. Elo's ECMG4 comes conferencing ready with the DisplayNote Montage Software included. From increased efficiency to controlled costs - start connecting teams and information in real time to empower better, faster, more reliable decision making and improving the way collaboration works.

Built-to-Last
The Elo Computer Modules deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 4 or 5-years. We design and build the complete solution, with touch integrated from the start.

Features:

• Number of antenna connectors: 2
• Motherboard chipset: Intel H110
• BIOS type: AMI
• Processor frequency: 2.7
• Processor family: Intel Core i5-7xxx
• Processor cores: 4
• Processor boost frequency: 3.3
• Processor cache: 6
• Processor cache type: Smart Cache
• System bus rate: 8
• Processor threads: 4
• Product color: Black
• Processor model: i5-7500T
• Operating system installed: Windows 10
• Width: 281.1
• Depth: 43
• Height: 208.2
• Weight: 2100
• Package depth: 350
• Package height: 520
• Package weight: 3300
• Package width: 730
• Certification: UL/cUL, CB, FCC, CE, AS, NZS, VCCI
• Operating temperature (T-T): 0 - 40
• Storage temperature (T-T): -30 - 60
• Operating relative humidity (H-H): 20 - 80
• Storage relative humidity (H-H): 10 - 90
• Line-out: Y
• Microphone in: Y
• Ethernet LAN (RJ-45) ports: 1
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• HDMI ports quantity: 1
• Bluetooth: Y
• Bluetooth version: 5.0
• Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
• Ethernet LAN: Y
• Wi-Fi: Y
• Discrete graphics adapter: N
• On-board graphics adapter model: Intel HD Graphics 630
• On-board graphics adapter: Y
• Solid-state drive capacity: 256
• Card reader integrated: N
• Total storage capacity: 256
• Storage media: SSD
• Number of storage drives installed: 1
• Memory slots: 2x SO-DIMM
• Memory clock speed: 2400
• Internal memory: 8
• Internal memory type: DDR4-SDRAM
• Maximum internal memory: 64
• Memory layout (slots x size): 1 x 8
• Bus type: DMI3

Learn More

For more information, visit the Intel Core Wikipedia page.

Product: Elo Touch Solutions E228087 Id3 Module Series I7 Hd Graphics 630 8 Gb 256 Ssd

Brand: Elo

Model: E228087

Shipping Weight:

Shipping Height:

Shipping Width:

Shipping Length:
