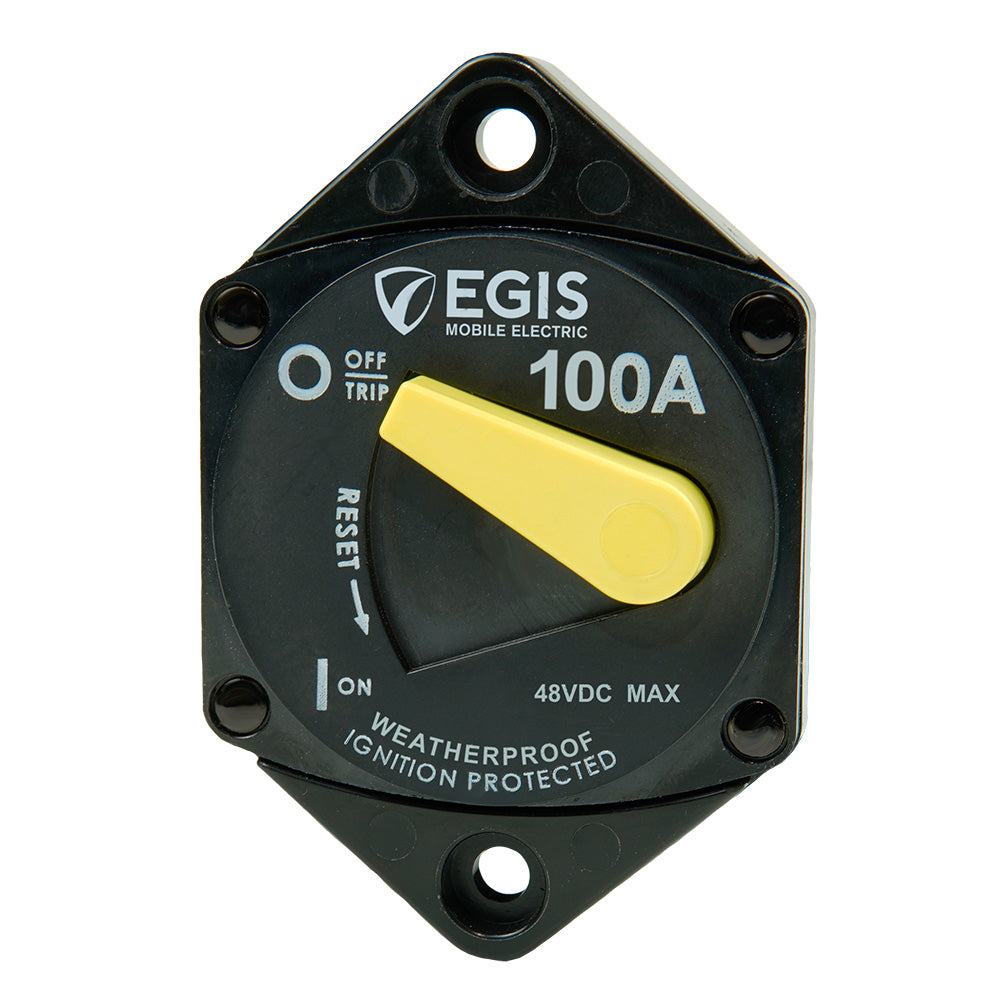

Egis Mobile Electric 4707-100 100A Panel Mount Circuit Breaker

Overview:

The Egis Mobile Electric 4707-100 100A Panel Mount Circuit Breaker is a reliable and robust circuit breaker designed to protect electrical circuits from short circuits and thermal overloads. It features manual circuit switching for live load switching, a weatherproof case for protection from the environment, and high-voltage circuit interrupt current capability. This circuit breaker is ideal for use in a variety of applications where circuit protection and switching are essential.

Features:

• Protects electrical circuits from short-circuit events and over-current loads
• Automatic Circuit Protection and Manual On/Off Switching for dual functionality
• Allows for circuit isolation and maintenance of load circuits
• IP66 sealed against dust and water intrusion
• High voltage (48 Vdc) rating
• High electrical and manual switching endurance
• High interrupt current for large paralleled battery banks
• 4-year warranty

Specifications:

• Continuous Current Amps: 100
• Max Voltage: 48
• Cycling Endurance: 2,000 cycles
• Interrupt Current at 14 VDC: 5,000 Amps
• Interrupt Current at 28 VDC: 3,000 Amps
• Ingress Protection Rating: IP66

Focal Features:

ON/OFF High Visibility Controls: Sealed against dust and moisture penetration. High-temperature rating for all installation locations.

Circular Design: Compatible with circular cutout for easy panel installation.

Stainless Steel Hardware / Serrated Flange Nuts: Corrosion and vibration resistance for harsh environment applications.

Proudly Made in the USA: Made in the USA of high-quality components.

Learn More:

• Learn more about Circuit Breakers on Wikipedia

Product: Egis Mobile Electric 4707-100 100A Panel Mount Circuit Breaker

Brand: Egis Mobile Electric

Model: 4707-100

Shipping Weight: 0.40 lb

Shipping Height: 3.00 in

Shipping Width: 3.00 in

Shipping Length: 4.00 in
